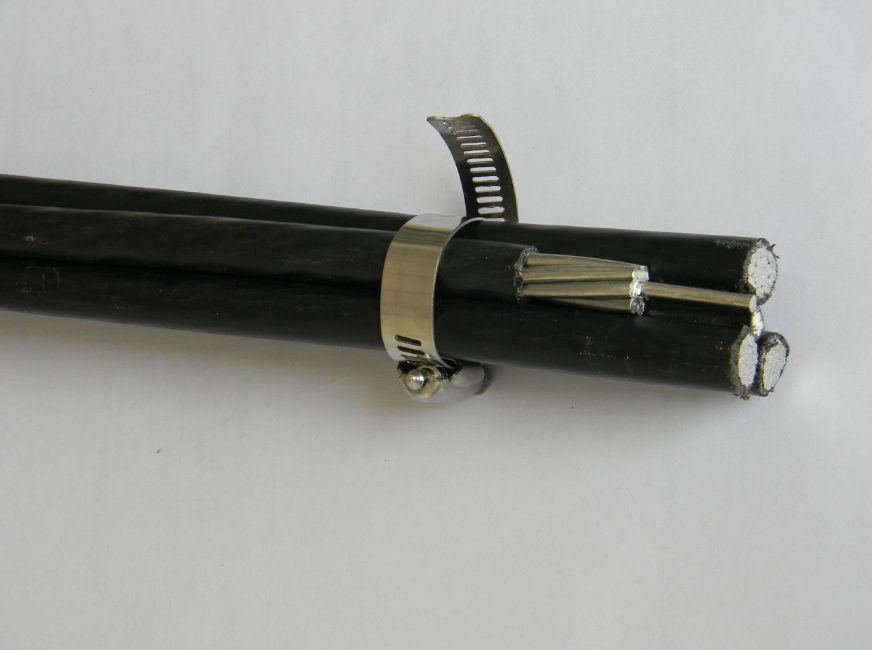

The 0.6/1kV Aerial Bundled Cable (ABC) is a high-performance overhead power distribution solution engineered to meet Standard NFC 33-209, along with global benchmarks like BS 7870-5, GB/T 12527, and IEC 60502. Its core strength lies in a precision-crafted duplex structure, combining XLPE/PE/PVC insulation (optimized for UV resistance and extreme weather) with aluminum (Al) phase conductors (16–150 mm² cross-section) and aluminum alloy (AAAC) neutral messenger conductors. This design delivers exceptional mechanical strength—supported by a minimum breaking load of 1.9 kN (for 16 mm² conductors) up to 20.5 kN (for 70 mm² messenger conductors)—and long-term durability in harsh environments.
Beyond standard configurations, we offer customized ABC cable solutions tailored to specific project needs, including conductor cross-sections, insulation materials, and reel lengths (100–1,000m on wooden drums or bespoke packaging). Our OEM capabilities also enable branding and technical adjustments to align with client requirements, making the cable suitable for urban grids, rural electrification, street lighting, and industrial overhead networks.
| Conductor Area (mm²) | Number of Wires | Max. DC Resistance (Ω/km) | Conductor Diameter (mm) | Min. Breaking Load (kN) | Overall Diameter Range (mm) |
|---|---|---|---|---|---|
| 16 | 7 | 1.91 | 4.6–5.1 | 1.9 | 7.0–7.8 |
| 25 | 7 | 1.20 | 5.8–6.3 | 3.0 | 8.6–9.4 |
| 35 | 7 | 0.868 | 6.8–7.3 | - | 10.0–10.9 |
| 54.6 (Messenger) | 7 | 0.63 | 9.2–9.6 | 16.6 | 12.3–13.0 |
| 70 (Messenger) | 7 | 0.50 | 10.0–10.2 | 20.5 |
0.6/1kV Aerial Bunched Cable(ABC)(Standard NFC33-209)
Model No. | Phase No./Dia. | XLPE | Neutral No./Dia. | XLPE | EP No./Dia. | XLPE |
mm | mm | mm | ||||
3*35+54.6AAAC+16 3*70+54.6AAAC+2*16 | 7/2.52 12/2.72 | 1.60 1.80 | 7/3.15 7/3.15 | 1.60 1.60 | 7/1.70 7/1.70 | 1.20 1.20 |
The XLPE/PE/PVC insulation blocks UV radiation, moisture, and temperature fluctuations (-1℃ to +40℃), ensuring reliable performance in coastal (high salinity) and tropical regions (up to 2200m altitude, 90% humidity).
AAAC neutral messenger conductors enhance tensile strength and corrosion resistance, reducing maintenance costs and extending the cable’s service life.
Low DC resistance (as low as 0.50 Ω/km for 70 mm² conductors) minimizes energy loss, while high current-carrying capacity (up to 306 A for 150 mm² conductors, at 30℃ ambient temperature) supports stable power supply.
Compact bundle diameter (e.g., 22 mm for 3×16+25 mm² configurations) simplifies installation and reduces wind resistance, ideal for dense urban areas.
Versatile designs (self-supporting LV-ABC lines, LV-ABC with bare neutral messenger, MV-ABC with insulated neutral messenger) adapt to diverse overhead scenarios.
Lightweight aluminum conductors lower transportation and installation costs compared to copper alternatives, without compromising performance.
Urban Power Grids: Perfect for distributing power in cities, where space constraints and weather resilience are critical (e.g., street lighting, residential complexes).
Rural Electrification: Navigates remote, harsh terrains to deliver electricity to villages, leveraging its corrosion resistance and mechanical strength.
Industrial Zones: Handles high mechanical stress and heavy load demands in factories, warehouses, and industrial parks.
Tropical & Coastal Areas: Withstands high humidity, salt spray, and thunderstorms (up to 180 thunderstorm days/year), meeting the needs of coastal towns and tropical regions.
The cable is strictly for overhead use and not allowed to be buried (even in conduits) to preserve insulation integrity and mechanical performance.
Our team provides on-site technical assistance and installation guidance to ensure compliance with project standards and safety protocols.
As a China-based manufacturer with years of experience in electrical systems, we specialize in ABC cable production, R&D, and technical services. All products undergo rigorous testing to meet Standard NFC 33-209 and global certifications, guaranteeing quality and compliance.
We don’t just offer off-the-shelf cables—our customized solutions let you select conductor size, insulation type, and packaging. Our OEM capabilities also include branding, technical tweaks, and documentation alignment to match your business needs.
From pre-sales providing catalogs and technical specs to post-sales support (on-site assistance, installation guidance, and post-installation testing), we ensure a smooth project journey.
Global reach: We serve clients worldwide, with offices in Mainland China (Yixing City) and Hong Kong, enabling timely communication and logistics.
It meets Standard NFC 33-209 (the core European standard for ABC cables) and international standards like BS 7870-5, GB/T 12527, and IEC 60502. This ensures compatibility with projects requiring European or global certifications.
Yes. We offer customized reel lengths (100–1,000m) and insulation options (XLPE, PE, PVC) based on your project’s environmental and technical needs. Our team will confirm feasibility and provide a tailored quote.
Absolutely. The XLPE/PE insulation and AAAC neutral messenger conductors resist salt spray and corrosion, making the cable ideal for coastal regions with heavy saline conditions.
Yes. We offer on-site technical assistance, step-by-step installation guidance, and post-installation testing to ensure the cable is installed correctly and performs optimally.
