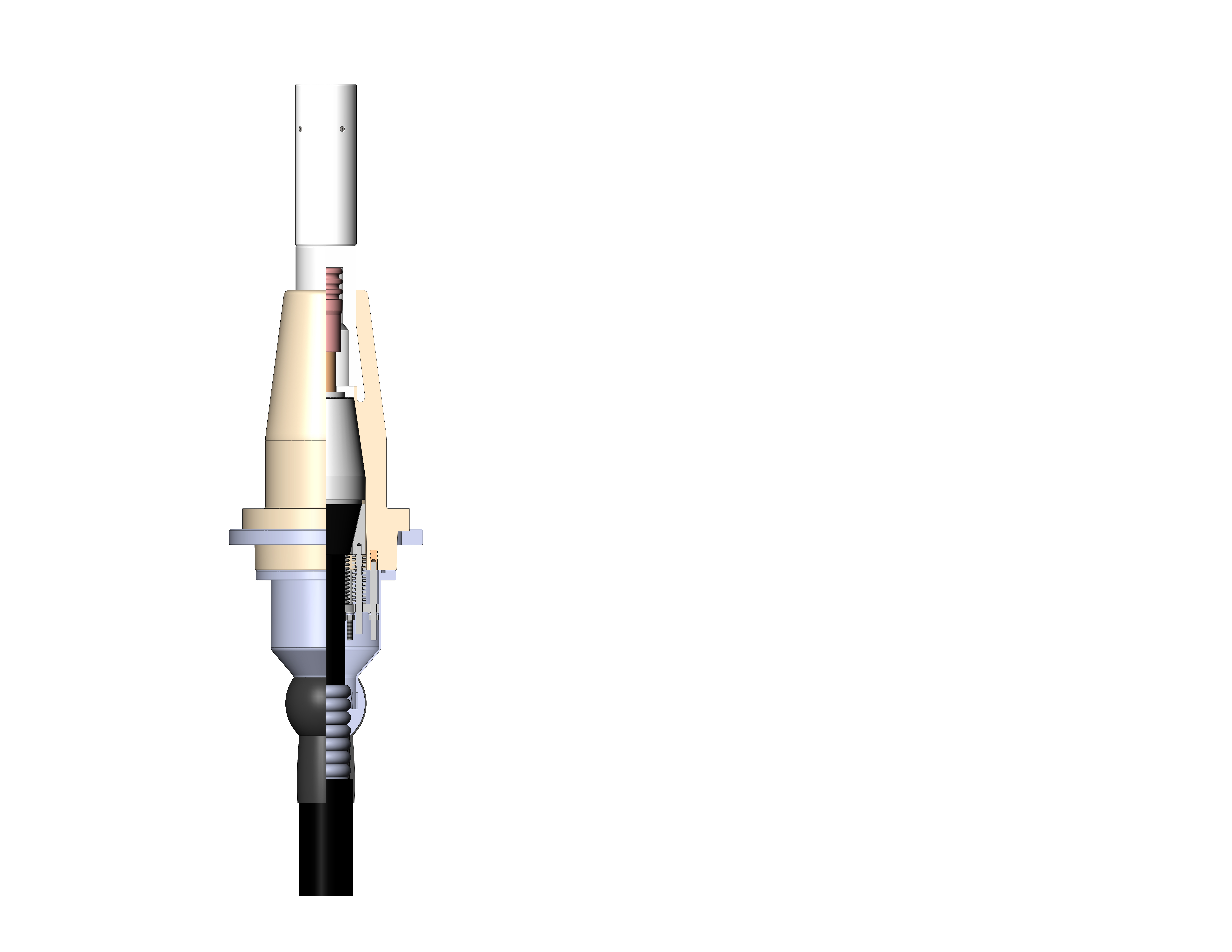

| 1. Pluggable rod 2. Locking sleeve 3. Stress cone 4. Epoxy bushing 5. Cone support 6. Spring attachment 7. Tail pipe 8. Cable |
| Size mm | 48/66kV | 64/110kV | 80/138kV | 127/220kV |
| L Short type | 310 | 470 | 470 | 620 |
| A Short type | 900 | 1020 | 1020 | 1260 |
| L Long type | 583 | 757 | 757 | 960 |
| A Long type | 1200 | 1310 | 1310 | 1600 |
| No. | Test Name | Code |
| 1 | Routine test | R |
| 2 | Sampling test | S |
| 3 | Type test | T |
| 4 | Pre-identification test | P |
| 5 | Additional test | A |
| Item | 66kV | 110kV | 220kV |
| Partial discharge | 72kV, partial discharge not more than previously carried out items | 96kV, partial discharge not more than previously carried out items | 190kV, partial discharge not more than previously carried out items |
| Power frequency withstand voltage | 120kV/30min (joint main body 60min, no flashover no breakdown) | 160kV/30min (joint main body 60min, no flashover no breakdown) | 318kV/30min (joint main body 60min, no flashover no breakdown) |
| Seal test | 0.25±0.01MPa/1h for sealing fittings, porcelain bushing, composite bushing, no leakage | ||
| 0.6~0.7MPa/1h for epoxy bushing, no leakage | |||
| Appearance test | No damage, no cracking and other defects that affect the quality and appearance | ||
The 132kV GIS (Gas Insulated Switchgear) Termination Pluggable Dry Type Cable Accessories are engineered to provide safe and efficient terminations for high-voltage cable connections in GIS applications. These accessories offer advanced insulation and sealing technology to ensure the reliability and longevity of high-voltage systems, making them ideal for substations, industrial applications, and power distribution networks.
Key Features
High Voltage Rating
Specifically designed for 132kV applications, providing optimal performance for high-voltage terminations.
Suitable for both medium and high-voltage cables, ensuring safe and efficient connections.
Pluggable Design
The innovative pluggable design simplifies installation and maintenance, allowing for easy connection and disconnection of cables without the need for specialized tools.
Reduces installation time and operational downtime, ensuring quick and reliable service restoration.
Dry Type Insulation
Utilizes dry type insulation technology, eliminating the need for liquid insulation, which reduces the risk of leaks and contamination.
Ensures superior electrical insulation and enhances the safety of the termination point.
Gas Insulated Switchgear Compatibility
Compatible with GIS systems, offering a compact and efficient solution for high-voltage cable terminations in confined spaces.
Designed to integrate seamlessly with GIS panels, contributing to the overall safety and reliability of the system.
Durability and Environmental Protection
Resistant to extreme weather conditions, UV exposure, and temperature fluctuations.
Protects cables from environmental factors, ensuring long-lasting performance and minimal maintenance.
Applications
Gas Insulated Switchgear (GIS) Substations
Ideal for cable terminations in GIS substations where space is limited, and high-voltage systems are in operation. The pluggable dry-type design provides a safe, efficient solution for connecting cables to GIS panels.
Power Distribution Networks
Ensures reliable cable terminations for power distribution systems, maintaining high-voltage performance and minimizing downtime in grid operations.
Renewable Energy Projects
Used in solar, wind, and hydroelectric installations to maintain secure cable connections in high-voltage environments, contributing to energy efficiency and system reliability.
Industrial Power Systems
Suitable for industrial applications that require robust and secure high-voltage cable terminations, ensuring uninterrupted power flow and safety in manufacturing and processing facilities.
Advantages of the 132kV GIS Termination Pluggable Dry Type Cable Accessories
Quick and Easy Installation
The pluggable design simplifies the installation and maintenance process, significantly reducing the time required for setup and minimizing operational disruption.
High Safety Standards
The dry type insulation technology reduces the risk of leaks and contamination, while providing superior electrical insulation to prevent faults and failures.
Long-Term Reliability
Designed to withstand extreme environmental conditions, ensuring a long service life and reduced maintenance needs.
Resistant to corrosion, moisture, and temperature changes, making them ideal for outdoor installations.
Compact and Space-Efficient
The compact design is optimized for use in GIS applications, where space is at a premium, without compromising on performance or safety.
Why Choose 132kV GIS Termination Pluggable Dry Type Cable Accessories?
The 132kV GIS Termination Pluggable Dry Type Cable Accessories provide an advanced, reliable, and cost-effective solution for high-voltage cable terminations. With their easy installation, high safety standards, and exceptional durability, these accessories are ideal for ensuring long-term performance in critical power infrastructure systems.
Contact us today for more information or to customize the ideal solution for your cable termination needs!
