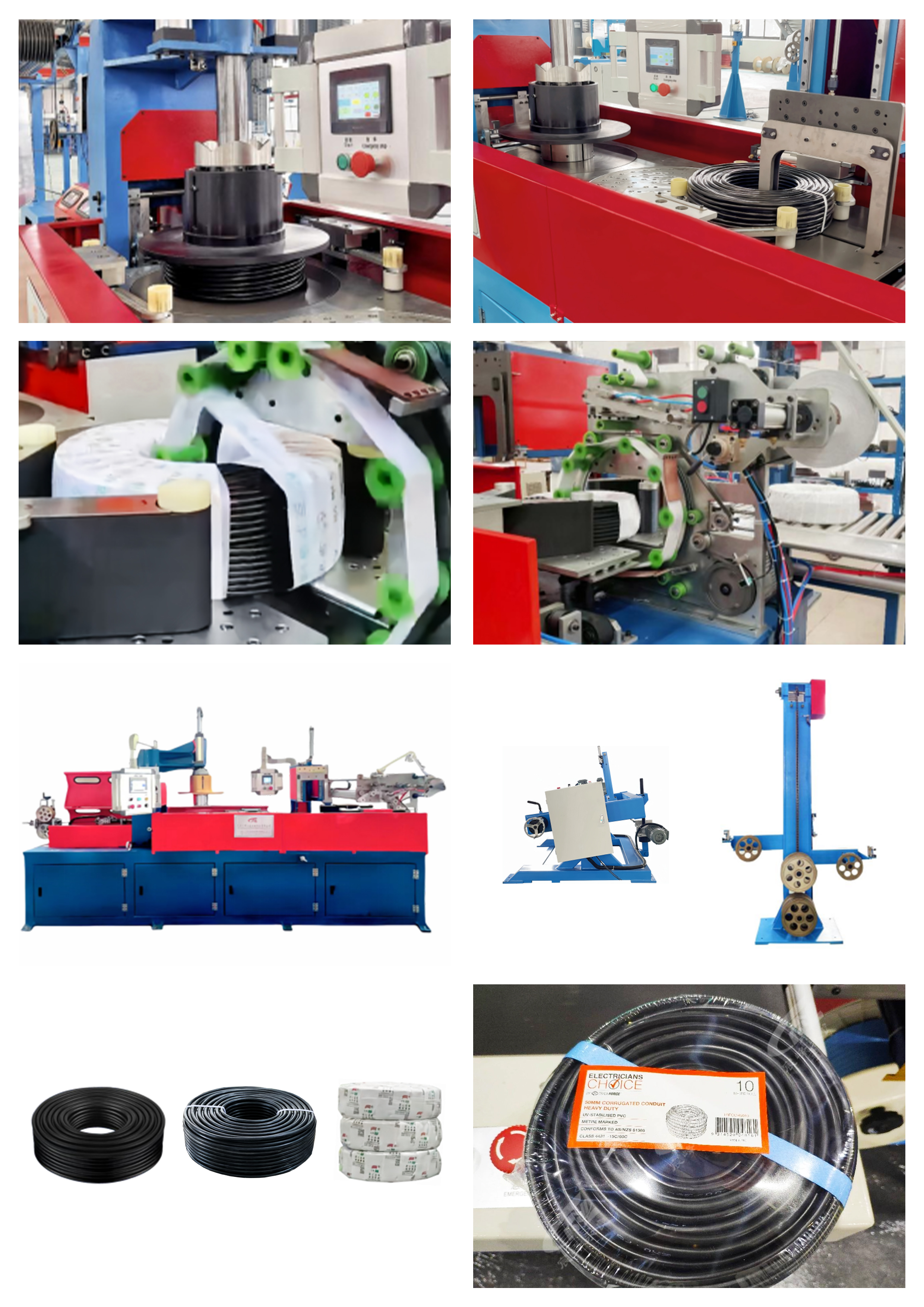

The 1860 Automatic Coiling Belting and Shrink Packing Machine is a state-of-the-art industrial packaging solution designed to streamline the end-of-line processing for long cylindrical products such as cables, pipes, hoses, and wires. This fully automated system combines three essential functions—coiling, belting, and shrink wrapping—into a single unit, significantly improving packaging efficiency and consistency while reducing labor costs.

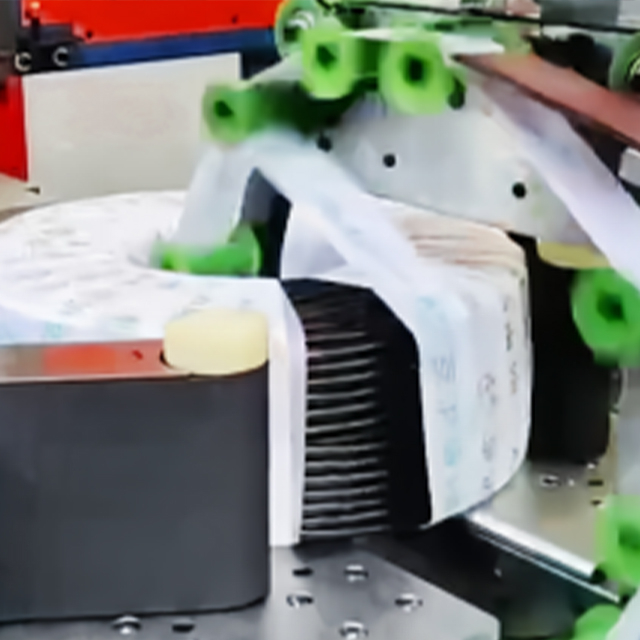

Equipped with a high-precision coiling mechanism, the machine can handle products of various diameters and lengths, forming neat, uniform coils with adjustable tension control. The belting station secures each coil with durable plastic or paper straps, ensuring stability during transportation and storage. Finally, the shrink packing module uses hot air tunnels to apply shrink film tightly around the coiled bundles, providing protection against dust, moisture, and physical damage. The machine features a user-friendly HMI interface for easy parameter adjustment and real-time production monitoring.
Multi-Functional Automation: Integrates coiling, strapping, and shrink wrapping in one compact system, eliminating the need for multiple standalone machines and manual interventions.
High Efficiency: Capable of processing up to 60 coils per minute (depending on product size), significantly increasing output compared to manual or semi-automated methods.
Adjustable Parameters: The machine can be quickly reconfigured to handle different product diameters (10-300mm) and coil lengths, making it suitable for diverse product lines.
Precision Control: Advanced servo motors and sensors ensure consistent coil tightness, strap placement, and shrink film application, minimizing material waste and improving packaging aesthetics.
Safety & Reliability: Equipped with emergency stop buttons, safety guards, and automatic fault detection, the machine complies with international safety standards (CE, OSHA) for worry-free operation.
Cable & Wire Industry: Packages power cables, data cables, and household wires into neat, transportable coils for distribution.
Pipe & Hose Manufacturing: Ideal for packaging PVC pipes, rubber hoses, and industrial tubing, ensuring protection during transit and storage.
Textile & Rope Industry: Processes ropes, cables, and textile rolls, providing secure packaging for shipping to global markets.
Automotive & Electronics: Wraps automotive wiring harnesses and electronic cables, meeting the strict quality and presentation standards of these industries.
Construction Materials: Packages steel wires, plastic pipes, and other long construction materials, reducing logistics costs through efficient palletization.
Q: What types of shrink film does the machine support?
A: It is compatible with common shrink films such as PVC, POF, and PE, with adjustable temperature and speed settings for different film thicknesses.
Q: Can the machine handle irregularly shaped products?
A: While optimized for cylindrical products, minor adjustments can be made for slightly oval or flat profiles; contact our engineering team for custom solutions.
Q: How long does it take to change over between different product sizes?
A: Quick-release mechanisms and digital parameter settings allow for changeovers in less than 10 minutes, minimizing downtime during product switches.
Q: Is the machine suitable for low-volume production?
A: Yes, it can operate in both continuous and batch modes, making it versatile for small runs as well as high-volume manufacturing.
Q: What is the required maintenance interval for the 1860 machine?
A: Routine maintenance includes weekly lubrication of moving parts and monthly inspections of the heating elements, with detailed maintenance guides provided in the user manual.
Parameter | Value |
Max Speed | 300 units/hour |
Package Weight | Up to 25kg |
Coiling Diameter | 50mm–200mm |
Shrink Tunnel Temp | 80°C–250°C |
Dimensions | 8m(L) × 2.5m(W) |
Power Consumption | 35kW (Peak) |
