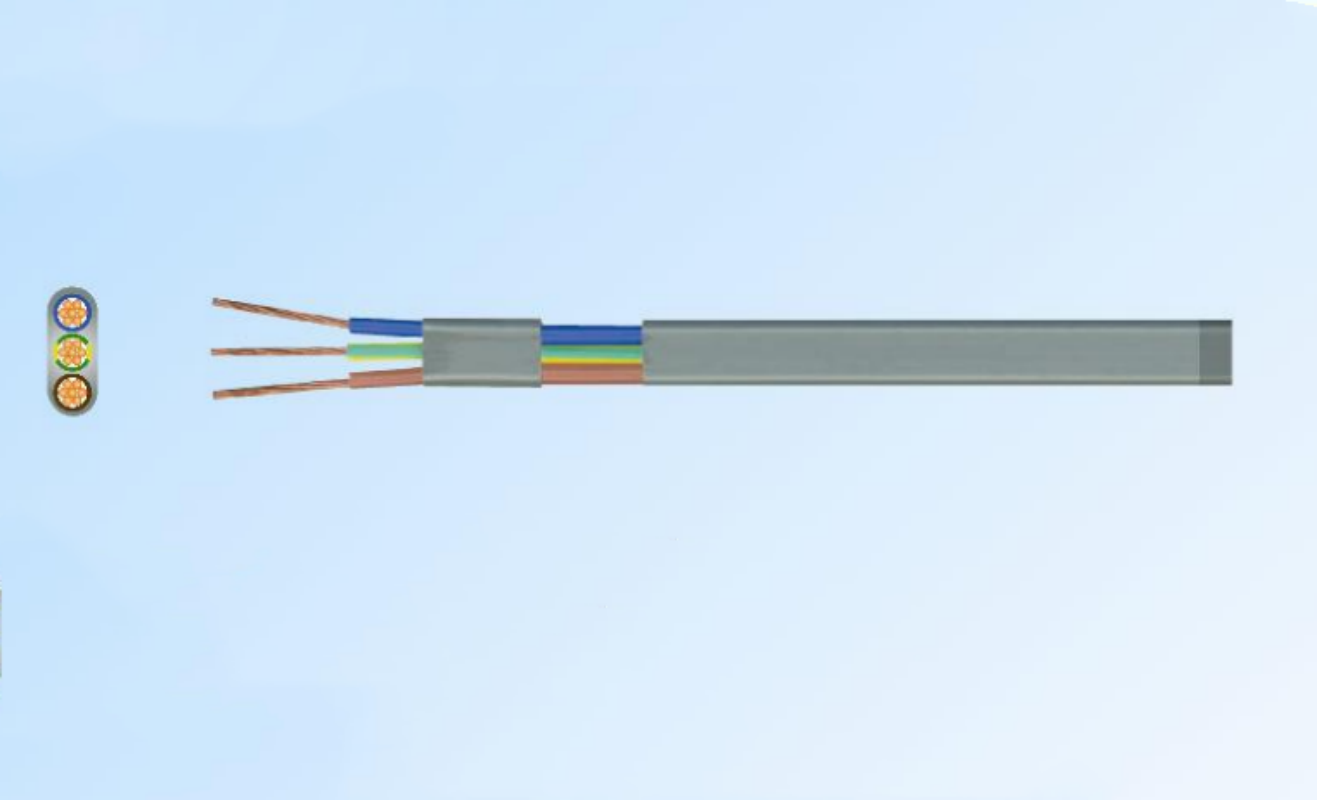

The 300/500V Flat Twin & Three Core Cables (Code: FLAT TWIN & THREE CORE CABLES) are engineered to meet the demands of modern indoor wiring, combining durability, space efficiency, and compliance with international standards. Manufactured by Jiangsu East Energy Electrical Engineering Co., Ltd., a leading provider of electrical system products, these cables adhere to BS6004 standards, ensuring reliable performance in diverse installation environments.
Designed for fixed installations, their flat profile minimizes space usage, making them ideal for scenarios where wiring needs to be unobtrusive—whether hidden within walls, embedded in plaster, or routed through tight spaces. With a focus on safety and longevity, these cables are built to withstand the rigors of dry and damp indoor conditions, supporting consistent operation across residential, commercial, and light industrial settings.
Conductor: Featuring solid copper conductors, the cables offer excellent electrical conductivity, ensuring efficient current transmission with minimal loss. The conductor's solid core enhances stability, reducing the risk of breakage during installation or long-term use.
Insulation: Each conductor is wrapped in PVC insulation, which provides robust protection against electrical leakage and short circuits. The insulation material is resistant to heat and moisture, aligning with the cable’s suitability for damp locations.
Outer Sheath: A durable PVC outer sheath encloses the insulated conductors, offering an additional layer of defense against physical damage, corrosion, and environmental factors. This sheath also contributes to the cable's flat, compact shape, facilitating easy installation in confined spaces.
Dry indoor areas such as living rooms, offices, and retail spaces.
Damp locations like kitchens, bathrooms, and basements (where moisture levels are controlled).
Installation within walls, under floors, or embedded in plaster, thanks to their flat profile that avoids bulky protrusions.
Their versatility makes them a preferred choice for residential wiring, commercial fit-outs, and light industrial applications where space efficiency and safety are paramount.
| Num.of Cores and Nominal Cross Section | Number and Dia of Wires | Thickness of Insulation (mm) | Thickness of Sheath (mm) | Conductor DC Resistance at 20℃ (Ω/km) | Approx. Total Weight (Kg/km) | Max. Current Carrying Capacity at 30℃ | |
|---|---|---|---|---|---|---|---|
| Pipe (A) | Air (A) | ||||||
| 2×1.5 mm² | 7×0.51 mm | 0.7 | 0.9 | 12.1 | 76.0 | 32 | 20 |
| 2×2.5 mm² | 7×0.66 mm | 0.8 | 1.0 | 7.41 | 110 | 42 | 27 |
| 2×4 mm² | 7×0.83 mm | 0.8 | 1.0 | 4.61 | 148 | 54 | 37 |
| 3×1.5 mm² | 7×0.51 mm | 0.7 | 0.9 | 12.1 | 102 | 26 | 18 |
| 3×2.5 mm² | 7×0.66 mm | 0.8 | 1.0 | 7.41 | 152 | 34 | 25 |
| 3×4 mm² | 7×0.83 mm | 0.8 | 1.1 | 4.61 | 224 | 44 | 34 |
The cables operate reliably at a maximum temperature of 70℃, ensuring stability even under prolonged use or moderate heat exposure.
Designed to carry currents ranging from 18A to 54A (depending on core size and installation method), they support a wide range of indoor electrical devices and systems.
The combination of solid copper conductors, PVC insulation, and outer sheath ensures resistance to wear, corrosion, and environmental stress, extending the cable's service life.
