ACSR (Aluminum Conductor Steel Reinforced) is a widely used overhead power transmission conductor composed of a central steel core surrounded by one or more layers of aluminum strands. It combines the high tensile strength of steel with the excellent conductivity and lightweight properties of aluminum, making it ideal for long-span power lines.

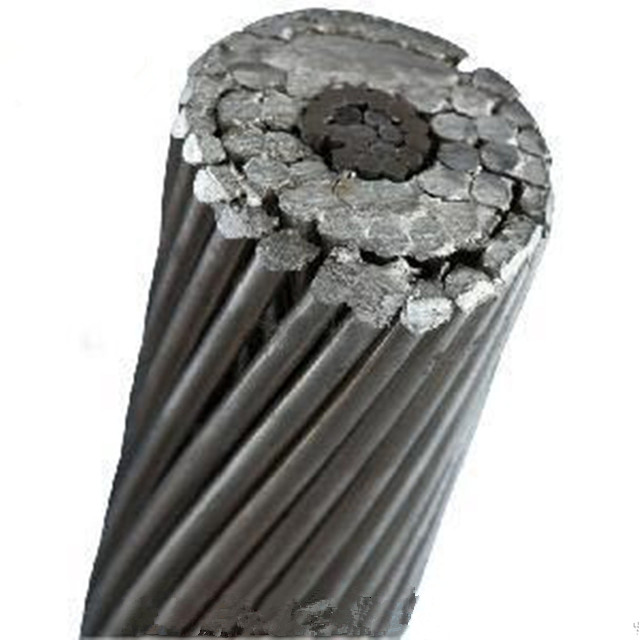

Construction:
Steel Core: Provides mechanical strength and resistance to sagging under heavy loads or high temperatures.
Aluminum Outer Strands: Conduct electricity efficiently while being lightweight and corrosion-resistant.
Advantages:
High Tensile Strength: Suitable for long spans (e.g., river crossings, mountainous areas).
Cost-Effective: Cheaper than all-aluminum or copper conductors.
Thermal Stability: Steel core reduces sag at high temperatures.
Corrosion Resistance: Aluminum forms a protective oxide layer.
Disadvantages:
Higher Reactance: Due to steel's magnetic properties, affecting power transfer efficiency.
Susceptibility to Corrosion: In coastal or polluted areas, galvanized or aluminum-coated steel cores may be used.
Applications:
Overhead power transmission & distribution lines.
Railway electrification.
Telecommunication towers (as guy wires).
ACSR (Aluminum Conductor Steel Reinforced) is a widely used overhead power transmission conductor composed of a central steel core surrounded by one or more layers of aluminum strands. It combines the high tensile strength of steel with the excellent conductivity and lightweight properties of aluminum, making it ideal for long-span power lines.
Construction:
Steel Core: Provides mechanical strength and resistance to sagging under heavy loads or high temperatures.
Aluminum Outer Strands: Conduct electricity efficiently while being lightweight and corrosion-resistant.
Advantages:
High Tensile Strength: Suitable for long spans (e.g., river crossings, mountainous areas).
Cost-Effective: Cheaper than all-aluminum or copper conductors.
Thermal Stability: Steel core reduces sag at high temperatures.
Corrosion Resistance: Aluminum forms a protective oxide layer.
Disadvantages:
Higher Reactance: Due to steel's magnetic properties, affecting power transfer efficiency.
Susceptibility to Corrosion: In coastal or polluted areas, galvanized or aluminum-coated steel cores may be used.
Applications:
Overhead power transmission & distribution lines.
Railway electrification.
Telecommunication towers (as guy wires).
Standards: ASTM B 232
Code | Area | Stranding & Wire Diameter | Approx. Overall Dia. | Weight | Nom. Breaking Load | Nom.DC Resistance at 20℃ | Std Length | ||||||
Nom.Alum | Alum. | Steel | Total | Alum. | Steel | Alum. | Steel | Total | |||||
mm² | mm² | mm² | mm² | mm | mm | mm | kg/km | kg/km | kg/km | KN | Ohm/Km | m. ±5% | |
TURKEY | 6 | 13.29 | 2.19 | 15.48 | 6/1.68 | 1/1.68 | 5.04 | 37 | 17 | 54 | 5.24 | 2.1586 | 3,000 |
SWAN | 4 | 21.16 | 3.55 | 24.71 | 6/2.12 | 1/2.12 | 6.36 | 58 | 27 | 85 | 8.32 | 1.3557 | 3,000 |
SWANATE | 4 | 21.16 | 5.35 | 26.51 | 7/1.96 | 1/2.61 | 6.53 | 58 | 42 | 100 | 10.53 | 1.3557 | 3.000 |
SPARROW | 2 | 33.61 | 5.61 | 39.22 | 6/2.67 | 1/2.67 | 8.01 | 92 | 44 | 136 | 12.7 | 0.8535 | 3,000 |
SPARATE | 2 | 33.61 | 8.52 | 42.13 | 7/2.47 | 1/3.30 | 8.24 | 92 | 67 | 159 | 16.11 | 0.8535 | 2,500 |
ROBIN | 1 | 42.39 | 7.1 | 49.49 | 6/3.00 | 1/3.00 | 9 | 116 | 55 | 171 | 15.85 | 0.6767 | 2,500 |
RAVEN | 1/0 | 53.48 | 8.9 | 62.38 | 6/3.37 | 1/3.37 | 10.11 | 147 | 69 | 216 | 19.32 | 0.5364 | 2,000 |
QUAIL | 2/0 | 67.42 | 11.23 | 78.65 | 6/3.78 | 1/3.78 | 11.34 | 185 | 88 | 273 | 23.62 | 0.4255 | 3,000 |
PIGEON | 3/0 | 85.03 | 14.19 | 99.22 | 6/4.25 | 1/4.25 | 12.75 | 233 | 110 | 343 | 29.41 | 0.3373 | 2,500 |
PENGUIN | 4/0 | 107.23 | 17.87 | 125.1 | 6/4.77 | 1/4.77 | 14.31 | 294 | 139 | 433 | 37.06 | 0.2675 | 2,000 |
WAXWING | 266.8 | 135.16 | 7.48 | 142.64 | 16/3.09 | 1/3.09 | 15.45 | 373 | 58 | 431 | 30.27 | 0.2133 | 3,500 |
PARTRIDGE | 266.8 | 135.16 | 22 | 157.16 | 26/2.57 | 7/2.00 | 16.28 | 374 | 172 | 546 | 50.29 | 0.2143 | 2,500 |
OSTRICH | 300 | 152 | 24.71 | 176.11 | 26/2.73 | 7/2.12 | 17.28 | 421 | 193 | 614 | 56.52 | 0.1906 | 3,000 |
MERUN | 336.4 | 170.45 | 9.48 | 179.93 | 16/3.47 | 1/3.47 | 17.35 | 470 | 74 | 544 | 38.23 | 0.1691 | 2,000 |
LINNET | 336.4 | 170.45 | 27.81 | 198.26 | 26/2.89 | 7/2.25 | 18.31 | 472 | 217 | 689 | 62.71 | 0.1699 | 2,500 |
ORIOLE | 336.4 | 170.45 | 39.81 | 210.26 | 30/2.69 | 7/2.69 | 18.83 | 473 | 311 | 784 | 77.27 | 0.1704 | 3,000 |
CHICKADEE | 397.5 | 201.42 | 11.16 | 212.58 | 16/3.77 | 1/3.77 | 18.85 | 555 | 87 | 642 | 43.99 | 0.1431 | 2,500 |
BRANT | 397.5 | 201.42 | 26.13 | 227.55 | 24/3.27 | 7/2.18 | 19.61 | 558 | 204 | 762 | 64.69 | 0.1438 | 2,000 |
IBIS | 397.5 | 201.42 | 32.77 | 234.19 | 26/3.14 | 7/2.44 | 19.88 | 558 | 256 | 814 | 72.11 | 0.1438 | 2,500 |
LARK | 397.5 | 201.42 | 48.97 | 248.39 | 30/2.92 | 7/2.92 | 20.44 | 560 | 367 | 927 | 88.69 | 0.1442 | 2,500 |
PELICAN | 477 | 241.68 | 13.42 | 255.1 | 18/4.14 | 1/4.14 | 20.7 | 666 | 105 | 771 | 52.16 | 0.1193 | 2,000 |
FLICKER | 477 | 241.68 | 31.29 | 272.97 | 24/3.58 | 7/2.39 | 21.49 | 670 | 245 | 915 | 76.66 | 0.1199 | 3,000 |
HAWK | 477 | 241.68 | 39.42 | 281.1 | 26/3.44 | 7/2.67 | 21.79 | 670 | 308 | 978 | 86.65 | 0.1199 | 2,000 |
HEN | 477 | 241.68 | 56.39 | 298.07 | 30/3.20 | 7/3.20 | 22.4 | 671 | 441 | 1,112 | 105.34 | 0.1201 | 2,000 |
OSPREY | 556.5 | 282 | 15.68 | 297.68 | 18/4.47 | 1/4.47 | 22.35 | 777 | 122 | 899 | 60.88 | 0.1022 | 2,000 |
PARAKEET | 556.5 | 282 | 36.58 | 318.58 | 24/3.87 | 7/2.58 | 23.22 | 781 | 286 | 1,067 | 88.22 | 0.1027 | 3,000 |
DOVE | 556.5 | 282 | 45.94 | 327.94 | 26/3.72 | 7/2.89 | 23.55 | 781 | 359 | 1,140 | 101.03 | 0.1027 | 3,000 |
EAGLE | 556.5 | 282 | 65.81 | 347.81 | 30/3.46 | 7/3.46 | 24.21 | 783 | 515 | 1,298 | 122.92 | 0.103 | 3,500 |
PEACOCK | 605 | 306.58 | 39.74 | 346.32 | 24/4.03 | 7/2.69 | 24.2 | 849 | 311 | 1,160 | 95.88 | 0.0945 | 3,000 |
SQUAB | 605 | 306.58 | 49.94 | 356.52 | 26/3.87 | 7/3.01 | 24.51 | 850 | 390 | 1,240 | 108.14 | 0.0945 | 3,000 |
WOOD DUCK | 605 | 306.58 | 71.55 | 378.13 | 30/3.61 | 7/3.61 | 25.25 | 851 | 560 | 1,411 | 128.84 | 0.0947 | 3,000 |
TEAL | 605 | 306.58 | 69.87 | 376.45 | 30/3.61 | 19/2.16 | 25.24 | 851 | 548 | 1,399 | 133.59 | 0.0947 | 2,000 |
KINGBIRD | 636 | 322.26 | 17.9 | 340.16 | 18/4.78 | 1/4.78 | 23.88 | 889 | 139 | 1,028 | 69.55 | 0.08945 | 2,000 |
ROOK | 636 | 322.26 | 41.81 | 364.07 | 24/4.14 | 7/2.76 | 24.84 | 893 | 326 | 1.219 | 100.63 | 0.08989 | 2,500 |
Code | Area | Stranding & Wire Diameter | Approx. Overall Dia. | Weight | Nom. Breaking Load | Nom.DC Resistance at 20℃ | Std. Length | ||||||
Nom.Alum | Alum. | Steel | Total | Alum. | Steel | Alum. | Steel | Total | |||||
mm² | mm² | mm² | mm² | mm | mm | mm | kg/km | kg/km | kg/km | KN | Ohm/Km | m. ±5% | |
GROSBEAK | 636 | 322.26 | 52.45 | 374.71 | 26/3.97 | 7/3.09 | 25.15 25.88 | 893 | 409 | 1,302 | 111.8 | 0.08989 | 3,000 |
SCOTER | 636 | 322.26 | 75.22 | 397.48 | 30/3.70 | 7/3.70 | 895 | 589 | 1,484 | 135.44 | 0.09011 | 3,000 | |
EGRET | 636 | 322.26 | 73.55 | 395.8 | 30/3.70 | 19/2.22 | 25.9 | 894 | 576 | 1,470 | 140.3 | 0.09011 | 3.000 |
SWIFT | 636 | 322.26 | 8.96 | 331.22 | 36/3.38 | 1/3.38 | 23.62 | 888 | 70 | 958 | 60.52 | 0.08945 | 2,000 |
FLAMINGO | 666.6 | 337.74 | 43.81 | 381.55 | 24/4.23 | 7/2.82 | 25.4 | 936 | 342 | 1,278 | 105.68 | 0.08577 | 2,500 |
GANNET | 666.6 | 337.74 | 55.03 | 392.77 | 26/4.07 | 7/3.16 | 25.76 | 938 | 429 | 1,365 | 117.33 | 0.08577 | 2,500 |
STILT | 715.5 | 362.58 | 46.97 | 409.55 | 24/4.39 | 7/2.92 | 26.31 | 1,005 | 367 | 1,372 | 113.35 | 0.07989 | 2,000 |
STARLING | 715.5 | 362.53 | 59.03 | 421.61 | 26/4.21 | 7/3.28 | 26.68 | 1,005 | 461 | 1,466 | 125.91 | 0.07989 | 2,500 |
REDWING | 715.5 | 362.58 | 82.58 | 445.16 | 30/3.92 | 19/2.35 | 27.43 | 1,006 | 647 | 1,653 | 153.94 | 0.08009 | 2,000 |
TERN | 795 | 402.84 | 27.87 | 430.71 | 45/3.38 | 7/2.25 | 27.03 | 1,116 | 217 | 1,333 | 97.37 | 0.07191 | 2,500 |
CONDOR | 795 | 402.84 | 52.19 | 455.03 | 54/3.08 | 7/3.08 | 27.72 | 1,116 | 408 | 1,524 | 124.45 | 0.07191 | 3,000 |
CUCKOO | 795 | 402.84 | 52.19 | 455.03 | 24/4.62 | 7/3.08 | 27.74 | 1,116 | 408 | 1,524 | 123.94 | 0.07191 | 2,000 |
DRAKE | 795 | 402.84 | 65.51 | 468.45 | 26/4.44 | 7/3.45 | 28.11 | 1,116 | 512 | 1.628 | 139.92 | 0.07191 | 2,000 |
COOT | 795 | 402.84 | 11.16 | 414 | 36/3.77 | 1/3.77 | 26.41 | 1,110 | 88 | 1,198 | 74.34 | 0.07156 | 3,000 |
MALLARD | 795 | 402.84 | 91.87 | 484.71 | 30/4.14 | 19/2.48 | 28.96 | 1,119 | 719 | 1.838 | 171.18 | 0.07208 | 2,500 |
RUDDY | 900 | 456.06 | 31.54 | 487.6 | 45/3.59 | 7/2.40 | 28.73 | 1,263 | 247 | 1,510 | 108.96 | 0.06351 | 2,000 |
CANARY | 900 | 456.06 | 59.1 | 515.6 | 54/3.28 | 7/3.28 | 29.52 | 1,263 | 461 | 1,724 | 140.95 | 0.06351 | 2,000 |
RAIL | 954 | 483.42 | 33.42 | 516.84 | 45/3.70 | 7/2.47 | 29.61 | 1,339 | 262 | 1,601 | 115.63 | 0.05992 | 2,000 |
CATBIRD | 954 | 483.42 | 13.42 | 496.84 | 36/4.14 | 1/4.14 | 28.95 | 1,333 | 105 | 1,438 | 87.65 | 0.05962 | 2,500 |
CARDINAL | 954 | 483.42 | 62.65 | 546.07 | 54/3.38 | 7/3.38 | 30.42 | 1,339 | 490 | 1,829 | 149.36 | 0.05992 | 2,500 |
ORTLAN | 1,033.5 | 523.68 | 36.19 | 559.87 | 45/3.85 | 7/2.57 | 30.81 | 1,451 | 283 | 1,734 | 123.1 | 0.05531 | 2,000 |
TANGER | 1,033.5 | 523.68 | 14.51 | 538.19 | 36/4.30 | 1/4.30 | 30.12 | 1,443 | 113 | 1,556 | 94.93 | 0.05504 | 2,000 |
CURLEW | 1,033.5 | 523.68 | 67.87 | 591.55 | 54/3.52 | 7/3.52 | 31.68 | 1,451 | 530 | 1,981 | 161.8 | 0.05531 | 2,000 |
BLUEJAY | 1,113 | 563.93 | 39.03 | 602.96 | 45/4.00 | 7/2.66 | 31.98 | 1,563 | 385 | 1,868 | 132.63 | 0.05136 | 2,500 |
FINCH | 1,113 | 563.93 | 71.55 | 635.48 | 54/3.65 | 19/2.19 | 32.85 | 1,570 | 580 | 2,130 | 174.41 | 0.05161 | 2,000 |
BUNTING | 1,192.5 | 604.26 | 41.55 | 645.81 | 45/4.14 | 7/2.76 | 33.12 | 1,674 | 327 | 2,001 | 141.79 | 0.04793 | 2.500 |
GRACKLE | 1,192.5 | 604.26 | 76.58 | 680.84 | 54/3.77 | 19/2.27 | 33.97 | 1,682 | 600 | 2,282 | 188.38 | 0.04817 | 2,000 |
BITTERN | 1,272 | 644.51 | 44.52 | 689.03 | 45/4.27 | 7/2.85 | 34.17 | 1,785 | 349 | 2,134 | 151.48 | 0.04494 | 2,500 |
PHEASANT | 1,272 | 644.51 | 81.63 | 726.19 | 54/3.90 | 19/2.34 | 35.1 | 1,795 | 638 | 2,433 | 194 | 0.04516 | 2.000 |
SKYLARK | 1,272 | 644.51 | 17.87 | 662.38 731.94 | 36/4.78 | 1/4.78 | 33.42 | 1.777 | 140 | 1.917 | 115.85 | 0.04472 | 2,000 |
DIPPER | 1,351.5 | 684.84 684.84 | 47.1 | 45/4.40 | 7/2.92 | 35.16 | 1,898 | 368 | 2,266 | 160.7 | 0.0423 | 2,000 | |
MARTIN | 1,351.5 | 88.71 | 771.55 775.42 | 54/4.02 | 19/2.41 | 36.17 | 1,906 | 679 | 2,585 | 206.05 | 0.0425 | 2,000 | |
BOBOLINK | 1,431 | 725.1 | 50.32 | 45/4.53 | 7/3.02 | 36.24 | 2,009 | 393 | 2,402 | 170.71 | 0.03994 | 2,000 | |
PLOVER | 1,431 | 725.1 | 91.87 | 816.97 | 54/4.14 | 19/2.48 | 37.24 | 2,019 | 719 | 2,738 | 218.24 | 0.04013 | 2,500 |
NUTHATCH | 1,510.5 | 765.35 | 52.9 | 818.25 | 45/4.65 | 7/3.10 | 37.2 | 2,120 | 414 | 2,534 2,890 2,667 3,042 222 | 177.89 | 0.03784 | 2,000 |
PARROT | 1,510.5 | 765.35 | 96.84 | 862.19 | 54/4.25 | 19/2.55 | 38.25 | 2,131 | 759 | 230.2 | 0.03802 | 2,000 | |
LAPWING | 1,590 | 805.68 | 55.48 102.13 | 861.16 | 45/4.77 | 7/3.18 | 38.16 | 2,232 2,243 | 435 799 | 187.02 | 0.03595 | 2,000 | |
FALCON | 1,590 | 805.68 | 907.81 | 54/4.36 | 19/2.62 | 39.26 | 242.55 | 0.03613 | 2,000 | ||||
GROUSE | 80 | 40.52 | 14.13 | 54.65 | 8/2.54 | 1/4.24 | 9.32 | 112 | 110 | 23.6 | 0.7115 | 2,500 | |
PETREL | 101.8 | 51.61 | 30.06 | 81.67 | 12/2.34 | 7/2.34 | 11.71 12.22 13.46 | 143 156 189 | 235 256 311 367 409 441 722 488 | 378 412 500 590 657 709 1007 785 | 41.75 | 0.5613 | 2,000 2,000 2,000 2,000 2,000 3,000 2,500 3.000 |
MINORCA | 110.8 | 56.13 | 32.77 | 88.9 | 12/2.44 | 7/2.44 | 51.25 61.7 72.55 78.5 84.8 128.8 93.9 | 0.5161 0.4248 0.3595 0.3237 0.2995 0.2813 0.2705 | |||||
LEGHORN | 134.6 | 68.19 | 39.81 | 108 | 12/2.69 | 7/2.69 | |||||||
GUINEA DOTTEREL DORKING | 159 | 80.58 | 46.97 | 127.55 | 12/2.92 | 7/2.92 | 14.63 15.42 16.03 18.14 16.84 | 223 248 266 285 297 | |||||
176.9 | 89.48 | 52.19 | 141.67 | 12/3.08 | 7/3.08 | ||||||||
190.8 203.2 211.8 | 96.71 102.97 107.1 | 56.39 91.87 62.45 | 153. 94.84 169.55 | 12/3.20 18/2.86 12/3.37 | 7/3.20 19/2.48 7/3.37 | ||||||||
BRAHMA COCHIN | |||||||||||||
AACSR
Product: STEEL REINFORCED CONDUCTORS
Standards:Typical ALLALUMINUMALLOY NFC 34- 125
drawing:East Energy Electrical Engineering
Designation | Steel Area | Al Alloy Area | Tot. | Equival -ent CU Area | Number | Approx. Overall Dia. | Nom. Breaking Load | Nom.DC Resistance at 20℃ | Std. Weight | Std. Length | ||||
Steel | Al Alloy | Steel Core | Comp lete Cond. | |||||||||||
mm² | mm² | mm² | mm² | No. | No. | mm | mm | daN | Ohm/kM | kg/km | m±5% | |||
PHLOX 37-7 | 9.42 | 28.27 | 37.69 | 15.4 | 3 | 2.00 | 9 | 2.00 | 4.3 | 8.3 | 2,360 | 1.17 | 155 | 4,000 |
PHLOX 59-7 | 21.99 | 37.7 | 59.69 | 20.6 | 7 | 2.00 | 12 | 2.00 | 6 | 10 | 4,560 | 0.88 | 276 | 4,000 |
PHLOX 75-5 | 27.83 | 47.71 | 75.54 | 26 | 7 | 2.25 | 12 | 2.25 | 6.75 | 11.25 | 5,770 | 0.695 | 348 | 3,000 |
PHLOX 116-2 | 59.69 | 56.55 | 116.24 | 30.9 | 19 | 2.00 | 18 | 2.00 | 10 | 14 | 10,815 | 0.58 | 636 | 3,000 |
PHLOX 147-1 | 75.54 | 71.57 | 147.11 | 39.1 | 19 | 2.25 | 18 | 2.25 | 11.25 | 15.75 | 13,685 | 0.466 | 802 | 3,000 |
PASTEL 147-1 | 27.83 | 119.28 | 147.11 | 65.2 | 7 | 2.25 | 30 | 2.25 | 6.75 | 15.75 | 8,185 | 0.279 | 547 | 3,000 |
PHLOX181-6 | 93.27 | 88.36 | 181.63 | 48.3 | 19 | 2.50 | 18 | 2.50 | 12.5 | 17.5 | 16,895 | 0.378 | 990 | 3,000 |
PASTEL 181-6 | 34.36 | 147.26 | 181.62 | 80.5 | 7 | 2.50 | 30 | 2.50 | 7.5 | 17.5 | 10,120 | 0.227 | 675 | 3,000 |
PHLOX 228 | 116.99 | 110.83 | 227.82 | 60.5 | 19 | 2.80 | 18 | 2.80 | 14 | 19.6 | 21,200 | 0.3 | 1,244 | 2,000 |
PASTEL 228 | 43.1 | 184.72 | 227.82 | 101 | 7 | 2.80 | 30 | 2.80 | 8.4 | 19.6 | 12,680 | 0.18 | 848 | 2,000 |
PHLOX 288 | 148.07 | 140.28 | 288.35 | 76.6 | 19 | 3.15 | 18 | 3.15 | 15.75 | 22.05 | 26,800 | 0.237 | 1,570 | 2,000 |
PASTEL 288 | 54.55 | 233.8 | 288.35 | 127.7 | 7 | 3.15 | 30 | 3.15 | 9.45 | 22.05 | 16,050 | 0.142 | 1,074 | 2,000 |
PASTEL 299 | 93.27 | 206.17 | 299.44 | 112.7 | 19 | 2.50 | 42 | 2.50 | 12.5 | 22.5 | 20,875 | 0.162 | 1,320 | 2,000 |
PHLOX 94-1 | 42.12 | 51.95 | 94.07 | 28.4 | 19 | 1.68 | 15 | 2.10 | 8.4 | 12.8 | 8,035 | 0.642 | 481 | 4,000 |
PASTEL412 | 85.95 | 325.72 | 411.67 | 178 | 19 | 2.40 | 32 | 3.60 | 12 | 26.4 | 20,830 | 0.103 | 1,593 | 2,500 |
AAAC
Product: ALLALUMINUM ALLOY CONDUCTORS
Standards: ASTM B 399
Typical drawing:
Code | Area | Size and Stranding of ACSR with Equal Diameter | No.and Diameter of Wires | Overall Diameter | Weight | Nominal Breaking Load | Standard Length | ||
Nominal | Actual | ||||||||
MCM | mm² | AWG or MCM | Al/Steel | mm | mm | kg/km | KN | M±5 | |
AKRON | 30.58 | 15.48 | 6 | 6/1 | 7×1.68 | 5.04 | 42.7 | 4.92 | 3,000 |
ALTON | 48.69 | 24.71 | 4 | 6/1 | 7×2.12 | 6.35 | 68 | 7.84 | 3,000 |
AMES | 77.47 | 39.22 | 2 | 6/1 | 7×2.67 | 8.02 | 108 | 12.45 | 2,000 |
AZUSA | 123.3 | 62.38 | 1/0 | 6/1 | 7×3.37 | 10.11 | 172 | 18.97 | 2,000 |
ANAHEIM | 155.4 | 78.65 | 2/0 | 6/1 | 7×3.78 | 11.35 | 217 | 23.93 | 3,000 |
AMHERST | 195.7 | 99.22 | 3/0 | 6/1 | 7×4.25 | 12.75 | 273 | 30.18 | 2,500 |
ALLIANCE | 246.9 | 125.1 | 4/0 | 6/1 | 7×4.77 | 14.31 | 345 | 38.05 | 2,000 |
BUTTE | 312.8 | 158.6 | 266.8 | 26/7 | 19×3.26 | 16.3 | 437 | 48.76 | 3,000 |
CANTON | 394.5 | 199.9 | 336.4 | 26/7 | 19×3.66 | 18.3 | 551 | 58.91 | 2,500 |
CAIRO | 465.4 | 235.8 | 397.5 | 26/7 | 19×3.98 | 19.88 | 650 | 69.48 | 2,000 |
DARIEN | 559.5 | 283.5 | 477 | 26/7 | 19×4.36 | 21.79 | 781 | 83.52 | 2,000 |
ELGIN | 652.4 | 330.6 | 556.5 | 26/7 | 19×4.71 | 23.54 | 911 | 97.42 | 1,500 |
FLINT | 740.8 | 375.3 | 636 | 26/7 | 37×3.59 | 25.16 | 1,035 | 108.21 | 3,000 |
GREELEY | 927.2 | 469.8 | 795 | 26/7 | 37×4.02 | 28.14 | 1,295 | 135.47 | 2,500 |
AAAC
Product: ALLALUMINUM ALLOY CONDUCTORS
Standards: ASTM B 399
Typical drawing:
Area | Stranding and Wire Diameter | Approx. Overall Diameter | Weight | Nominal Breaking Load | Nominal DC Resistance at 20℃ | Standard Length | |
Nominal | Actual | ||||||
AWG or MCM | mm² | mm | mm | kg/km | KN | Ohm/kM | M±5 |
6 | 13.3 | 7/1.554 | 4.67 | 37 | 4.22 | 2.5199 | 3,500 |
4 | 21.15 | 7/1.961 | 5.89 | 58 | 6.71 | 1.5824 | 3,000 |
2 | 33.63 | 7/2.474 | 7.42 | 93 | 10.68 | 0.9942 | 2,500 |
1/0 | 53.48 | 7/3.119 | 9.36 | 148 | 16.97 | 0.6256 | 2,000 |
2/0 | 67.42 | 7/3.503 | 10.51 | 186 | 20.52 | 0.4959 | 3,500 |
3/0 | 85.03 | 7/3.932 | 11.8 | 234 | 25.86 | 0.3936 | 3,000 |
4/0 | 107.23 | 7/4.417 | 13.26 | 296 | 32.63 | 0.3119 | 2,000 |
250 | 126.66 | 19/2.913 | 14.57 | 349 | 38.93 | 0.2642 | 2,000 |
300 | 152.1 | 19/3.193 | 15.97 | 419 | 46.77 | 0.2199 | 3,000 |
350 | 177.35 | 19/3.447 | 17.24 | 489 | 52.25 | 0.1887 | 3,000 |
400 | 202.71 | 19/3.686 | 18.43 | 559 | 59.74 | 0.165 | 2,500 |
450 | 228 | 19/3.909 | 19.55 | 629 | 67.19 | 0.1467 | 2,000 |
500 | 253.35 | 19/4.120 | 20.6 | 698 | 74.64 | 0.1321 | 2,000 |
550 | 278.6 | 37/3.096 | 21.67 | 768 | 83.8 | 0.1202 | 2,000 |
600 | 303.8 | 37/3.233 | 22.63 | 838 | 91.38 | 0.1102 | 2,000 |
650 | 329.25 | 37/3.366 | 23.56 | 908 | 97.94 | 0.1016 | 2,000 |
700 | 354.55 | 37/3.493 | 24.45 | 978 | 102.2 | 0.0944 | 3,500 |
750 | 380.2 | 37/3.617 | 25.32 | 1,049 | 109.6 | 0.088 | 3,000 |
800 | 405.15 | 37/3.734 | 26.14 | 1,117 | 116.8 | 0.0826 | 3,000 |
900 | 456.16 | 37/3.962 | 27.73 | 1,258 | 131.5 | 0.0733 | 3,000 |
1,000 | 506.71 | 37/4.176 | 29.23 | 1,399 | 146.1 | 0.066 | 2,500 |
AAAC
Product: ALLALUMINUM ALLOY CONDUCTORS
Standards: BS EN 50182
Typical drawing:
Code | Area | Stranding and Wire Dia. | Approx. Oyerall Diameter | Weight | Nominal Breaking Load | Nominal DC Resistance at 20℃ | Standard Length | |
Nominal | Actual | |||||||
mm² | mm² | mm | mm | kg/km | KN | Ohm/kM | M±5 | |
10 | 11.9 | 7/1.47 | 4.41 | 32 | 3.33 | 2.277 | 2,500 | |
BOX | 15 | 18.8 | 7/1.85 | 5.55 | 51 | 5.27 | 1.749 | 2,000 |
ACACIA | 20 | 23.9 | 7/2.08 | 6.24 | 65 | 6.7 | 1.384 | 2,500 |
ALMOND | 25 | 30.1 | 7/2.34 | 7.02 | 82 | 8.44 | 1.094 | 2,000 |
CEDAR | 30 | 35.5 | 7/2.54 | 7.62 | 97 | 9.95 | 0.9281 | 2,000 |
35 | 42.2 | 7/2.77 | 8.31 | 115 | 11.83 | 0.78 | 2,000 | |
FIR | 40 | 47.8 | 7/2.95 | 8.85 | 131 | 13.4 | 0.688 | 2,500 |
HAZEL | 50 | 59.9 | 7/3.30 | 9.9 | 164 | 16.8 | 0.5498 | 2,000 |
PINE | 60 | 71.7 | 7/3.61 | 10.83 | 196 | 20.1 | 0.4595 | 3,000 |
70 | 84.1 | 7/3.91 | 11.73 | 230 | 23.57 | 0.3917 | 3,000 | |
WILLOW | 75 | 89.8 | 7/4.04 | 12.12 | 246 | 25.17 | 0.3669 | 2,500 |
80 | 96.5 | 7/4.19 | 12.57 | 264 | 27.04 | 0.341 | 2,500 | |
90 | 108.8 | 7/4.45 | 13.35 | 298 | 30.5 | 0.3026 | 2,000 | |
OAK | 100 | 118.9 | 7/4.65 | 13.95 | 325 | 33.3 | 0.2769 | 2,000 |
100 | 118.7 | 19/2.82 | 14.1 | 326 | 33.3 | 0.2786 | 2,000 | |
MULBERRY | 125 | 151.1 | 19/3.18 | 15.9 | 415 | 42.3 | 0.219 | 3,000 |
ASH | 150 | 180.7 | 19/3.48 | 17.4 | 497 | 50.6 | 0.183 | 3,000 |
ELM | 175 | 211 | 19/3.76 | 18.8 | 580 | 59.1 | 0.1568 | 2,500 |
POPLAR | 200 | 239 | 37/2.87 | 20.09 | 660 | 67 | 0.1387 | 2,500 |
225 | 270.3 | 37/3.05 | 21.35 | 744 | 75.7 | 0.1224 | 2,000 | |
SYCAMORE | 250 | 303 | 37/3.23 | 22.61 | 835 | 84.9 | 0.1094 | 2,000 |
UPAS | 300 | 362.1 | 37/3.53 | 24.71 | 998 | 101.5 | 0.09155 | 2,000 |
350 | 421.8 | 37/3.81 | 26.67 | 1163 | 118.2 | 0.0786 | 3,000 | |
YEW | 400 | 479.9 | 37/4.06 | 28.42 | 1323 | 134.5 | 0.06908 | 2,500 |
Standards: ASTM B 232
Code | Area | Stranding & Wire Diameter | Approx. Overall Dia. | Weight | Nom. Breaking Load | Nom.DC Resistance at 20℃ | Std Length | ||||||
Nom.Alum | Alum. | Steel | Total | Alum. | Steel | Alum. | Steel | Total | |||||
mm² | mm² | mm² | mm² | mm | mm | mm | kg/km | kg/km | kg/km | KN | Ohm/Km | m. ±5% | |
TURKEY | 6 | 13.29 | 2.19 | 15.48 | 6/1.68 | 1/1.68 | 5.04 | 37 | 17 | 54 | 5.24 | 2.1586 | 3,000 |
SWAN | 4 | 21.16 | 3.55 | 24.71 | 6/2.12 | 1/2.12 | 6.36 | 58 | 27 | 85 | 8.32 | 1.3557 | 3,000 |
SWANATE | 4 | 21.16 | 5.35 | 26.51 | 7/1.96 | 1/2.61 | 6.53 | 58 | 42 | 100 | 10.53 | 1.3557 | 3.000 |
SPARROW | 2 | 33.61 | 5.61 | 39.22 | 6/2.67 | 1/2.67 | 8.01 | 92 | 44 | 136 | 12.7 | 0.8535 | 3,000 |
SPARATE | 2 | 33.61 | 8.52 | 42.13 | 7/2.47 | 1/3.30 | 8.24 | 92 | 67 | 159 | 16.11 | 0.8535 | 2,500 |
ROBIN | 1 | 42.39 | 7.1 | 49.49 | 6/3.00 | 1/3.00 | 9 | 116 | 55 | 171 | 15.85 | 0.6767 | 2,500 |
RAVEN | 1/0 | 53.48 | 8.9 | 62.38 | 6/3.37 | 1/3.37 | 10.11 | 147 | 69 | 216 | 19.32 | 0.5364 | 2,000 |
QUAIL | 2/0 | 67.42 | 11.23 | 78.65 | 6/3.78 | 1/3.78 | 11.34 | 185 | 88 | 273 | 23.62 | 0.4255 | 3,000 |
PIGEON | 3/0 | 85.03 | 14.19 | 99.22 | 6/4.25 | 1/4.25 | 12.75 | 233 | 110 | 343 | 29.41 | 0.3373 | 2,500 |
PENGUIN | 4/0 | 107.23 | 17.87 | 125.1 | 6/4.77 | 1/4.77 | 14.31 | 294 | 139 | 433 | 37.06 | 0.2675 | 2,000 |
WAXWING | 266.8 | 135.16 | 7.48 | 142.64 | 16/3.09 | 1/3.09 | 15.45 | 373 | 58 | 431 | 30.27 | 0.2133 | 3,500 |
PARTRIDGE | 266.8 | 135.16 | 22 | 157.16 | 26/2.57 | 7/2.00 | 16.28 | 374 | 172 | 546 | 50.29 | 0.2143 | 2,500 |
OSTRICH | 300 | 152 | 24.71 | 176.11 | 26/2.73 | 7/2.12 | 17.28 | 421 | 193 | 614 | 56.52 | 0.1906 | 3,000 |
MERUN | 336.4 | 170.45 | 9.48 | 179.93 | 16/3.47 | 1/3.47 | 17.35 | 470 | 74 | 544 | 38.23 | 0.1691 | 2,000 |
LINNET | 336.4 | 170.45 | 27.81 | 198.26 | 26/2.89 | 7/2.25 | 18.31 | 472 | 217 | 689 | 62.71 | 0.1699 | 2,500 |
ORIOLE | 336.4 | 170.45 | 39.81 | 210.26 | 30/2.69 | 7/2.69 | 18.83 | 473 | 311 | 784 | 77.27 | 0.1704 | 3,000 |
CHICKADEE | 397.5 | 201.42 | 11.16 | 212.58 | 16/3.77 | 1/3.77 | 18.85 | 555 | 87 | 642 | 43.99 | 0.1431 | 2,500 |
BRANT | 397.5 | 201.42 | 26.13 | 227.55 | 24/3.27 | 7/2.18 | 19.61 | 558 | 204 | 762 | 64.69 | 0.1438 | 2,000 |
IBIS | 397.5 | 201.42 | 32.77 | 234.19 | 26/3.14 | 7/2.44 | 19.88 | 558 | 256 | 814 | 72.11 | 0.1438 | 2,500 |
LARK | 397.5 | 201.42 | 48.97 | 248.39 | 30/2.92 | 7/2.92 | 20.44 | 560 | 367 | 927 | 88.69 | 0.1442 | 2,500 |
PELICAN | 477 | 241.68 | 13.42 | 255.1 | 18/4.14 | 1/4.14 | 20.7 | 666 | 105 | 771 | 52.16 | 0.1193 | 2,000 |
FLICKER | 477 | 241.68 | 31.29 | 272.97 | 24/3.58 | 7/2.39 | 21.49 | 670 | 245 | 915 | 76.66 | 0.1199 | 3,000 |
HAWK | 477 | 241.68 | 39.42 | 281.1 | 26/3.44 | 7/2.67 | 21.79 | 670 | 308 | 978 | 86.65 | 0.1199 | 2,000 |
HEN | 477 | 241.68 | 56.39 | 298.07 | 30/3.20 | 7/3.20 | 22.4 | 671 | 441 | 1,112 | 105.34 | 0.1201 | 2,000 |
OSPREY | 556.5 | 282 | 15.68 | 297.68 | 18/4.47 | 1/4.47 | 22.35 | 777 | 122 | 899 | 60.88 | 0.1022 | 2,000 |
PARAKEET | 556.5 | 282 | 36.58 | 318.58 | 24/3.87 | 7/2.58 | 23.22 | 781 | 286 | 1,067 | 88.22 | 0.1027 | 3,000 |
DOVE | 556.5 | 282 | 45.94 | 327.94 | 26/3.72 | 7/2.89 | 23.55 | 781 | 359 | 1,140 | 101.03 | 0.1027 | 3,000 |
EAGLE | 556.5 | 282 | 65.81 | 347.81 | 30/3.46 | 7/3.46 | 24.21 | 783 | 515 | 1,298 | 122.92 | 0.103 | 3,500 |
PEACOCK | 605 | 306.58 | 39.74 | 346.32 | 24/4.03 | 7/2.69 | 24.2 | 849 | 311 | 1,160 | 95.88 | 0.0945 | 3,000 |
SQUAB | 605 | 306.58 | 49.94 | 356.52 | 26/3.87 | 7/3.01 | 24.51 | 850 | 390 | 1,240 | 108.14 | 0.0945 | 3,000 |
WOOD DUCK | 605 | 306.58 | 71.55 | 378.13 | 30/3.61 | 7/3.61 | 25.25 | 851 | 560 | 1,411 | 128.84 | 0.0947 | 3,000 |
TEAL | 605 | 306.58 | 69.87 | 376.45 | 30/3.61 | 19/2.16 | 25.24 | 851 | 548 | 1,399 | 133.59 | 0.0947 | 2,000 |
KINGBIRD | 636 | 322.26 | 17.9 | 340.16 | 18/4.78 | 1/4.78 | 23.88 | 889 | 139 | 1,028 | 69.55 | 0.08945 | 2,000 |
ROOK | 636 | 322.26 | 41.81 | 364.07 | 24/4.14 | 7/2.76 | 24.84 | 893 | 326 | 1.219 | 100.63 | 0.08989 | 2,500 |
Code | Area | Stranding & Wire Diameter | Approx. Overall Dia. | Weight | Nom. Breaking Load | Nom.DC Resistance at 20℃ | Std. Length | ||||||
Nom.Alum | Alum. | Steel | Total | Alum. | Steel | Alum. | Steel | Total | |||||
mm² | mm² | mm² | mm² | mm | mm | mm | kg/km | kg/km | kg/km | KN | Ohm/Km | m. ±5% | |
GROSBEAK | 636 | 322.26 | 52.45 | 374.71 | 26/3.97 | 7/3.09 | 25.15 25.88 | 893 | 409 | 1,302 | 111.8 | 0.08989 | 3,000 |
SCOTER | 636 | 322.26 | 75.22 | 397.48 | 30/3.70 | 7/3.70 | 895 | 589 | 1,484 | 135.44 | 0.09011 | 3,000 | |
EGRET | 636 | 322.26 | 73.55 | 395.8 | 30/3.70 | 19/2.22 | 25.9 | 894 | 576 | 1,470 | 140.3 | 0.09011 | 3.000 |
SWIFT | 636 | 322.26 | 8.96 | 331.22 | 36/3.38 | 1/3.38 | 23.62 | 888 | 70 | 958 | 60.52 | 0.08945 | 2,000 |
FLAMINGO | 666.6 | 337.74 | 43.81 | 381.55 | 24/4.23 | 7/2.82 | 25.4 | 936 | 342 | 1,278 | 105.68 | 0.08577 | 2,500 |
GANNET | 666.6 | 337.74 | 55.03 | 392.77 | 26/4.07 | 7/3.16 | 25.76 | 938 | 429 | 1,365 | 117.33 | 0.08577 | 2,500 |
STILT | 715.5 | 362.58 | 46.97 | 409.55 | 24/4.39 | 7/2.92 | 26.31 | 1,005 | 367 | 1,372 | 113.35 | 0.07989 | 2,000 |
STARLING | 715.5 | 362.53 | 59.03 | 421.61 | 26/4.21 | 7/3.28 | 26.68 | 1,005 | 461 | 1,466 | 125.91 | 0.07989 | 2,500 |
REDWING | 715.5 | 362.58 | 82.58 | 445.16 | 30/3.92 | 19/2.35 | 27.43 | 1,006 | 647 | 1,653 | 153.94 | 0.08009 | 2,000 |
TERN | 795 | 402.84 | 27.87 | 430.71 | 45/3.38 | 7/2.25 | 27.03 | 1,116 | 217 | 1,333 | 97.37 | 0.07191 | 2,500 |
CONDOR | 795 | 402.84 | 52.19 | 455.03 | 54/3.08 | 7/3.08 | 27.72 | 1,116 | 408 | 1,524 | 124.45 | 0.07191 | 3,000 |
CUCKOO | 795 | 402.84 | 52.19 | 455.03 | 24/4.62 | 7/3.08 | 27.74 | 1,116 | 408 | 1,524 | 123.94 | 0.07191 | 2,000 |
DRAKE | 795 | 402.84 | 65.51 | 468.45 | 26/4.44 | 7/3.45 | 28.11 | 1,116 | 512 | 1.628 | 139.92 | 0.07191 | 2,000 |
COOT | 795 | 402.84 | 11.16 | 414 | 36/3.77 | 1/3.77 | 26.41 | 1,110 | 88 | 1,198 | 74.34 | 0.07156 | 3,000 |
MALLARD | 795 | 402.84 | 91.87 | 484.71 | 30/4.14 | 19/2.48 | 28.96 | 1,119 | 719 | 1.838 | 171.18 | 0.07208 | 2,500 |
RUDDY | 900 | 456.06 | 31.54 | 487.6 | 45/3.59 | 7/2.40 | 28.73 | 1,263 | 247 | 1,510 | 108.96 | 0.06351 | 2,000 |
CANARY | 900 | 456.06 | 59.1 | 515.6 | 54/3.28 | 7/3.28 | 29.52 | 1,263 | 461 | 1,724 | 140.95 | 0.06351 | 2,000 |
RAIL | 954 | 483.42 | 33.42 | 516.84 | 45/3.70 | 7/2.47 | 29.61 | 1,339 | 262 | 1,601 | 115.63 | 0.05992 | 2,000 |
CATBIRD | 954 | 483.42 | 13.42 | 496.84 | 36/4.14 | 1/4.14 | 28.95 | 1,333 | 105 | 1,438 | 87.65 | 0.05962 | 2,500 |
CARDINAL | 954 | 483.42 | 62.65 | 546.07 | 54/3.38 | 7/3.38 | 30.42 | 1,339 | 490 | 1,829 | 149.36 | 0.05992 | 2,500 |
ORTLAN | 1,033.5 | 523.68 | 36.19 | 559.87 | 45/3.85 | 7/2.57 | 30.81 | 1,451 | 283 | 1,734 | 123.1 | 0.05531 | 2,000 |
TANGER | 1,033.5 | 523.68 | 14.51 | 538.19 | 36/4.30 | 1/4.30 | 30.12 | 1,443 | 113 | 1,556 | 94.93 | 0.05504 | 2,000 |
CURLEW | 1,033.5 | 523.68 | 67.87 | 591.55 | 54/3.52 | 7/3.52 | 31.68 | 1,451 | 530 | 1,981 | 161.8 | 0.05531 | 2,000 |
BLUEJAY | 1,113 | 563.93 | 39.03 | 602.96 | 45/4.00 | 7/2.66 | 31.98 | 1,563 | 385 | 1,868 | 132.63 | 0.05136 | 2,500 |
FINCH | 1,113 | 563.93 | 71.55 | 635.48 | 54/3.65 | 19/2.19 | 32.85 | 1,570 | 580 | 2,130 | 174.41 | 0.05161 | 2,000 |
BUNTING | 1,192.5 | 604.26 | 41.55 | 645.81 | 45/4.14 | 7/2.76 | 33.12 | 1,674 | 327 | 2,001 | 141.79 | 0.04793 | 2.500 |
GRACKLE | 1,192.5 | 604.26 | 76.58 | 680.84 | 54/3.77 | 19/2.27 | 33.97 | 1,682 | 600 | 2,282 | 188.38 | 0.04817 | 2,000 |
BITTERN | 1,272 | 644.51 | 44.52 | 689.03 | 45/4.27 | 7/2.85 | 34.17 | 1,785 | 349 | 2,134 | 151.48 | 0.04494 | 2,500 |
PHEASANT | 1,272 | 644.51 | 81.63 | 726.19 | 54/3.90 | 19/2.34 | 35.1 | 1,795 | 638 | 2,433 | 194 | 0.04516 | 2.000 |
SKYLARK | 1,272 | 644.51 | 17.87 | 662.38 731.94 | 36/4.78 | 1/4.78 | 33.42 | 1.777 | 140 | 1.917 | 115.85 | 0.04472 | 2,000 |
DIPPER | 1,351.5 | 684.84 684.84 | 47.1 | 45/4.40 | 7/2.92 | 35.16 | 1,898 | 368 | 2,266 | 160.7 | 0.0423 | 2,000 | |
MARTIN | 1,351.5 | 88.71 | 771.55 775.42 | 54/4.02 | 19/2.41 | 36.17 | 1,906 | 679 | 2,585 | 206.05 | 0.0425 | 2,000 | |
BOBOLINK | 1,431 | 725.1 | 50.32 | 45/4.53 | 7/3.02 | 36.24 | 2,009 | 393 | 2,402 | 170.71 | 0.03994 | 2,000 | |
PLOVER | 1,431 | 725.1 | 91.87 | 816.97 | 54/4.14 | 19/2.48 | 37.24 | 2,019 | 719 | 2,738 | 218.24 | 0.04013 | 2,500 |
NUTHATCH | 1,510.5 | 765.35 | 52.9 | 818.25 | 45/4.65 | 7/3.10 | 37.2 | 2,120 | 414 | 2,534 2,890 2,667 3,042 222 | 177.89 | 0.03784 | 2,000 |
PARROT | 1,510.5 | 765.35 | 96.84 | 862.19 | 54/4.25 | 19/2.55 | 38.25 | 2,131 | 759 | 230.2 | 0.03802 | 2,000 | |
LAPWING | 1,590 | 805.68 | 55.48 102.13 | 861.16 | 45/4.77 | 7/3.18 | 38.16 | 2,232 2,243 | 435 799 | 187.02 | 0.03595 | 2,000 | |
FALCON | 1,590 | 805.68 | 907.81 | 54/4.36 | 19/2.62 | 39.26 | 242.55 | 0.03613 | 2,000 | ||||
GROUSE | 80 | 40.52 | 14.13 | 54.65 | 8/2.54 | 1/4.24 | 9.32 | 112 | 110 | 23.6 | 0.7115 | 2,500 | |
PETREL | 101.8 | 51.61 | 30.06 | 81.67 | 12/2.34 | 7/2.34 | 11.71 12.22 13.46 | 143 156 189 | 235 256 311 367 409 441 722 488 | 378 412 500 590 657 709 1007 785 | 41.75 | 0.5613 | 2,000 2,000 2,000 2,000 2,000 3,000 2,500 3.000 |
MINORCA | 110.8 | 56.13 | 32.77 | 88.9 | 12/2.44 | 7/2.44 | 51.25 61.7 72.55 78.5 84.8 128.8 93.9 | 0.5161 0.4248 0.3595 0.3237 0.2995 0.2813 0.2705 | |||||
LEGHORN | 134.6 | 68.19 | 39.81 | 108 | 12/2.69 | 7/2.69 | |||||||
GUINEA DOTTEREL DORKING | 159 | 80.58 | 46.97 | 127.55 | 12/2.92 | 7/2.92 | 14.63 15.42 16.03 18.14 16.84 | 223 248 266 285 297 | |||||
176.9 | 89.48 | 52.19 | 141.67 | 12/3.08 | 7/3.08 | ||||||||
190.8 203.2 211.8 | 96.71 102.97 107.1 | 56.39 91.87 62.45 | 153. 94.84 169.55 | 12/3.20 18/2.86 12/3.37 | 7/3.20 19/2.48 7/3.37 | ||||||||
BRAHMA COCHIN | |||||||||||||
AACSR
Product: STEEL REINFORCED CONDUCTORS
Standards:Typical ALLALUMINUMALLOY NFC 34- 125
drawing:East Energy Electrical Engineering
Designation | Steel Area | Al Alloy Area | Tot. | Equival -ent CU Area | Number | Approx. Overall Dia. | Nom. Breaking Load | Nom.DC Resistance at 20℃ | Std. Weight | Std. Length | ||||
Steel | Al Alloy | Steel Core | Comp lete Cond. | |||||||||||
mm² | mm² | mm² | mm² | No. | No. | mm | mm | daN | Ohm/kM | kg/km | m±5% | |||
PHLOX 37-7 | 9.42 | 28.27 | 37.69 | 15.4 | 3 | 2.00 | 9 | 2.00 | 4.3 | 8.3 | 2,360 | 1.17 | 155 | 4,000 |
PHLOX 59-7 | 21.99 | 37.7 | 59.69 | 20.6 | 7 | 2.00 | 12 | 2.00 | 6 | 10 | 4,560 | 0.88 | 276 | 4,000 |
PHLOX 75-5 | 27.83 | 47.71 | 75.54 | 26 | 7 | 2.25 | 12 | 2.25 | 6.75 | 11.25 | 5,770 | 0.695 | 348 | 3,000 |
PHLOX 116-2 | 59.69 | 56.55 | 116.24 | 30.9 | 19 | 2.00 | 18 | 2.00 | 10 | 14 | 10,815 | 0.58 | 636 | 3,000 |
PHLOX 147-1 | 75.54 | 71.57 | 147.11 | 39.1 | 19 | 2.25 | 18 | 2.25 | 11.25 | 15.75 | 13,685 | 0.466 | 802 | 3,000 |
PASTEL 147-1 | 27.83 | 119.28 | 147.11 | 65.2 | 7 | 2.25 | 30 | 2.25 | 6.75 | 15.75 | 8,185 | 0.279 | 547 | 3,000 |
PHLOX181-6 | 93.27 | 88.36 | 181.63 | 48.3 | 19 | 2.50 | 18 | 2.50 | 12.5 | 17.5 | 16,895 | 0.378 | 990 | 3,000 |
PASTEL 181-6 | 34.36 | 147.26 | 181.62 | 80.5 | 7 | 2.50 | 30 | 2.50 | 7.5 | 17.5 | 10,120 | 0.227 | 675 | 3,000 |
PHLOX 228 | 116.99 | 110.83 | 227.82 | 60.5 | 19 | 2.80 | 18 | 2.80 | 14 | 19.6 | 21,200 | 0.3 | 1,244 | 2,000 |
PASTEL 228 | 43.1 | 184.72 | 227.82 | 101 | 7 | 2.80 | 30 | 2.80 | 8.4 | 19.6 | 12,680 | 0.18 | 848 | 2,000 |
PHLOX 288 | 148.07 | 140.28 | 288.35 | 76.6 | 19 | 3.15 | 18 | 3.15 | 15.75 | 22.05 | 26,800 | 0.237 | 1,570 | 2,000 |
PASTEL 288 | 54.55 | 233.8 | 288.35 | 127.7 | 7 | 3.15 | 30 | 3.15 | 9.45 | 22.05 | 16,050 | 0.142 | 1,074 | 2,000 |
PASTEL 299 | 93.27 | 206.17 | 299.44 | 112.7 | 19 | 2.50 | 42 | 2.50 | 12.5 | 22.5 | 20,875 | 0.162 | 1,320 | 2,000 |
PHLOX 94-1 | 42.12 | 51.95 | 94.07 | 28.4 | 19 | 1.68 | 15 | 2.10 | 8.4 | 12.8 | 8,035 | 0.642 | 481 | 4,000 |
PASTEL412 | 85.95 | 325.72 | 411.67 | 178 | 19 | 2.40 | 32 | 3.60 | 12 | 26.4 | 20,830 | 0.103 | 1,593 | 2,500 |
AAAC
Product: ALLALUMINUM ALLOY CONDUCTORS
Standards: ASTM B 399
Typical drawing:
Code | Area | Size and Stranding of ACSR with Equal Diameter | No.and Diameter of Wires | Overall Diameter | Weight | Nominal Breaking Load | Standard Length | ||
Nominal | Actual | ||||||||
MCM | mm² | AWG or MCM | Al/Steel | mm | mm | kg/km | KN | M±5 | |
AKRON | 30.58 | 15.48 | 6 | 6/1 | 7×1.68 | 5.04 | 42.7 | 4.92 | 3,000 |
ALTON | 48.69 | 24.71 | 4 | 6/1 | 7×2.12 | 6.35 | 68 | 7.84 | 3,000 |
AMES | 77.47 | 39.22 | 2 | 6/1 | 7×2.67 | 8.02 | 108 | 12.45 | 2,000 |
AZUSA | 123.3 | 62.38 | 1/0 | 6/1 | 7×3.37 | 10.11 | 172 | 18.97 | 2,000 |
ANAHEIM | 155.4 | 78.65 | 2/0 | 6/1 | 7×3.78 | 11.35 | 217 | 23.93 | 3,000 |
AMHERST | 195.7 | 99.22 | 3/0 | 6/1 | 7×4.25 | 12.75 | 273 | 30.18 | 2,500 |
ALLIANCE | 246.9 | 125.1 | 4/0 | 6/1 | 7×4.77 | 14.31 | 345 | 38.05 | 2,000 |
BUTTE | 312.8 | 158.6 | 266.8 | 26/7 | 19×3.26 | 16.3 | 437 | 48.76 | 3,000 |
CANTON | 394.5 | 199.9 | 336.4 | 26/7 | 19×3.66 | 18.3 | 551 | 58.91 | 2,500 |
CAIRO | 465.4 | 235.8 | 397.5 | 26/7 | 19×3.98 | 19.88 | 650 | 69.48 | 2,000 |
DARIEN | 559.5 | 283.5 | 477 | 26/7 | 19×4.36 | 21.79 | 781 | 83.52 | 2,000 |
ELGIN | 652.4 | 330.6 | 556.5 | 26/7 | 19×4.71 | 23.54 | 911 | 97.42 | 1,500 |
FLINT | 740.8 | 375.3 | 636 | 26/7 | 37×3.59 | 25.16 | 1,035 | 108.21 | 3,000 |
GREELEY | 927.2 | 469.8 | 795 | 26/7 | 37×4.02 | 28.14 | 1,295 | 135.47 | 2,500 |
AAAC
Product: ALLALUMINUM ALLOY CONDUCTORS
Standards: ASTM B 399
Typical drawing:
Area | Stranding and Wire Diameter | Approx. Overall Diameter | Weight | Nominal Breaking Load | Nominal DC Resistance at 20℃ | Standard Length | |
Nominal | Actual | ||||||
AWG or MCM | mm² | mm | mm | kg/km | KN | Ohm/kM | M±5 |
6 | 13.3 | 7/1.554 | 4.67 | 37 | 4.22 | 2.5199 | 3,500 |
4 | 21.15 | 7/1.961 | 5.89 | 58 | 6.71 | 1.5824 | 3,000 |
2 | 33.63 | 7/2.474 | 7.42 | 93 | 10.68 | 0.9942 | 2,500 |
1/0 | 53.48 | 7/3.119 | 9.36 | 148 | 16.97 | 0.6256 | 2,000 |
2/0 | 67.42 | 7/3.503 | 10.51 | 186 | 20.52 | 0.4959 | 3,500 |
3/0 | 85.03 | 7/3.932 | 11.8 | 234 | 25.86 | 0.3936 | 3,000 |
4/0 | 107.23 | 7/4.417 | 13.26 | 296 | 32.63 | 0.3119 | 2,000 |
250 | 126.66 | 19/2.913 | 14.57 | 349 | 38.93 | 0.2642 | 2,000 |
300 | 152.1 | 19/3.193 | 15.97 | 419 | 46.77 | 0.2199 | 3,000 |
350 | 177.35 | 19/3.447 | 17.24 | 489 | 52.25 | 0.1887 | 3,000 |
400 | 202.71 | 19/3.686 | 18.43 | 559 | 59.74 | 0.165 | 2,500 |
450 | 228 | 19/3.909 | 19.55 | 629 | 67.19 | 0.1467 | 2,000 |
500 | 253.35 | 19/4.120 | 20.6 | 698 | 74.64 | 0.1321 | 2,000 |
550 | 278.6 | 37/3.096 | 21.67 | 768 | 83.8 | 0.1202 | 2,000 |
600 | 303.8 | 37/3.233 | 22.63 | 838 | 91.38 | 0.1102 | 2,000 |
650 | 329.25 | 37/3.366 | 23.56 | 908 | 97.94 | 0.1016 | 2,000 |
700 | 354.55 | 37/3.493 | 24.45 | 978 | 102.2 | 0.0944 | 3,500 |
750 | 380.2 | 37/3.617 | 25.32 | 1,049 | 109.6 | 0.088 | 3,000 |
800 | 405.15 | 37/3.734 | 26.14 | 1,117 | 116.8 | 0.0826 | 3,000 |
900 | 456.16 | 37/3.962 | 27.73 | 1,258 | 131.5 | 0.0733 | 3,000 |
1,000 | 506.71 | 37/4.176 | 29.23 | 1,399 | 146.1 | 0.066 | 2,500 |
AAAC
Product: ALLALUMINUM ALLOY CONDUCTORS
Standards: BS EN 50182
Typical drawing:
Code | Area | Stranding and Wire Dia. | Approx. Oyerall Diameter | Weight | Nominal Breaking Load | Nominal DC Resistance at 20℃ | Standard Length | |
Nominal | Actual | |||||||
mm² | mm² | mm | mm | kg/km | KN | Ohm/kM | M±5 | |
10 | 11.9 | 7/1.47 | 4.41 | 32 | 3.33 | 2.277 | 2,500 | |
BOX | 15 | 18.8 | 7/1.85 | 5.55 | 51 | 5.27 | 1.749 | 2,000 |
ACACIA | 20 | 23.9 | 7/2.08 | 6.24 | 65 | 6.7 | 1.384 | 2,500 |
ALMOND | 25 | 30.1 | 7/2.34 | 7.02 | 82 | 8.44 | 1.094 | 2,000 |
CEDAR | 30 | 35.5 | 7/2.54 | 7.62 | 97 | 9.95 | 0.9281 | 2,000 |
35 | 42.2 | 7/2.77 | 8.31 | 115 | 11.83 | 0.78 | 2,000 | |
FIR | 40 | 47.8 | 7/2.95 | 8.85 | 131 | 13.4 | 0.688 | 2,500 |
HAZEL | 50 | 59.9 | 7/3.30 | 9.9 | 164 | 16.8 | 0.5498 | 2,000 |
PINE | 60 | 71.7 | 7/3.61 | 10.83 | 196 | 20.1 | 0.4595 | 3,000 |
70 | 84.1 | 7/3.91 | 11.73 | 230 | 23.57 | 0.3917 | 3,000 | |
WILLOW | 75 | 89.8 | 7/4.04 | 12.12 | 246 | 25.17 | 0.3669 | 2,500 |
80 | 96.5 | 7/4.19 | 12.57 | 264 | 27.04 | 0.341 | 2,500 | |
90 | 108.8 | 7/4.45 | 13.35 | 298 | 30.5 | 0.3026 | 2,000 | |
OAK | 100 | 118.9 | 7/4.65 | 13.95 | 325 | 33.3 | 0.2769 | 2,000 |
100 | 118.7 | 19/2.82 | 14.1 | 326 | 33.3 | 0.2786 | 2,000 | |
MULBERRY | 125 | 151.1 | 19/3.18 | 15.9 | 415 | 42.3 | 0.219 | 3,000 |
ASH | 150 | 180.7 | 19/3.48 | 17.4 | 497 | 50.6 | 0.183 | 3,000 |
ELM | 175 | 211 | 19/3.76 | 18.8 | 580 | 59.1 | 0.1568 | 2,500 |
POPLAR | 200 | 239 | 37/2.87 | 20.09 | 660 | 67 | 0.1387 | 2,500 |
225 | 270.3 | 37/3.05 | 21.35 | 744 | 75.7 | 0.1224 | 2,000 | |
SYCAMORE | 250 | 303 | 37/3.23 | 22.61 | 835 | 84.9 | 0.1094 | 2,000 |
UPAS | 300 | 362.1 | 37/3.53 | 24.71 | 998 | 101.5 | 0.09155 | 2,000 |
350 | 421.8 | 37/3.81 | 26.67 | 1163 | 118.2 | 0.0786 | 3,000 | |
YEW | 400 | 479.9 | 37/4.06 | 28.42 | 1323 | 134.5 | 0.06908 | 2,500 |
