Power cables are essential for transmitting electricity to homes, businesses, and industries. But have you ever wondered whether power cables are AC or DC? In this post, we'll explore the differences between AC and DC cables, their applications, and why the type of current affects cable selection.
Alternating current (AC) is a type of electrical current that reverses direction periodically. In an AC system, the voltage alternates between positive and negative cycles, which means the current flows back and forth. This is in contrast to DC, where the current flows in only one direction.
AC is the most common form of power used in homes and businesses because it is easy to transport over long distances. It is also used in power grids, where the voltage is transformed to suit different stages of the power distribution system.
What is AC power? AC power is versatile, reliable, and efficient, making it ideal for large-scale electricity distribution.
Direct current (DC) flows in a single, unidirectional path. The voltage remains constant, meaning it doesn't alternate like AC. In DC, electricity flows steadily in one direction, making it ideal for devices that require a constant and stable power supply.
Common uses of DC power include batteries (like those in phones or flashlights), solar panels, and electronic devices that require a consistent voltage, such as laptops or electric vehicles. Unlike AC, DC is often used for low-voltage, battery-operated applications.
What is DC power? DC power is stable and ideal for applications where steady, uninterrupted energy is required.
AC and DC cables are built differently to handle their respective currents. DC cables typically have a simpler two-wire design. These cables are generally less complex, consisting of a positive and a negative conductor. This simplicity makes DC cables ideal for applications that require low voltage and straightforward power transmission, such as batteries and solar panels.
On the other hand, AC cables are more complex. They often have multi-wire systems, especially in high-voltage or industrial settings. For example, three-phase AC cables consist of three conductors, each carrying alternating current with a phase difference of 120°. This setup makes AC cables better suited for large-scale power distribution systems, where efficient power delivery and the ability to transform voltages are crucial.
AC vs DC cables construction: The structure of AC cables is more intricate, requiring additional insulation and components to handle the alternating current.
The key difference between AC and DC cables lies in how they handle electricity. AC cables deal with alternating current, which means the direction of current flow changes periodically. This creates challenges like skin effect, where current tends to flow more on the surface of the conductor, increasing resistance at higher frequencies. Despite this, AC is highly efficient for long-distance transmission due to its ability to change voltage levels using transformers.
DC cables, on the other hand, carry current that flows in one direction only, making them more stable and efficient for short-distance applications. DC cables are typically used in systems that require a constant, steady power supply, such as in electronic devices or electric vehicles. However, for long-distance transmission, DC systems like high-voltage DC (HVDC) are used due to their reduced energy loss compared to AC cables.
Electrical properties of AC and DC cables: AC is more efficient for long-distance transmission, while DC is ideal for stable, low-voltage applications.

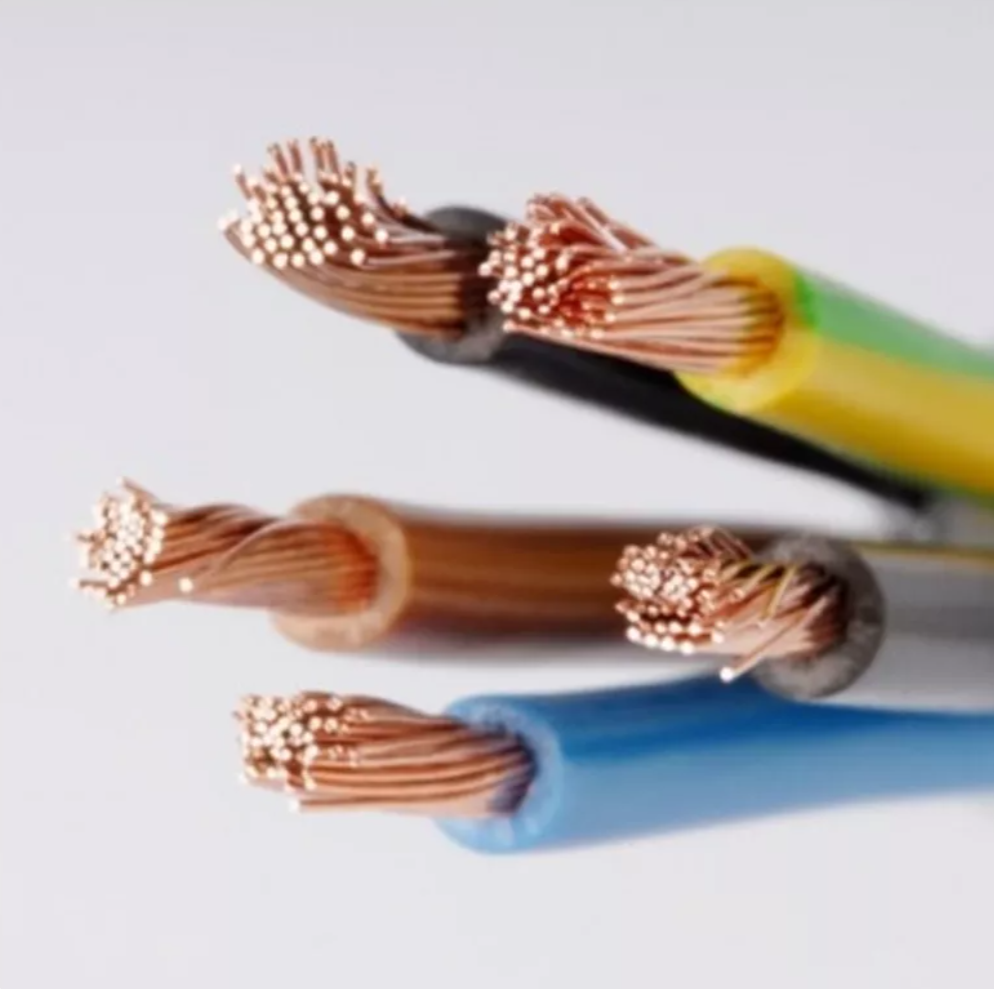

AC power cables are commonly used in systems that distribute electricity over long distances and to residential, commercial, and industrial buildings. There are several types of cables used for AC power transmission:
● AC power distribution cables: These cables are typically used for transmitting power from substations to homes and businesses.
● HT (High Tension) cables: These are used for high-voltage transmission over long distances, reducing energy loss.
● LT (Low Tension) cables: These are used for low-voltage distribution in residential and small-scale applications.
AC cables are essential for everyday power distribution, providing the electricity needed for lighting, appliances, and industrial machinery.
AC power cable usage: These cables are vital for large-scale electricity distribution systems and everyday applications.
DC power cables are specifically designed for systems where the current flows in one direction. Common uses of DC cables include:
● Solar power systems: DC cables are used to transmit electricity from solar panels to inverters or batteries.
● Electric vehicles (EVs): DC cables help charge EV batteries, providing a stable and constant power supply.
● Battery-powered devices: These cables are also used for devices like laptops, phones, and other portable electronics.
DC cables are especially important in renewable energy applications and other systems where constant power is required. They are typically simpler and more direct than AC cables, making them ideal for these specific applications.
DC power cable usage: These cables are essential for solar energy systems, electric vehicles, and any other systems that rely on stable, unidirectional current.
Using an AC cable for DC power can lead to several risks. AC cables are designed to handle the alternating current, which means they often have different insulation and construction compared to DC cables. AC cables can’t effectively handle the constant flow of current in DC systems. This can cause overheating, cable damage, or even fire hazards.
DC requires cables with insulation rated for constant voltage, which is different from the needs of AC cables. When using an AC cable for DC power, the insulation and conductor materials may break down more quickly, reducing the cable's lifespan and safety.
Yes, there are cables specifically designed to handle both AC and DC power. These cables, like certain solar cables or flexible cables, are built with durable insulation that can withstand the demands of both types of current. These cables are often used in hybrid systems where both AC and DC power need to be managed, such as in solar energy setups or electric vehicles that require both charging and power distribution.
The advantage of using cables for both AC and DC is the convenience and cost-effectiveness of having one versatile cable type for multiple uses. These multi-purpose cables save on installation time and reduce the need for different cable types in complex systems.
AC and DC power have distinct characteristics that require different cable designs. In AC, the current reverses direction periodically, which can cause the phenomenon known as the skin effect. This effect forces current to flow more on the surface of the conductor at higher frequencies, increasing resistance and heat generation. To mitigate this, AC cables are designed with thicker insulation and specific conductor materials to handle the alternating flow effectively.
In contrast, DC carries a constant flow of electricity, which does not face the skin effect. DC cables need to be designed for steady, unidirectional current, and their insulation must handle continuous voltage.
AC vs DC cable voltage and current: AC cables need to be designed to handle changing current and frequency, while DC cables are simpler and suited for stable, direct power transmission.
AC and DC cables also require different insulation materials. AC cables often use materials like PVC or XLPE (cross-linked polyethylene) for insulation, designed to withstand the fluctuating voltages and potential stress from alternating current. These materials are also capable of managing higher temperatures and are resistant to aging.
DC cables, however, require insulation that can manage continuous voltage without degrading. Materials like rubber, silicone, or specially rated XLPE are common for DC cables, offering durability and flexibility. These cables are also designed to prevent breakdowns over long periods of steady use.
In terms of safety, AC cables must comply with higher safety standards due to the risk of arcing and electrical faults. DC cables have their own set of safety regulations to prevent issues like short circuits, which can occur if the cable insulation breaks down over time.
Safety and insulation of AC and DC cables: The insulation for AC cables must withstand the periodic voltage changes, while DC cables need stable, long-lasting insulation for continuous flow.
AC cables are highly efficient for long-distance power transmission, thanks to their ability to utilize transformers. Transformers step up the voltage, allowing electricity to travel over vast distances with minimal energy loss. By reducing the current and increasing the voltage, AC reduces the heat loss that typically occurs in power lines.
AC's efficiency for large-scale power grids is unmatched, as it allows for easy voltage adjustments along the way. This makes it ideal for long-distance transmission, where minimal energy loss is crucial. AC is also more adaptable to changes in demand and supply, which helps in optimizing grid performance.
Efficiency of AC cables in power transmission: AC is better suited for transporting electricity over long distances, with minimal energy loss, using high-voltage transmission lines.
DC cables, while not suitable for long-distance transmission like AC, offer great efficiency in short-distance applications. DC systems provide a constant, uninterrupted flow of power, which makes them ideal for applications like solar energy systems, data centers, and battery-operated devices. Since DC does not experience the same losses as AC from the skin effect, it is more efficient for transmitting power directly between a source and its load.
In systems like solar panels, where energy conversion is key, DC cables are the most effective way to transfer power from solar panels to inverters or batteries. DC systems are also highly efficient in circuits where power needs to be stable, making them a popular choice for electronic devices and small-scale applications.
Efficiency of DC power cables: DC cables provide consistent, efficient power delivery in shorter, more controlled applications like solar energy and electronics.
AC and DC power cables differ in structure, electrical properties, and applications. AC cables are ideal for long-distance power transmission, while DC cables excel in short-distance, stable power needs like solar energy and electronics. Choosing the right cable type ensures optimal performance based on specific power requirements.
Are power cables AC or DC? The answer depends on the application and the nature of the current required.
A: No, DC cables are designed for a constant flow of electricity, while AC cables are built for alternating current. Using a DC cable for AC power can lead to overheating and cable failure due to the differences in voltage and current flow.
A: DC power transmission is more efficient for short distances and offers stable, uninterrupted power. It's commonly used in renewable energy systems, such as solar, and electronic devices where steady power is needed.
A: AC cables are generally more expensive to install due to their complexity, especially in high-voltage systems. DC cables, being simpler, are usually cheaper but are more efficient in specific applications like solar and electric vehicles.
