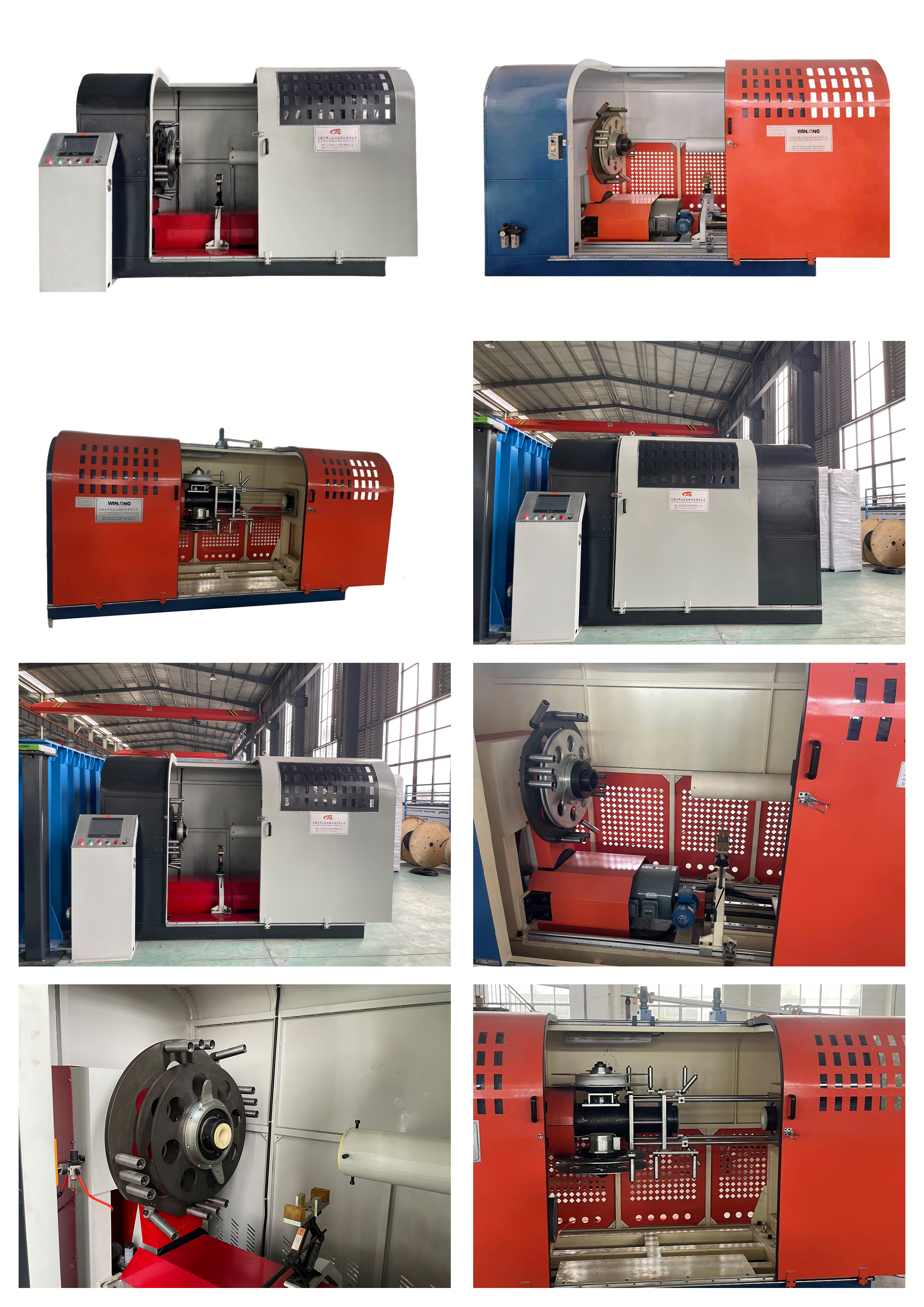

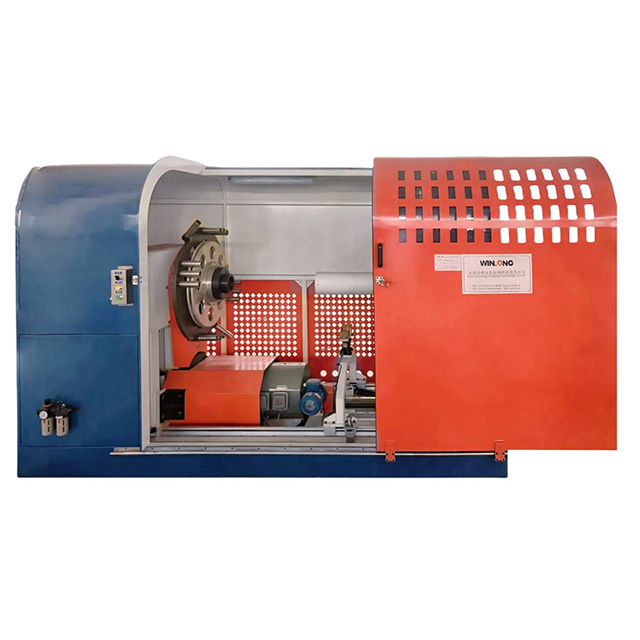

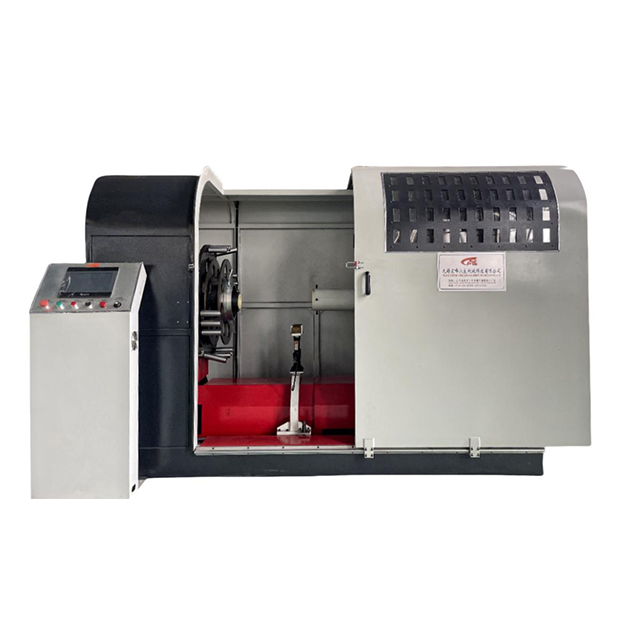

The Copper Tape Shielding Machine by Wuxi Chenfeng Yongliang Machinery Technology Co., Ltd is engineered for high-speed, high-accuracy application of copper tape shielding to cables. Utilizing laser-guided alignment and servo-driven tension control, it achieves 1000 RPM operation with ±0.2mm positional accuracy. Designed for power transmission, data communication, and automotive cables, this machine ensures EMI/RFI shielding integrity while minimizing material waste. Certified to ISO 9001 and CE standards, it is a critical solution for cables requiring robust electromagnetic protection.
Core Selling Points
1. Laser-Guided Alignment: Ensures ±0.2mm precision for seamless copper tape overlap.
2. Servo Tension Control: Maintains ±1% tension uniformity to prevent wrinkles or breaks.
3. High-Speed Shielding: Up to 1000 RPM for large-diameter cables (up to 1500mm).
4. Modular Shielding Heads: Quick-swap tooling for tape widths from 10mm to 50mm.
5. Energy Efficiency: Regenerative braking reduces energy consumption by 25%.
The machine’s rotating spindle system applies copper tape with laser-guided precision, ensuring consistent overlap for EMI shielding effectiveness. The servo-controlled unwinding system dynamically adjusts tension to match cable speed, eliminating tape slack or breakage.
· Tape Compatibility: Processes copper tapes (0.05–0.2mm thickness) with adhesive/non-adhesive backing.
· Anti-Static Design: ESD-safe components protect sensitive materials during high-speed operation.
· Waste Reduction: Precision alignment minimizes tape overlap waste by up to 15%.
· HMI Interface: 12-inch touchscreen for real-time monitoring of RPM, tension, and alignment status.
· IoT Connectivity: OPC UA protocol integration for real-time data sharing with factory automation systems.
· Safety Compliance: Emergency stop, overload protection, and fully enclosed shielding zone.
Parameter | Value |
Shielding Speed | Up to 1000 RPM |
Tape Width Range | 10mm–50mm |
Alignment Accuracy | ±0.2mm |
Motor Power | 55kW (main drive), 4kW (servo) |
Cable Diameter Capacity | 50mm–1500mm |
Certifications | ISO 9001, CE |
