In the modern world, power cables are an essential component for transmitting electrical energy to various devices and systems. Whether you are setting up a home electrical system, an industrial power network, or simply replacing cables in your appliances, understanding the types of power cables is critical. Selecting the right power cable ensures the efficiency, safety, and functionality of your electrical systems.
In this article, we will explore the three primary types of power cables: Low Voltage (LV), Medium Voltage (MV), and High Voltage (HV) power cables. Each type has specific characteristics, voltage ratings, and applications. Let’s dive deeper into understanding these cables, their uses, and why choosing the right power cable matters.
A power cable is a conductor used to transmit electrical energy from one location to another. It typically consists of one or more conductors (wires), an insulating layer to prevent electrical leakage, and an outer sheath for protection. The primary function of power cables is to deliver electricity to power devices like household appliances, industrial machinery, and infrastructure systems.
The core components of a power cable include:
Conductor: The material (usually copper or aluminum) that carries the electrical current.
Insulation: A protective layer around the conductor that prevents short circuits and ensures safety. Common insulation materials include PVC, XLPE, and EPR.
Armor and Sheath: Additional layers that protect the cable from mechanical damage, external factors, and environmental conditions.
Understanding how a power cable functions in transmitting electricity is essential when selecting the appropriate type for your needs.
Power cables are essential in ensuring the safe and efficient distribution of electricity. Whether it's for powering a small household appliance or an industrial power grid, the correct power cable ensures the uninterrupted flow of energy while minimizing risks.
Choosing the wrong power cable can lead to various hazards, including:
Overheating: Using a cable with an insufficient current-carrying capacity can result in overheating and potential fires.
Electric Shock: Damaged or improperly insulated cables can cause electric shocks.
Power Loss: Poor quality cables or the wrong type can lead to voltage drops and energy losses.
Properly selected power cables help maintain safety, prevent damage, and enhance the performance of electrical systems.
When selecting the right power cable, it is essential to understand the different types of power cables available and their specific uses. The three main types of power cables are Low Voltage (LV), Medium Voltage (MV), and High Voltage (HV). Each serves a different purpose and is used in specific applications based on voltage requirements.

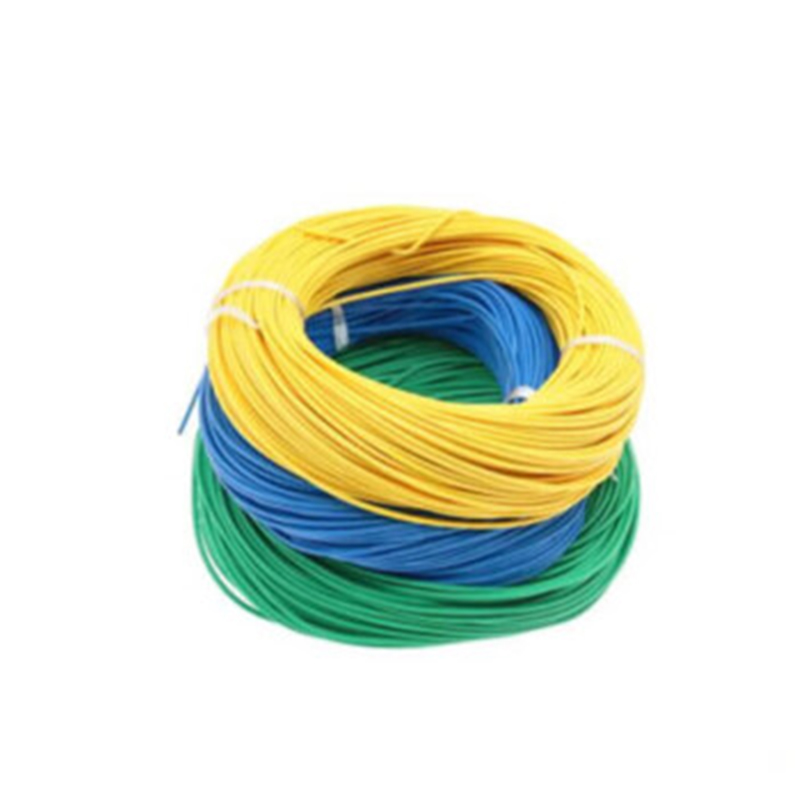

Low Voltage (LV) power cables are designed for electrical systems that operate with a voltage rating up to 1 kV. These cables are commonly used in residential wiring, lighting circuits, and small appliances. The insulation materials used in LV cables are typically PVC or XLPE to provide adequate protection for low-voltage applications.
Voltage Rating: Up to 1 kV
Applications: Residential wiring, lighting, small appliances
Insulation Materials: PVC, XLPE
Construction: Copper or aluminum conductors, PVC/XLPE insulation, optional armor for mechanical protection
Advantages of Low Voltage Power Cables:
Flexibility: These cables are versatile and can be used for various applications, making them the most commonly used type of power cable.
Safety: Low voltage power cables have a reduced risk of electrical hazards compared to higher voltage cables.
Cost-Effectiveness: LV cables are affordable and easy to install, making them ideal for residential and commercial use.
When Should You Use Low Voltage Power Cables?
For applications like home wiring, lighting systems, and small appliances.
In commercial and light industrial buildings where the voltage demand is relatively low.
Medium Voltage (MV) power cables are designed to operate in the voltage range of 1 kV to 36 kV. These cables are primarily used in power distribution networks that transmit electricity from substations to various consumers, such as industrial machinery or commercial facilities. MV cables are constructed with layers of insulation and often include metallic shielding for added protection against electrical faults and external damage.
Voltage Rating: 1 kV to 36 kV
Applications: Power distribution, industrial equipment, substations
Insulation Materials: XLPE, EPR, or PVC
Construction: Stranded copper or aluminum conductors, multiple insulation layers, metallic shielding
Advantages of Medium Voltage Power Cables:
Higher Capacity: MV cables can carry higher electrical loads over greater distances than LV cables.
Versatility: These cables are used in a wide variety of applications, from industrial plants to commercial buildings.
Durability: With metallic shielding, MV cables are more resistant to external damage and electrical faults.
When Should You Use Medium Voltage Power Cables?
For power distribution between substations and local transformers or industrial facilities.
In large commercial buildings, factories, and renewable energy installations.

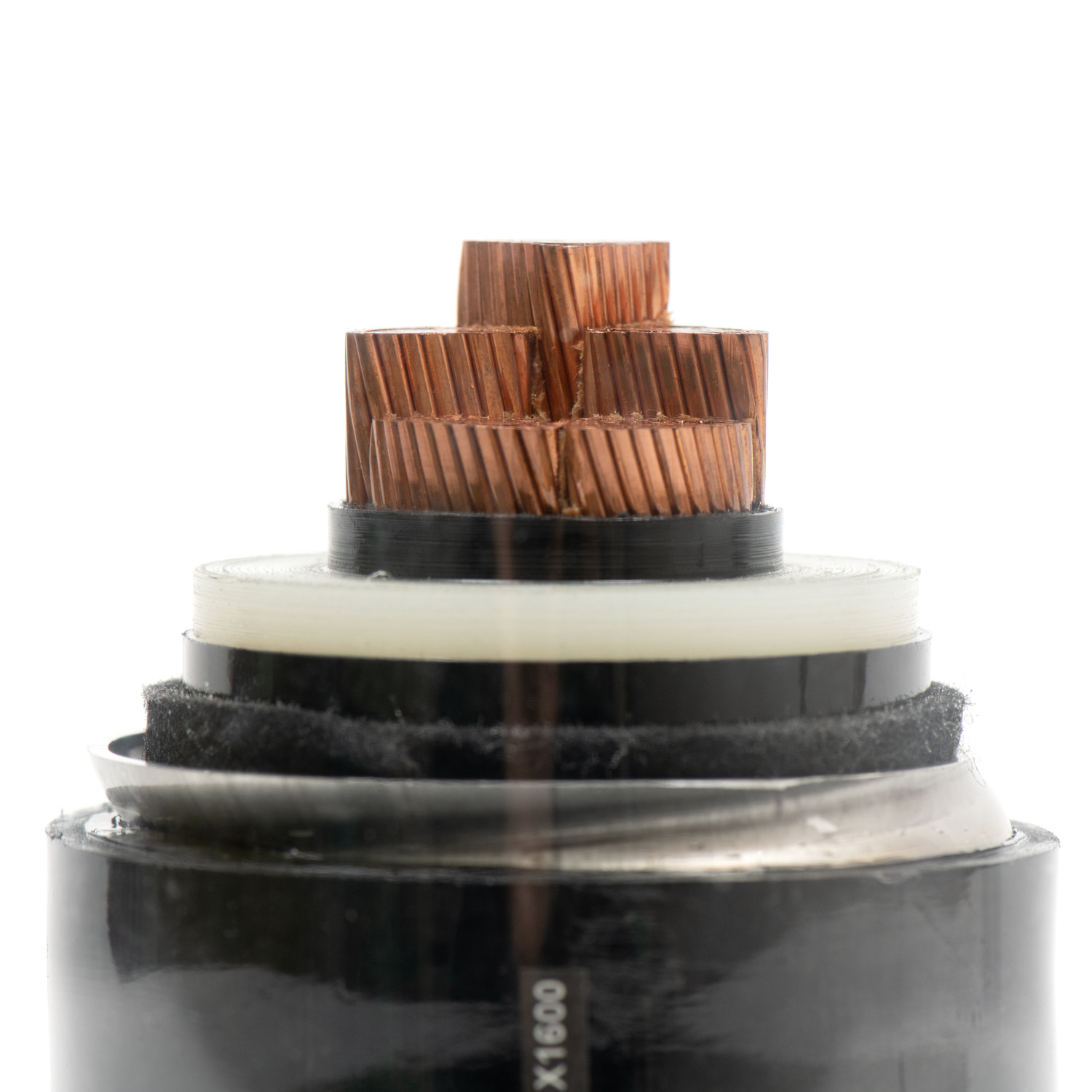

High Voltage (HV) power cables are designed for applications that require voltages above 36 kV. These cables are essential for long-distance power transmission, such as in national and international power grids. HV cables are made with advanced insulation materials like XLPE or EPR, and they often feature additional shielding and armoring to ensure safe operation over long distances.
Voltage Rating: Above 36 kV, often ranging from 69 kV to 800 kV
Applications: Long-distance power transmission, power grids, underground systems
Insulation Materials: XLPE, EPR, oil-impregnated paper
Construction: Multi-layer insulation, copper/aluminum conductors, metallic shielding, armor
Advantages of High Voltage Power Cables:
Efficient Transmission: HV cables allow for the transmission of large amounts of electrical power over long distances with minimal power loss.
Reduced Energy Loss: The higher the voltage, the lower the energy loss during transmission.
Environmental Benefits: Underground HV cables reduce the visual impact and environmental disturbance compared to overhead lines.
When Should You Use High Voltage Power Cables?
For transmitting electricity across cities, countries, and large geographical areas.
For use in national power grids, long-distance transmission systems, and renewable energy projects.
When selecting the right power cable, several factors must be taken into account to ensure safety and efficiency.
H3: Why is Voltage Rating Important for Power Cables?It is essential to choose a power cable with a voltage rating that matches or exceeds the operational voltage of your system. A cable with a lower voltage rating can overheat and cause electrical hazards.
H3: What is Current Carrying Capacity and How Does It Affect Cable Selection?Current-carrying capacity, or ampacity, is the maximum amount of electrical current a cable can carry without overheating. Always choose a power cable with adequate ampacity for your application.
H3: How Do Environmental Conditions Affect Cable Selection?Consider environmental factors such as temperature, humidity, and exposure to chemicals when selecting a power cable. For outdoor use or harsh environments, choose cables with suitable insulation and armoring to withstand these conditions.
H3: Why Do Some Cables Need Extra Mechanical Protection?Cables used in environments prone to physical damage require additional protection. Armored cables offer mechanical protection against impacts and abrasion, ensuring long-term performance.
The quality and safety of power cables are regulated by various standards. These standards ensure that power cables perform optimally in different applications.
The International Electrotechnical Commission (IEC) provides globally recognized standards for power cables, covering insulation materials, voltage ratings, and performance testing.
The National Electrical Manufacturers Association (NEMA) sets standards for electrical products, including power cables. NEMA standards ensure the safety and reliability of cables used in North America.
Underwriters Laboratories (UL) provides certification for power cables in the U.S. UL-listed cables meet safety and performance requirements and are essential for compliance with local electrical codes.
In conclusion, understanding the different types of power cables, such as Low Voltage (LV), Medium Voltage (MV), and High Voltage (HV), is essential for making informed decisions in electrical installations. By considering factors such as voltage rating, current capacity, and environmental conditions, you can choose the power cable that best meets your needs.
