66–500kV XLPE Insulated Power Cables | IEC 60840 & IEC 62067 Compliant
Our 66–500kV XLPE Insulated Power Cables are designed for high-voltage and extra-high-voltage (EHV) power transmission systems. Manufactured in strict compliance with IEC 60840:2011 and IEC 62067:2011, these cables deliver exceptional electrical performance, thermal stability, and long-term reliability for critical grid infrastructure.
Whether you are building a substation, an offshore wind farm, or an underground urban transmission network, our XLPE cables provide a safe, efficient, and durable solution for bulk power delivery.
| Standard | Voltage Range | Scope |
|---|---|---|
| IEC 60840:2011 | 30 kV (Um=36 kV) up to 150 kV (Um=170 kV) | Extruded insulation cables and accessories for HV transmission |
| IEC 62067:2011 | Above 150 kV (Um=170 kV) up to 500 kV (Um=550 kV) | Extruded insulation cables for EHV transmission |
Wide Voltage Range: Covers 66kV, 110kV, 132kV, 220kV, 330kV, 400kV, and 500kV.
XLPE Insulation: Cross-linked polyethylene provides excellent dielectric strength, low partial discharge, and high thermal resistance.
High Current Capacity: Suitable for bulk power transmission with low transmission losses.
Robust Construction: Metallic screen, water-blocking layers, and protective sheath for underground, submarine, and tunnel installation.
Long Service Life: Designed for 30+ years of continuous operation under demanding conditions.
IEC Compliant: Fully tested to IEC 60840 and IEC 62067 type test requirements
Specification of Products
Type | Name |

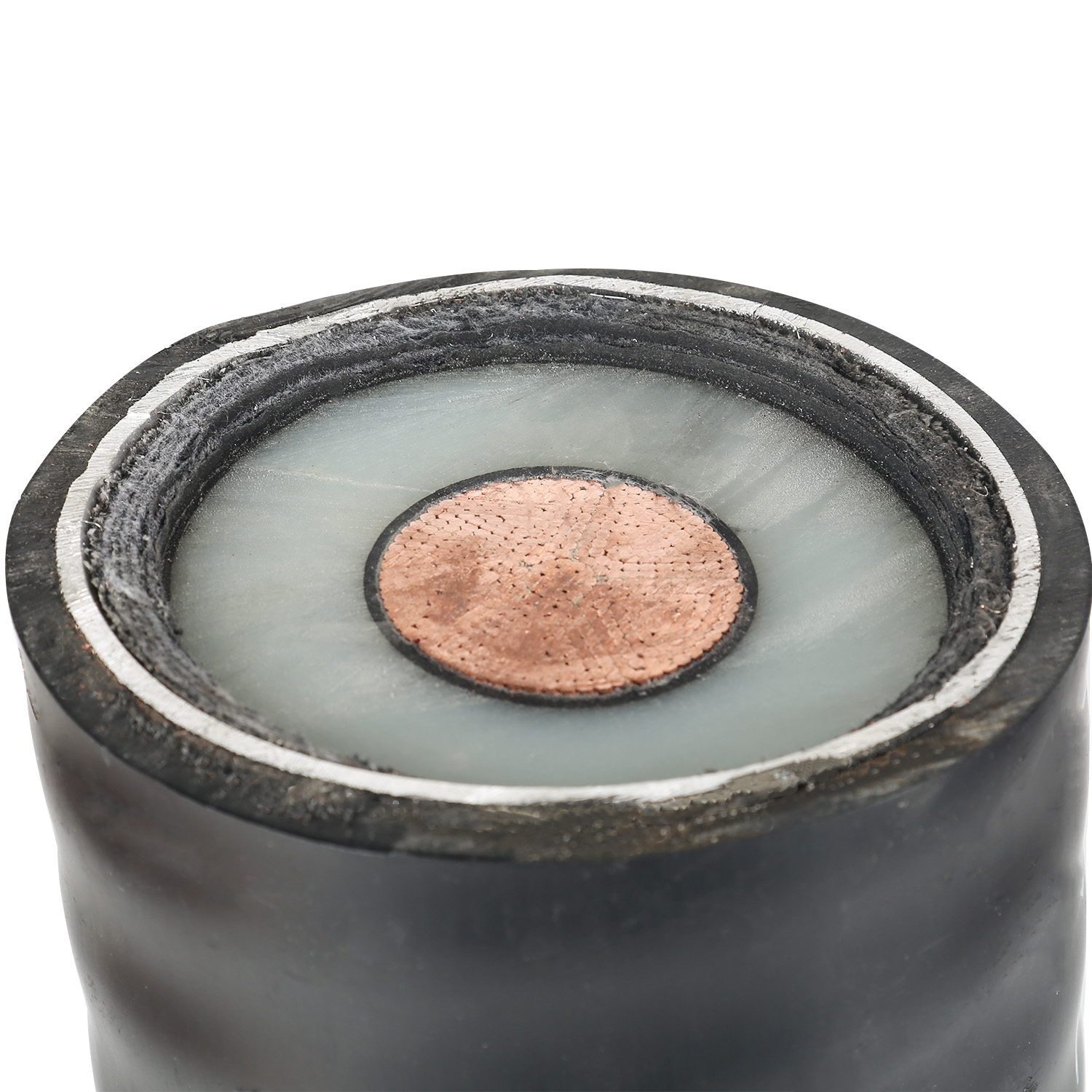

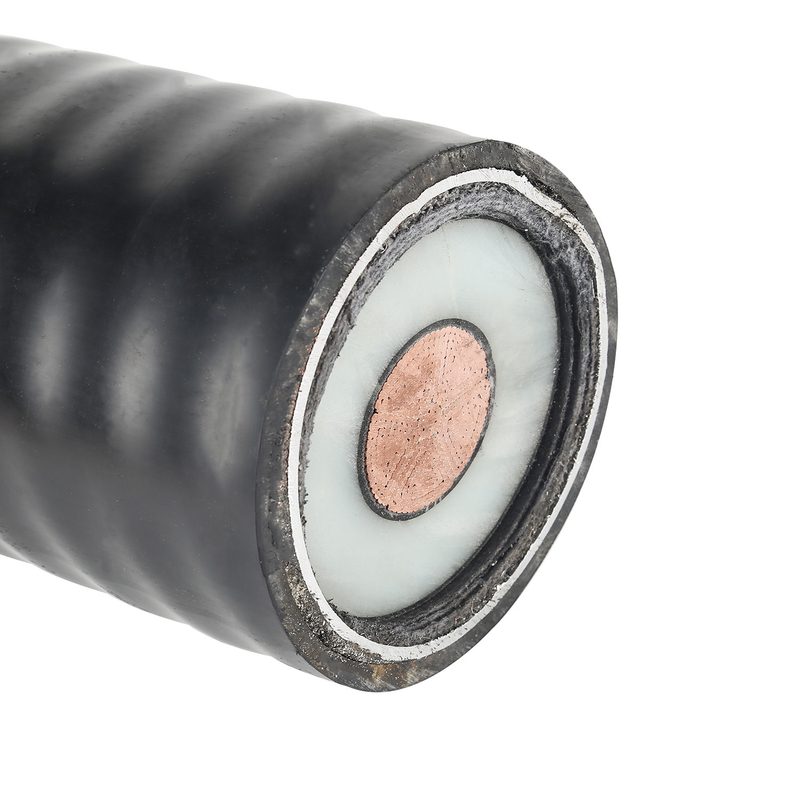

CU/XLPE/CAS/PVC | Copper Conductor XLPE Insulated Corrugated Aluminum Sheath PVC Sheathed Power Cable |
CU/XLPE/CAS/LWR/PVC | Copper Conductor XLPE Insulated Corrugated Aluminum Sheath PVC Sheathed Longitudinal Water Resistant Power Cable |
CU/XLPE/CAS/PE | Copper Conductor XLPE Insulated Corrugated Aluminum Sheath PE Sheathed Power Cable |
CU/XLPE/CAS/LWR/PE | Copper Conductor XLPE Insulated Corrugated Aluminum Sheath PE Sheathed Longitudinal Water Resistant Power Cable |
AL/XLPE/CAS/PVC | Aluminum Conductor XLPE Insulated Corrugated Aluminum Sheath PVC Sheathed Power Cable |
AL/XLPE/CAS/LWR/PVC | Aluminum Conductor XLPE Insulated Corrugated Aluminum Sheath PVC Sheathed Longitudinal Water Resistant Power Cable |
AL/XLPE/CAS/PE | Aluminum Conductor XLPE Insulated Corrugated Aluminum Sheath PE Sheathed Power Cable |
AL/XLPE/CAS/LWR/PE | Aluminum Conductor XLPE Insulated Corrugated Aluminum Sheath PE Sheathed Longitudinal Water Resistant Power Cable |
The Cables
A wide variety of high voltage cable designs is offered by East Energy Electrical Engineering(4E)to provide most economic solutions. Various types of conductors,insulation,metallic screening and sheathing,corrosion protective layers etc.are available.

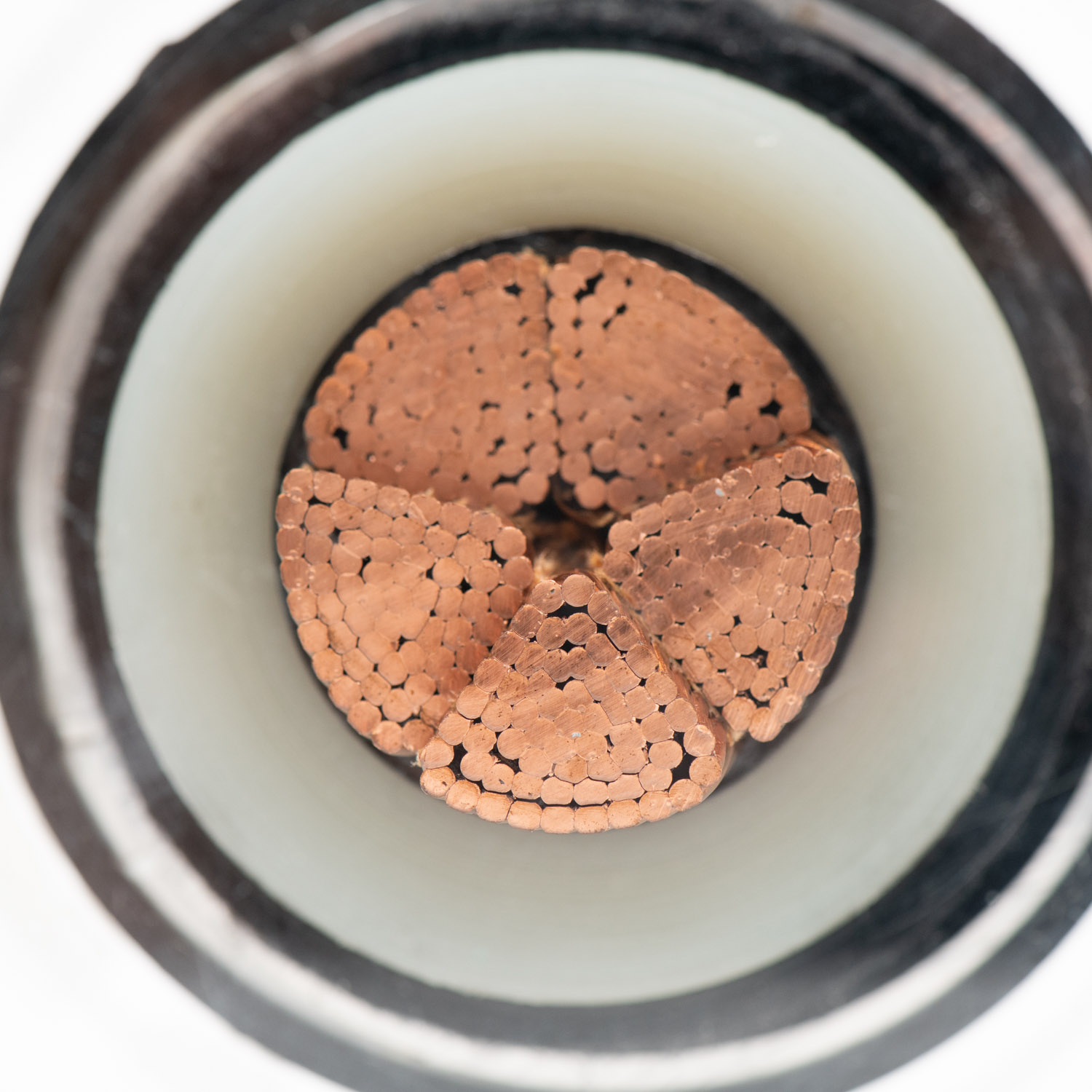

Conductors
The cable conductors can be made of copper or aluminium. The choice is a matter of customer's
preference or current carrying capacity.
