ACSR: Strength and Efficiency for Modern Power Lines
Welcome to 4E Energy! We proudly present our ACSR overhead conductors — engineered to deliver outstanding mechanical strength, efficient power transmission, and long-term reliability. Whether for long-span overhead lines, high-voltage transmission, or demanding environmental conditions, our ACSR conductors are designed to meet the needs of modern power infrastructure with excellence and durability.
Products Introduce
The ACSR conductor combines the conductivity and lightweight advantages of high-purity aluminum with the mechanical strength of a steel core. This hybrid structure enables it to carry high electrical current while sustaining heavy mechanical loads, making it ideal for overhead transmission and distribution lines. Our ACSR is manufactured under strict standards and optimized for long spans, minimal sag, and stable performance — offering a cost-effective solution for utilities and infrastructure projects worldwide.
Product Center
Product Advantages
Our goal is to become a leader in the global home furnishing industry.
Superior Strength & Long-Span Performance
ACSR conductors combine lightweight aluminum with a high-tensile steel core, delivering an exceptional strength-to-weight ratio. This structure enables the conductor to support long spans between towers while minimizing overall load and installation costs. The steel core enhances resistance to mechanical stress, wind, ice, and temperature variations, ensuring stable sag control and dependable long-term operation.
High Conductivity & Cost-Effective Efficiency
With outer layers made of high-purity aluminum, ACSR provides excellent electrical conductivity and low resistance, enabling efficient power transmission over long distances. Compared with all-copper or all-aluminum conductors offering similar performance, ACSR is a more economical solution while still meeting major global standards, making it both cost-efficient and internationally compliant.
Technical Specifications
Our ACSR conductors are designed in accordance with international standards and deliver stable electrical and mechanical performance. Key technical specifications include the following:
Conductor Structure & Material

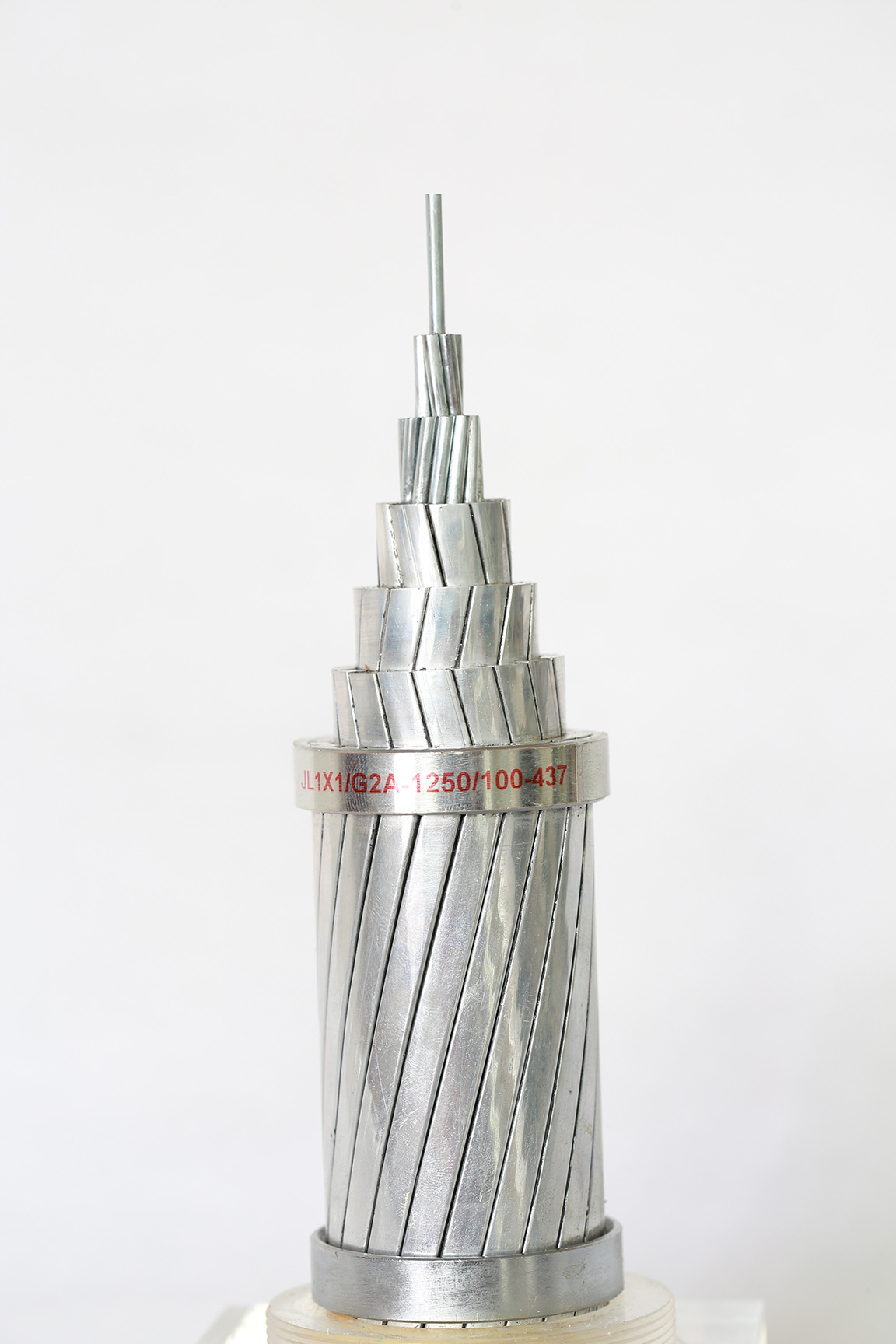

ACSR conductors feature a central core made of galvanized or coated steel wires — available as single-wire or multi-strand options — providing strong tensile reinforcement. Surrounding this core are one or more layers of hard-drawn aluminum strands, ensuring excellent electrical conductivity. This aluminum-steel combination delivers both high mechanical strength and efficient current transmission, making the conductor suitable for long spans and heavy-load environments.
Available Sizes & Ratings
ACSR is manufactured in a wide range of cross-sectional sizes to support various transmission and distribution requirements. Specifications may include conductor diameter, total cross-section, DC resistance, tensile strength, and mass per kilometer. Larger configurations—such as 400/65, 500/85, and 630/100—provide higher current-carrying capacity and improved mechanical performance, allowing customization based on system design and environmental needs.
Performance & Operating Conditions
Standard ACSR conductors typically operate up to approximately 75 °C, maintaining stability under thermal changes and environmental stress. The aluminum strands ensure efficient power transmission, while the steel core minimizes sag and preserves mechanical integrity under wind load, ice accumulation, or long-span installations. These performance characteristics help ensure reliable operation and long service life across diverse operating conditions.
Application
Contact Us
With our team of experienced professionals, we provide reliable technical support and tailored one-stop solutions to meet the needs of customers worldwide. Whether you require product guidance or project assistance, we are here to help you every step of the way.
