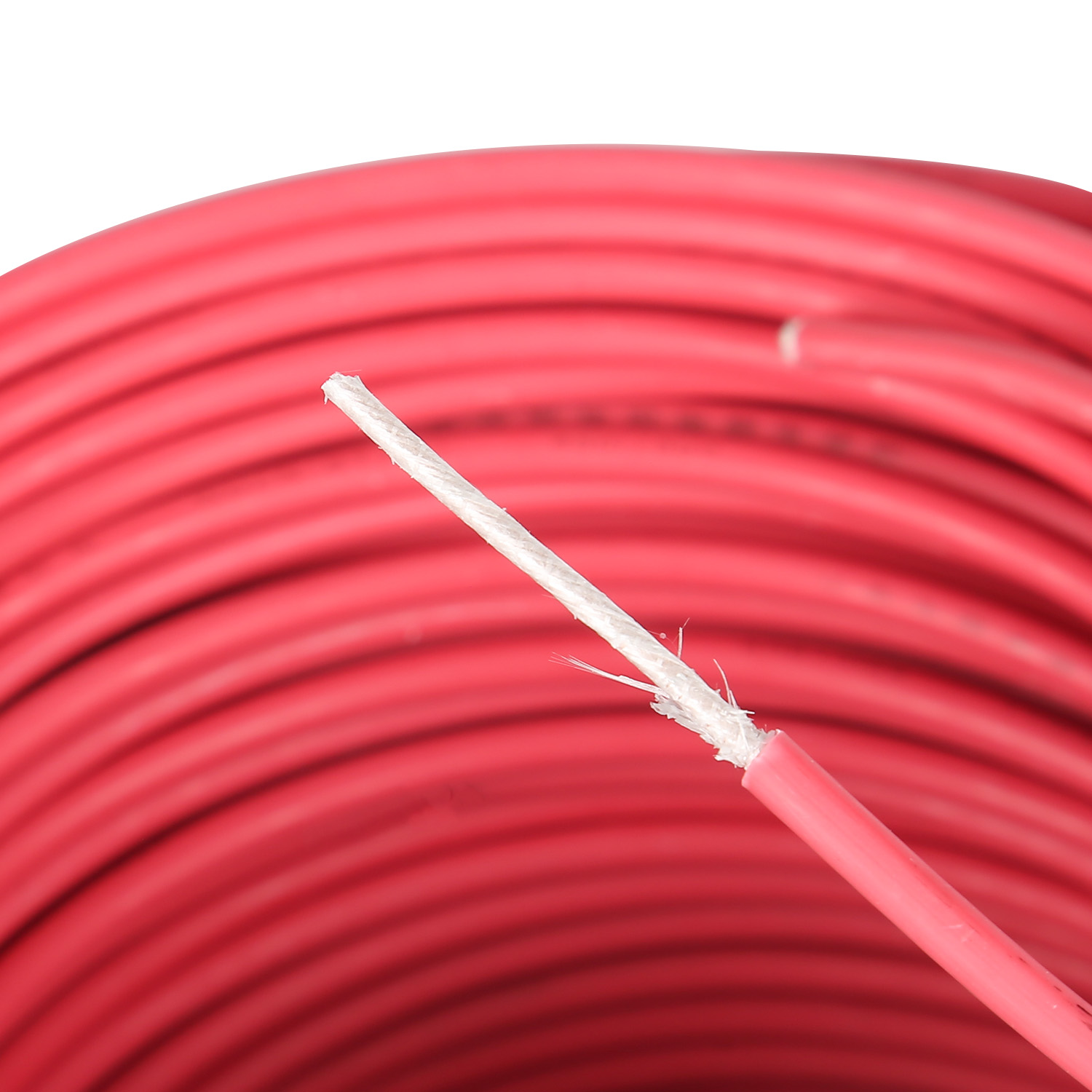

THW UL83 Solid Stranded copper Conductor PVC Insulation Wire

mm²

Construction

mm

mm

kg/km

Ω/km

14 AWG

1

1.63

0.76

3.21

3.97

8.45

12 AWG

1

2.05

0.76

3.63

4.39

5.31

10 AWG

1

2.588

0.76

4.17

4.93

3.34

8 AWG

1

3.264

1.14

5.6

6.74

2.1

6 AWG

1

4.115

1.52

7.22

8.74

1.32

14 AWG

7

0.617

0.76

3.43

4.19

8.62

12 AWG

7

0.773

0.76

3.9

4.66

5.43

10 AWG

7

0.983

0.76

4.53

5.29

3.41

8 AWG

7

1.237

1.14

6.05

7.19

2.14

6AWG

7

1.537

1.52

7.71

9.23

1.35

4 AWG

7

1.963

1.52

8.99

10.51

0.848

2 AWG

7

2.473

1.52

10.52

12.04

0.534

1 AWG

19

1.686

2.03

12.55

14.58

0.423

1/0 AWG

19

1.89

2.03

13.57

15.6

0.335

2/0 AWG

19

2.124

2.03

14.74

16.77

0.266

3/0 AWG

19

2.388

2.03

16.06

18.09

0.211

4/0 AWG

37

1.916

2.03

17.53

19.56

0.167

250 kcmil

37

2.085

2.41

19.48

21.89

0.142

300 kemil

37

2.286

2.41

20.88

23.29

0.118

350 kcmil

37

2.471

2.41

22.18

24.59

0.101

400 kcmil

37

2.641

2.41

23.37

25.78

0.0885

500 kcmil

61

2.294

2.41

25.53

27.94

0.0709

600 kcmil

61

2.52

2.79

28.32

31.11

0.059

700 kemil

61

2.721

2.79

30.13

32.92

0.0506

750 kemil

61

2.817

2.79

30.99

33.78

0.0472

800 kemil

61

2.907

2.79

31.8

34.59

0.0443

900 kemil

61

3.088

2.79

33.43

36.22

0.0393

1000 kcmil

61

3.251

2.79

34.9

37.69

0.0354
