200 Spools/Hour Automatic Spool-Coiling for Electronics

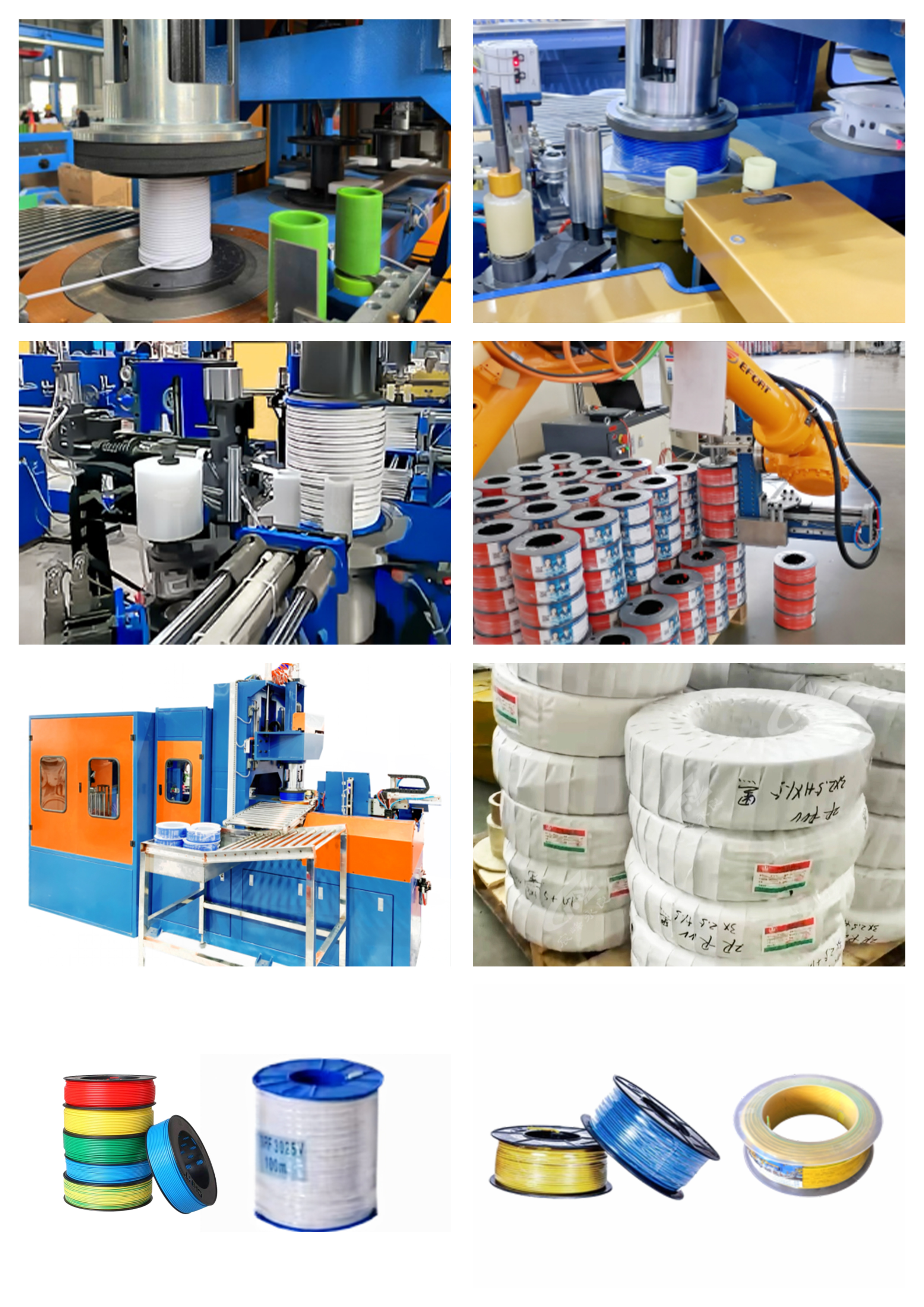

Intelligent Automatic Coiling System – Smart Robotic Winding Machine

Product Overview

This advanced automatic coiling system eliminates the inconsistencies of manual coiling by integrating intelligent robotics and real-time quality monitoring. Capable of handling spool weights ranging from 0.5 kg to 5 kg with unparalleled accuracy, this system is designed for high-volume electronics manufacturing facilities, cable assembly lines, and wire processing plants.

Whether producing fine-gauge wires for microelectronics (e.g., AWG 30, 0.25 mm) or heavier cables for power applications (e.g., AWG 10, 2.6 mm), its adaptive tension control system ensures uniform coil formation with winding tolerances within ±0.5 mm.

Designed to integrate seamlessly into smart factory ecosystems, this system connects with MES (Manufacturing Execution Systems) for full production traceability, including:

• Batch tracking – by spool, shift, or production run

• Quality data logging – tension, speed, length, and fault events

• Real-time OEE monitoring – overall equipment effectiveness

• Remote diagnostics – predictive maintenance alerts

This makes it an indispensable asset for manufacturers of:

• Wire harnesses (automotive, aerospace, industrial)

• Coils for solenoids and relays

• Precision windings for medical devices

• Sensor wiring for IoT and consumer electronics

Key Features

Ultra-High Speed

• Production rate: 200 spools per hour – a 30% improvement over conventional manual methods

• Continuous operation: Maintains consistent output during 24/7 operation thanks to:

• Robust mechanical structure (cast iron frame, vibration-damped mounting)

• Thermal management system (forced-air cooling of motors and drives)

• Automatic spool changing (optional – reduces downtime between cycles)

Intelligent Tension Control

• Employs dual high-precision servo motors paired with load cells that sample tension data 1,000 times per second

• Maintains tension within ±1% accuracy across wire diameters from 0.05 mm to 2.5 mm

• Prevents:

• Wire stretching (excessive tension)

• Wire deformation (insufficient tension leading to loose coils)

• Wire breakage (sudden tension spikes)

Multi-Format Compatibility

Supports a wide range of spool specifications:

Quick-change tooling allows format transitions in under 10 minutes, reducing changeover downtime.

User-Friendly Interface

• 15-inch touchscreen PLC controller with intuitive HMI (Human-Machine Interface)

• Stores up to 100 production recipes (spool size, wire gauge, winding pattern, tension profile)

• Real-time monitoring of key parameters:

• Winding speed (m/min)

• Tension (N or gf)

• Coil length (m)

• Spool fill percentage

• Fault conditions (wire break, tension deviation, spool jam)

• Instant alerts for unusual conditions:

• Wire breakage detection

• Tension deviation beyond set limits

• Spool full (automatic stop or spool change request)

Additional Technical Features

Technical Specifications

Comparison: Automatic Coiling System vs Manual Coiling

Applications

Consumer Electronics

Delivers precise coiling for internal wiring in:

• Smartphones (charging coils, antenna wires)

• Laptops and tablets (display cables, battery wiring)

• IoT devices (sensor leads, power supply wires)

• Wearables (smartwatches, fitness trackers)

• Home appliances (motor windings, control wiring)

In these applications, compact coil design and consistent wire length are critical for:

• Product miniaturization (fitting more function into smaller spaces)

• Performance reliability (consistent electrical properties)

• Assembly automation (precise wire lengths for robotic insertion)

Automotive Industry

Produces high-quality coils for:

• Automotive solenoids (transmission control, fuel injection)

• Ignition systems (ignition coils, crankshaft sensors)

• Sensor wiring harnesses (ABS, airbag, parking assist)

• Electric vehicle (EV) components (battery management, motor control)

• Lighting systems (LED driver coils, ballasts)

Meets the stringent durability requirements of IATF 16949 (automotive quality management) and ISO 16750 (environmental testing for electrical systems).

Medical Devices

Manufactures precision coils for life-critical medical equipment, including:

• MRI machines (gradient coils, RF coils)

• Pacemakers (leads and sensing coils)

• Defibrillators (high-voltage charging coils)

• Surgical robots (encoder wiring, motor coils)

• Diagnostic imaging (CT, ultrasound, X-ray coils)

In medical applications, coil uniformity directly impacts:

• Device accuracy (signal integrity, noise reduction)

• Patient safety (reliable operation, no intermittent failures)

• Regulatory compliance (FDA, CE, ISO 13485)

Additional Applications

FAQ (Expanded)

Q: Can it handle multi-strand wires?

A: Yes. The system is specifically engineered to process both stranded and solid-core wires with equal precision. Its adjustable wire guides and variable tension settings accommodate different strand counts:

• 7-strand (standard flexible wire)

• 19-strand (high-flex cable)

• 37-strand (ultra-flexible wire)

All without compromising coil quality, tension consistency, or winding accuracy.

Q: What is the minimum wire length per spool?

A: The system can reliably process wires as short as 500 mm, making it suitable for:

• Prototyping (short runs for new product development)

• Small-batch production (custom orders, pilot runs)

• R&D environments (testing new wire materials or spool designs)

• Custom cable assemblies (non-standard lengths)

For longer lengths, the system can handle up to 5,000 meters per spool, depending on wire gauge and spool size.

Q: Is maintenance required frequently?

A: The system’s design prioritizes low maintenance with:

• Self-lubricating ceramic bearings – no grease fittings, no periodic lubrication

• Sealed drive components – prevents dust and debris ingress

• Modular architecture – simplifies part replacement (no special tools required)

Routine maintenance is recommended every 2,000 operating hours (approximately 3–6 months of continuous operation) and typically consists of:

• Filter changes (cooling fan intake filters)

• Tension calibration checks (using supplied test weights)

• Wire guide inspection (wear check, replacement if needed)

Q: Does it integrate with existing production lines?

A: Yes. The system offers plug-and-play compatibility with:

• Wire pay-off stands (active or passive tension control)

• Wire cutting and stripping machines (for pre-cut wire feeding)

• Conveyor systems (for automated spool handling)

• MES and ERP systems (via Ethernet/IP, Modbus TCP, or Profinet)

Q: What is the typical return on investment (ROI)?

A: Based on typical production volumes:

• Labor savings: 50–75% reduction in winding labor

• Quality improvement: Reduced rejection rate (2–5% down to <0.5%)

• Increased throughput: 30% more spools per hour

• Typical ROI period: 6–12 months

Compliance and Certifications

Packing and Shipping

Shipping methods:

• Sea freight – standard (20' container can hold 4–6 units)

• Air freight – available for urgent orders

• Land freight – regional delivery

Documentation included:

• Packing list

• Commercial invoice

• Installation manual

• Electrical schematics

• Test report (factory acceptance)

Ordering Information

Options:

• Automatic spool changer (reduces downtime)

• Ethernet/IP or Profinet communication module

• Remote diagnostic modem (for predictive maintenance)

• Custom spool adapters (for non-standard spool designs)
