The ZX-5000 Intelligent Rigid Stranding Machine leverages cutting-edge AI and aerospace-grade titanium alloy to deliver unmatched wire processing performance.
Capable of handling 48 spools across four layers, it operates at 1000 RPM with real-time error correction, ensuring flawless strand consistency for critical applications such as:
Defense wiring
Renewable energy grids
Aerospace cabling
Industrial automation
| Feature | Benefit |
|---|---|
| Compact footprint | 3.5m × 2.4m – saves 30% floor space |
| Energy efficiency | Regenerative system – cuts power costs by 35% |
| Certifications | ISO 9001, UL |
| Target industries | Precision, speed, and sustainability |
| Feature | Specification |
|---|---|
| 1. Ultra-Precision Engineering | ±0.02 mm tolerance for wire diameters 0.05–12 mm |
| 2. AI-Driven Automation | Self-learning algorithms optimize tension, speed, and pitch in real time |
| 3. Military-Grade Durability | Titanium alloy rigid + ceramic-coated bearings (150,000+ hours lifespan) |
| 4. Green Technology | 35% energy savings via dynamic braking + solar-compatible power systems |
| 5. Rapid Configuration | Modular spool racks enable 48-strand setups in under 10 minutes |
The ZX-5000's neural network-based AI analyzes:
Material elasticity
Ambient conditions (temperature, humidity)
It auto-adjusts twist parameters in real time. For hybrid materials like copper-clad aluminum, it:
Prevents micro-fractures
Ensures uniform conductivity
✅ Achieves industry-leading yield rate: 99.8%
| Component | Material / Feature |
|---|---|
| Rigid frame | Titanium alloy |
| Spindles | Carbon-fiber-reinforced |
| Temperature range | –30°C to 120°C |
| Protection | Triple-sealed gearbox – resists dust, moisture, chemical corrosion |
Suitable for: Arctic oil rigs, desert solar farms, coastal installations, industrial plants.
1000 RPM – processes 1.2 tons of wire daily (double traditional machine output)
"Eco-Power" regenerative system – feeds surplus energy back to grid, reducing annual CO₂ emissions by 12 tons
Quick-change spools + IoT predictive maintenance – cut downtime by 50%
| Parameter | Value |
|---|---|
| Max speed | 1000 RPM |
| Spool capacity | 48 spools (4 layers) |
| Wire diameter range | 0.05 – 12 mm |
| Tolerance | ±0.02 mm |
| Footprint | 3.5m × 2.4m |
| Floor space saving | 30% |
| Energy savings | 35% |
| Operating temperature | –30°C to 120°C |
| Lifespan (bearings) | 150,000+ hours |
| Yield rate | 99.8% |
| Daily output | 1.2 tons |
| CO₂ reduction | 12 tons/year |
| Certifications | ISO 9001, UL |
| Parameter | Before Modification | After Modification | Benefit |
|---|---|---|---|
| Labor cost | 5 workers per machine | 1 worker per machine | Saves 800,000 RMB/year (based on Chinese cable factories) |
| Time for twisting + bobbin replacement | 3.5 + 2.5 = 6 hrs | 3.5 + 1.5 = 5 hrs | 20% increase in twisting efficiency |

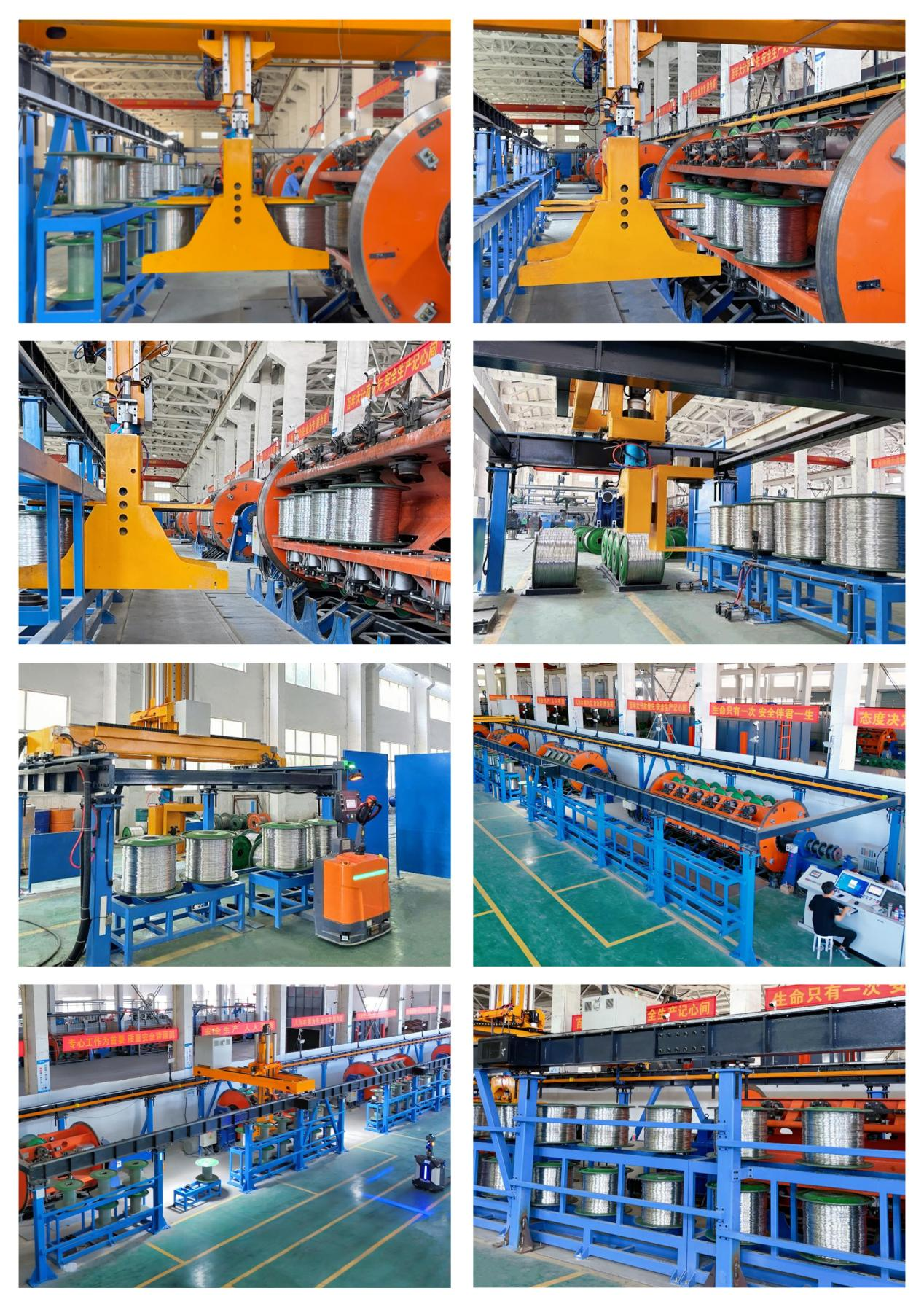

| Production site | Messy, bobbins in aisles | Bobbin storage device – neat and orderly | Beautiful, tidy, organized workspace |
| Potential safety hazard | Present | None | Eliminated all safety hazards |
| Impact on machine & bobbins | Workers using pry bars – bobbin deformation, waste, machine damage | No bobbin damage | Extended bobbin life + improved machine safety and efficiency |
✅ 1000 RPM high-speed operation
✅ 48 spools (4 layers) – high capacity
✅ ±0.02 mm precision for wires 0.05–12 mm
✅ AI-driven real-time error correction
✅ 99.8% yield rate – near-zero defects
✅ 35% energy savings + 12 tons CO₂ reduction/year
✅ 30% less floor space (3.5m × 2.4m footprint)
✅ Aerospace-grade titanium alloy – extreme durability
✅ –30°C to 120°C operating range
✅ 150,000+ hour bearing life
✅ ISO 9001 & UL certified
✅ Modular setup – 48 strands in under 10 minutes
| Industry | Application |
|---|---|
| Defense | Military-grade wiring, secure communications |
| Renewable energy | Solar farms, wind power grids |
| Aerospace | Aircraft cabling, avionics |
| Automotive | EV wiring harnesses, high-voltage cables |
| Industrial automation | Robotics, control systems |
| Telecommunications | High-speed data cables |
Q: What is the maximum wire diameter the ZX-5000 can handle?
A: From 0.05 mm to 12 mm with ±0.02 mm tolerance.
Q: How many spools can it accommodate?
A: 48 spools across 4 layers.
Q: What is the operating speed?
A: 1000 RPM – double traditional machine output.
Q: How much floor space does it save?
A: The compact footprint of 3.5m × 2.4m saves 30% floor space compared to conventional machines.
Q: How much energy does it save?
A: 35% energy savings via the regenerative braking system, reducing annual CO₂ emissions by 12 tons.
Q: What is the yield rate?
A: 99.8% – near-zero defects.
Q: Is it suitable for harsh environments?
A: Yes. Aerospace-grade titanium alloy and triple-sealed gearbox allow operation from –30°C to 120°C in dusty, humid, or corrosive conditions.
Q: How much labor does it save?
A: Reduces operators from 5 workers to 1 worker per machine, saving approximately 800,000 RMB/year (based on Chinese cable factory labor costs).
Q: What certifications does it hold?
A: ISO 9001 and UL certified.
Q: How long does setup take for 48 strands?
A: Modular spool racks enable 48-strand setup in under 10 minutes.
| Item | Details |
|---|---|
| Packaging | Export-grade wooden crates with shock-absorbing materials |
| Shipping methods | Sea freight / Air freight / Land freight |
| Documentation | Packing list, commercial invoice, quality certificate, test reports (upon request) |
