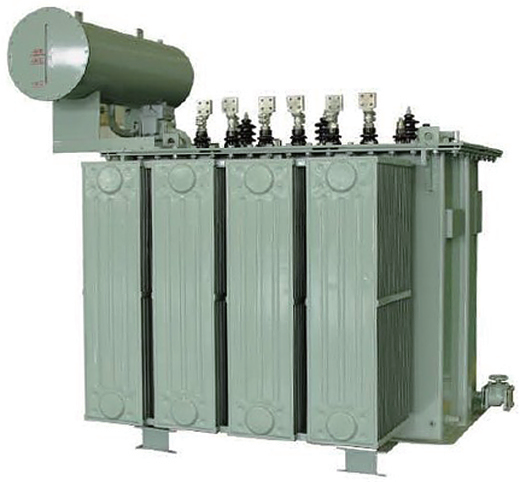

Low Loss And Energy-saving Special Designed Rectifier Transformer

5 0 Reviews
This low-loss, energy-saving rectifier transformer is specially designed for industrial DC power supply systems. It converts AC input into regulated DC output for electrolysis, electroplating, metal refining, traction, and DC drive applications. The transformer features optimized core and winding design to reduce no-load and load losses, improving overall energy efficiency. It can be configured with multiple secondary windings, phase shifting, and harmonic mitigation to match rectifier circuits such as 6-pulse, 12-pulse, or 24-pulse. With low temperature rise, high reliability, and customizable voltage and current ratings, it reduces operating costs and meets specific process requirements for demanding industrial environments.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

How to Select the Right Rectifier Transformer

1. DC Output Requirements

Define the required rated DC voltage, DC current, and DC power. These determine the transformer secondary voltage and current ratings, as well as the rectifier circuit configuration. Consider overload capacity and duty cycle.

2. AC Input Conditions

Specify the primary voltage, frequency (50 Hz or 60 Hz), and number of phases. Confirm whether the input is from a dedicated feeder or shared bus, and whether voltage fluctuation or unbalance exists.

3. Rectifier Circuit Type

Select the rectifier pulse number:

  • 6-pulse: Simple, lower cost, higher harmonic content.

  • 12-pulse: Two secondary windings with 30° phase shift, reduced harmonics.

  • 24-pulse: Four secondary windings, further harmonic reduction, suitable for large DC loads.
    The pulse number determines the number of secondary windings, phase shift angles, and winding connections.

4. Winding Configuration and Impedance

Choose the winding connection (e.g., delta, wye, zigzag) and impedance percentage. Impedance affects short-circuit current, parallel operation, and harmonic sharing. For multi-winding transformers, specify the phase shift between secondary windings.

5. Cooling Method

Select according to installation environment and load profile:

  • AN (Natural Air): For low to medium capacity, indoor, clean environment.

  • AF (Forced Air): Higher capacity with fans, indoor.

  • ONAN (Oil Natural Air Natural): Oil-immersed, outdoor or indoor.

  • ONAF (Oil Natural Air Forced): Higher capacity, oil-immersed with fans.

  • OFAF (Oil Forced Air Forced): Very high capacity, forced oil circulation.

  • Water-cooled: For extremely high power density or restricted space.

6. Insulation and Temperature Rise

Specify insulation class (e.g., Class F, Class H) and permissible temperature rise. Higher temperature rise reduces size and cost but may affect life. Consider ambient temperature, altitude, and ventilation.

7. Efficiency and Losses

Define maximum allowable no-load loss and load loss. Low-loss designs use high-grade silicon steel, optimized core geometry, and high-conductivity copper windings. Confirm whether meeting specific efficiency standards (e.g., IEC 60076-20, GB 20052) is required.

8. Installation Environment

  • Indoor/Outdoor: Affects enclosure, cooling, and protection degree.

  • Altitude: Above 1000 m requires derating or special insulation.

  • Ambient temperature: High ambient reduces capacity; low ambient affects oil viscosity.

  • Humidity and pollution: Specify creepage distance and corrosion protection.

  • Seismic and wind load: For outdoor installation, confirm mechanical design.

9. Standards and Tests

Specify applicable standards: IEC 60076, GB 1094, IEEE C57.12.00, etc. Routine tests include winding resistance, ratio, impedance, no-load loss, load loss, dielectric tests, and temperature rise. Type tests may include lightning impulse, short-circuit, and harmonic measurement.

10. Physical Dimensions and Weight

Confirm allowable footprint, height, and weight for transport and installation. For oil-immersed units, consider oil volume and maintenance access. For dry-type, consider clearance for cooling.


Technical Specifications

Parameter Unit Typical Range / Option
Type — Rectifier transformer, dry-type or oil-immersed
Rated DC Voltage V 50 – 2000
Rated DC Current A 100 – 100,000
Rated DC Power kW 50 – 200,000
Primary Voltage kV 0.4 – 220
Frequency Hz 50 / 60
Number of Phases — 3
Rectifier Pulse Number — 6, 12, 24, or custom
Secondary Windings — 1 – 4 or more
Phase Shift ° 0 – 30 (between windings)
Winding Material — Copper / Aluminium
Core Material — Grain-oriented silicon steel
Cooling Method — AN, AF, ONAN, ONAF, OFAF, water-cooled
Insulation Class — F / H
Temperature Rise K 60 – 100 (custom)
Impedance % 4 – 12 (custom)
No-load Loss kW According to design and standard
Load Loss kW According to design and standard
Efficiency % ≥ 98 (at rated load)
Protection Degree IP IP00 – IP54
Altitude m ≤ 1000 (standard); >1000 with derating
Ambient Temperature °C -25 to +45 (standard)
Standards — IEC 60076, GB 1094, IEEE C57.12.00
Installation — Indoor / Outdoor

Note: All parameters are customizable based on application requirements. Confirm actual design data before ordering.


Typical Applications

  • Electrolysis and electroplating rectifier systems

  • Aluminium, copper, and zinc smelting

  • DC arc furnaces and induction heating

  • Traction power supply for railways and metros

  • DC drives for rolling mills and paper machines

  • Hydrogen production and electrochemical processes

  • High-power DC testing and research facilities



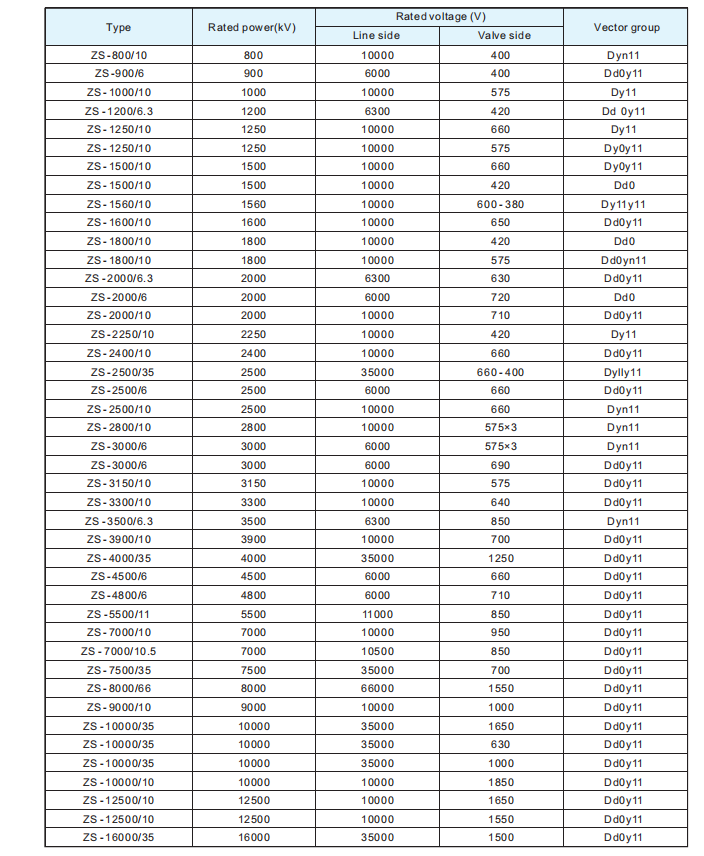

RECTIFIER TRANSFORMER

Rectifier Transformers is the power of the rectifier equipment, most DC power source and the DC power supply of electronic system are supplied by AC network and the equipment which is composed by the rectifier transformers and rectifier. So the rectifier transformer are widely used in electro chemical e l e c tr o l y s i s , e l e c tr o n i c tr a c t i o n , DC power transmission, frequency conversion and industry rectifier power.etc. All of these transformers are low loss and energy-saving products and could be special designed according to the customer's requirement.



1. Ambient Temperature: Max temp, +40°C, Min temp ,-30°(revise if it is beyond the range )

2. Altitude : <1000m (temperature rise and external insulation distance to be modified if> 1000m)

3. Relative humidity : <90% (25℃ )

4.External Pollution Class : 4
