Medium Voltage Cable Accessories are essential parts of any medium voltage cable system. They connect cable sections, terminate cables at equipment, control electrical stress, and protect insulation at points where failure often begins. In power distribution, these components have a direct effect on operational stability, insulation performance, and service continuity.
The main technical issue is not whether an accessory can carry the required voltage alone, but whether it can perform reliably in its actual installation environment. Indoor and outdoor applications create very different demands in terms of moisture exposure, contamination, UV resistance, mechanical protection, and available installation space. For that reason, selecting the right accessory requires more than a basic check of cable size or voltage class.
● Indoor and outdoor Medium Voltage Cable Accessories serve the same electrical purpose but operate under very different conditions.
● The main differences involve sealing, weather resistance, mechanical protection, insulation design, and mounting space.
● Outdoor accessories must withstand UV exposure, moisture, pollution, and wider temperature variation.
● Indoor accessories usually focus on compact design, controlled installation, and stable performance in enclosed spaces.
● Using the wrong type can lead to tracking, insulation failure, premature aging, and recurring outages.
Medium Voltage Cable Accessories are components used to connect, terminate, seal, and protect medium voltage cables. They are installed at points where cables join each other or connect to equipment. These points often face higher electrical stress than the cable run itself, so accessory performance is critical to system reliability.
The most common types include terminations, joints, separable connectors, elbow connectors, transition joints, and earthing components. Terminations connect cables to switchgear, transformers, or other equipment. Joints connect two cable lengths and restore insulation, shielding, and electrical continuity along the route.
These accessories are used in utility distribution systems, industrial plants, commercial facilities, substations, renewable energy sites, and infrastructure projects. Indoor installations are common in switchgear rooms, cable basements, enclosed substations, and equipment buildings. Outdoor installations appear in open substations, exposed transformer areas, pole-mounted systems, and field-based distribution networks.
Indoor accessories usually operate in enclosed spaces where moisture, dust, and temperature variation are relatively controlled. Outdoor accessories must work under rain, sunlight, pollution, salt, and seasonal temperature swings. This difference changes the required material performance and the level of external protection.
Sealing is important in all medium voltage connections, but outdoor applications require a much higher level of resistance against water and contamination. If moisture enters the interface, it can lead to tracking, corrosion, partial discharge, and insulation breakdown over time. Indoor systems also need proper sealing, especially in humid rooms or underground spaces, though the overall exposure is usually lower.
Both indoor and outdoor accessories need reliable insulation and effective stress control, but the surface conditions differ. Outdoor units often need greater attention to creepage distance, surface resistance, and pollution performance. Indoor units can often remain more compact because they operate in cleaner and more stable surroundings.
Outdoor accessories usually need stronger resistance to impact, vibration, cable movement, and thermal expansion. Wind, debris, and temperature cycling can gradually weaken exposed components if the design is not robust enough. Indoor accessories normally face less external mechanical stress, though they still need structural stability during installation and long-term operation.
Indoor installations often involve limited space inside panels, cable chambers, and switchgear rooms. This creates a strong need for compact profiles and controlled mounting geometry. Outdoor systems often allow more physical space, but clearance, support arrangement, and exposure to the surrounding environment remain important design factors.
Indoor accessories are generally easier to inspect because they are located in accessible and controlled areas. Outdoor accessories may require field access, weather-safe maintenance windows, and more careful shutdown planning. As a result, environmental durability often becomes more important in outdoor installations where inspection is less convenient.
Comparison Factor | Indoor MV Cable Accessories | Outdoor MV Cable Accessories |
Operating environment | Enclosed, cleaner, more stable | Open, exposed, more variable |
Sealing demand | Moderate to high, depending on site | High, often critical |
Mechanical protection | Focus on installation integrity | Stronger resistance to impact and weather |
Space requirement | Usually compact and layout-sensitive | Often clearance-driven |
Surface exposure | Lower contamination risk | Higher risk from UV, rain, dust, and salt |
Maintenance conditions | Easier inspection and access | More site-dependent and exposure-related |
Indoor accessories are often designed for limited installation space. In switchgear rooms and enclosed substations, cable routing, clearance, and bending radius can all restrict accessory size. A compact design reduces installation difficulty and makes integration easier in dense electrical layouts.
Indoor environments usually have less direct exposure to sunlight, rain, and airborne contamination. Because of this, the accessory design can focus more on electrical precision and fit rather than heavy external shielding. Even so, indoor conditions are not always mild, especially where condensation, process dust, or heat build-up exists.
Typical indoor applications include metal-enclosed switchgear, transformer rooms, commercial power distribution spaces, industrial control buildings, and cable basements. In these locations, accessories often connect cables to fixed equipment inside a planned layout. Installation accuracy is especially important because indoor systems often operate in compact and structured environments.
Indoor Medium Voltage Cable Accessories usually emphasize interface reliability, electrical stability, and efficient use of space. Environmental resistance remains necessary, though it is usually not the dominant design requirement. In many cases, preparation quality during installation has a greater effect on long-term performance than external exposure.

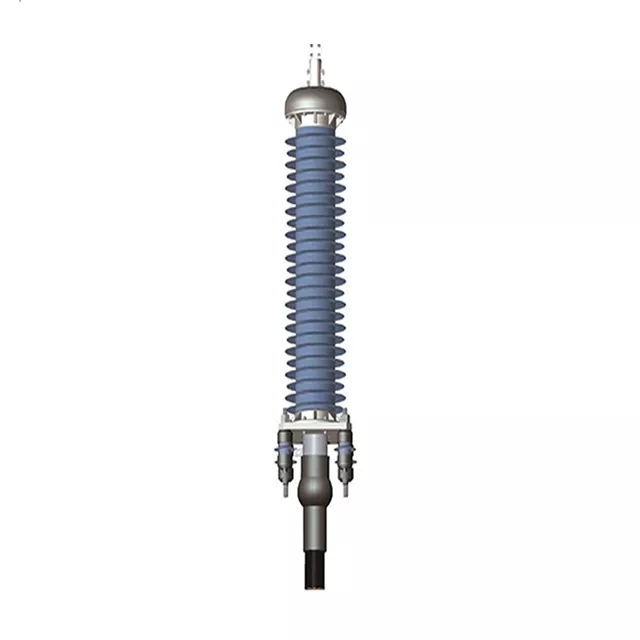

Outdoor accessories must remain stable through long periods of sun, rain, wind, and shifting temperature. These conditions place continuous stress on the outer surface, sealing areas, and mechanical structure. For this reason, weather resistance is a core requirement rather than an added feature.
UV radiation can harden or crack unsuitable materials over time. Moisture can enter weak sealing points and move along the interface, increasing the risk of tracking and insulation failure. Outdoor Medium Voltage Cable Accessories therefore need materials and sealing systems that remain stable under long-term environmental exposure.
Exposed installations often face dust build-up, salt contamination, accidental contact, and physical movement caused by temperature change or cable tension. Outdoor accessories are therefore expected to offer stronger external protection around critical electrical interfaces. This becomes even more important in coastal, industrial, and remote operating conditions.
Outdoor accessories are widely used in open substations, renewable energy sites, mining areas, pole-mounted systems, transport infrastructure, and exposed transformer connections. Installation often takes place under field conditions rather than in controlled indoor workspaces. That makes handling, sealing consistency, and durable material design especially important.
Design Aspect | Indoor Application Focus | Outdoor Application Focus |
Accessory profile | Compact, space-saving | Durable, exposure-resistant |
Material emphasis | Electrical fit and controlled-environment performance | UV stability, weather resistance, moisture barrier |
Mounting conditions | Enclosed rooms and equipment compartments | Open yards, poles, exposed structures |
Main risk factors | Clearance limits, condensation, installation accuracy | Water ingress, contamination, UV, thermal cycling |
Inspection pattern | Easier routine inspection | More field-based inspection |
Typical priority | Fit, interface stability, installation efficiency | Environmental durability, sealing reliability |
One of the most common failure mechanisms is moisture ingress. Once water enters the interface area, insulation performance can decline and surface tracking may begin. This process can remain hidden for a long period before a visible fault appears.
If the material system does not suit the environment, the accessory may age faster than expected. UV exposure, contamination, thermal cycling, and humidity can all shorten performance life. In many cases, early aging appears first on the accessory surface rather than along the cable itself.
An accessory intended for one setting may be difficult to install correctly in another. Size, mounting angle, clearance, or preparation method may not fit the actual site. This can create stress concentration, weak sealing, or poor conductor connection even when the product quality itself is sound.
Wrong selection often reduces reliability gradually instead of causing immediate failure. Minor discharge, heat build-up, and contamination can weaken the connection point over time. Once the interface becomes unstable, outages, maintenance demands, and operational risk all increase.
The first step should always be a clear review of where the accessory will operate. Indoor, outdoor, humid, polluted, coastal, sheltered, and high-altitude conditions all create different technical demands. Accurate environmental classification improves selection quality from the beginning.
Standards and type testing provide an important basis for comparison. Electrical performance, thermal behavior, and environmental resistance should all be considered in relation to the intended application. Testing is most useful when it reflects actual service conditions rather than only basic compliance.
Maintenance planning should influence selection from the start. If an accessory is installed in a remote outdoor area, durable sealing and long-term stability deserve greater weight. In accessible indoor spaces, inspection may be simpler, though downtime can still be costly and disruptive.
Selection and installation are more reliable when technical data and application support are available. Cable details, equipment interfaces, and site conditions should be checked together before installation begins. Small errors in preparation or compatibility often have a large effect on long-term performance.
Indoor and outdoor Medium Voltage Cable Accessories perform the same basic role, but operating conditions create clear differences in design, protection, and installation requirements. Sealing, environmental resistance, mechanical strength, and interface compatibility all influence long-term performance.
For medium and high voltage applications, 4E Energy provides cable accessories, cable systems, and related equipment supported by technical service. Its product range and system-oriented support contribute to more reliable and efficient power distribution projects.
In most cases, no. Outdoor conditions require stronger protection against moisture, UV exposure, and contamination. An indoor product may not remain reliable in exposed service.
Outdoor accessories face rain, sunlight, dust, pollution, and temperature change. These conditions place greater stress on seals, materials, and insulation surfaces.
Often yes, because indoor installations usually have tighter space limits. Even so, size should never take priority over electrical and mechanical compatibility.
Sealing blocks water, dirt, and contaminants from entering the interface area. Poor sealing can lead to tracking, insulation damage, and early failure.
