| Quantity: | |
|---|---|

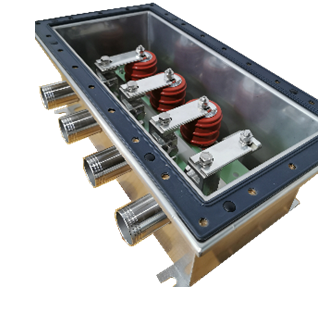

1. On-line monitoring wall-mounted intelligent grounding box (304 stainless steel)
No. | Product Name | Model | Main Components | Monitoring Function |
001 | Wall-mounted smart direct grounding box | ZJDX3-B | 304 direct grounding box | • Sheath circulation • Running current • Cable surface temperature |

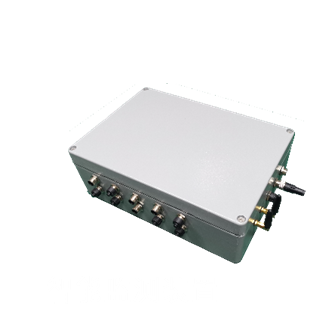

Smart Monitoring Device | ||||
002 | Wall-mounted intelligent protection grounding box | ZJDBX3-B | 304 direct grounding box | • Sheath circulation • Running current • Cable surface temperature |
304 direct grounding box | ||||
003 | Wall-mounted intelligent cross-connection box | ZJDHX3-B | 304 direct grounding box | • Sheath circulation •Sheath voltage • Running current • Cable surface temperature |
304 direct grounding box |
Applicable environment: towers, cable tunnels, cable trenches
2. On-line monitoring wall-mounted solid-sealed intelligent grounding box
No. | Product Name | Model | Main Components | Monitoring Function |
004 | Intelligent direct grounding box | ZJDX3-J02 | Solid-sealed direct grounding box | • Sheath circulation • Running current • Cable surface temperature |
Smart Monitoring Device | ||||
005 | Intelligent protection grounding box | ZJDBX3-J02 | Solid-sealed direct grounding box | • Sheath circulation • Running current • Cable surface temperature |
Smart Monitoring Device | ||||
006 | Intelligent cross-connection box | ZJDHX3-J02 | Solid-sealed direct grounding box | • Sheath circulation •Sheath voltage • Running current • Cable surface temperature |
Smart Monitoring Device |
Applicable environment: Wall-mounted installation in towers, cable tunnels, cable trenches and railways, wind power, and high-corrosion coastal cities.
3. On-line monitoring wall-mounted integrated intelligent grounding box (304 stainless steel)
No. | Product Name | Model | Main Components | Monitoring Function |
007 | Intelligent direct grounding box | ZJDX02-B | 304 direct grounding box | • Sheath circulation • Running current • Cable surface temperature • Partial discharge monitoring system |
Data integrated processing box | ||||
008 | Intelligent protection grounding box | ZJBX02-B | 304 direct grounding box | • Sheath circulation • Running current • Cable surface temperature • Partial discharge monitoring system |
Data integrated processing box | ||||
009 | Intelligent cross-connection box | ZJDHX02-B | 304 direct grounding box | • Sheath circulation •Sheath voltage • Running current • Cable surface temperature • Partial discharge monitoring system |
Data integrated processing box |
Applicable environment: pole tower, cable tunnel, cable trench, wall-mounted installation
4. Online monitoring wall-mounted integrated intelligent grounding box (solid-sealed)
No. | Product Name | Model | Main Components | Monitoring Function |
010 | Wall-mounted integrated solid-sealed intelligent direct grounding box | ZZJDX3-J02 | Solid-sealed direct grounding box | • Sheath circulation • Running current • Cable surface temperature • Partial discharge monitoring system |
Data integrated processing box | ||||
011 | Wall-mounted integrated solid-sealed intelligent protection grounding box | ZZJDBX3-J02 | Solid-sealed direct grounding box | • Sheath circulation • Running current • Cable surface temperature • Partial discharge monitoring system |
Data integrated processing box | ||||
012 | Wall-mounted integrated solid-sealed intelligent cross-connection box | ZZJDHX3-J02 | Solid-sealed direct grounding box | • Sheath circulation •Sheath voltage • Running current • Cable surface temperature • Partial discharge monitoring system |
Data integrated processing box |
Applicable environment: Wall-mounted installation in towers, cable tunnels, cable trenches and railways, wind power, and high-corrosion coastal cities.
5. Online monitoring intelligent grounding box (vertical SMC/304 stainless steel)
No. | Product Name | Model | Monitoring Function |
013 | Vertical intelligent direct grounding box (single door 304/SMC) | ZJDX3-F01 | • Sheath circulation • Running current • Cable surface temperature |
014 | Vertical intelligent protection grounding box (single door 304/SMC) | ZJDBX3-F01 | • Sheath circulation • Running current • Cable surface temperature |
015 | Vertical intelligent cross interconnection grounding box (single door 304/SMC) | ZJDHX3-F01 | • Sheath circulation •Sheath voltage • Running current • Cable surface temperature |
016 | Vertical integrated intelligent direct grounding box (single door 304/SMC) | ZZJDX3-F01 | • Sheath circulation • Running current • Cable surface temperature • Partial discharge monitoring system |
017 | Vertical comprehensive intelligent protection grounding box (single door 304/SMC) | ZZJDBX3-F01 | • Sheath circulation • Running current • Cable surface temperature • Partial discharge monitoring system |
018 | Vertical integrated intelligent cross interconnection grounding box (single door 304/SMC) | ZZJDHX3-F01 | • Sheath circulation •Sheath voltage • Running current • Cable surface temperature • Partial discharge monitoring system |
Applicable environment: road installation
6. Online monitoring integrated intelligent grounding box (upright double door 304 stainless steel)
No. | Product Name | Model | Monitoring Function |
019 | Vertical comprehensive intelligent direct grounding box (double door 304) | ZZJDX3-F02 | • Sheath circulation • Running current • Cable surface temperature • Partial discharge monitoring system • Distributed optical fiber temperature measurement system |
020 | Vertical comprehensive intelligent protection grounding box (double door 304) | ZZJDBX3-F02 | • Sheath circulation • Running current • Cable surface temperature • Partial discharge monitoring system • Distributed optical fiber temperature measurement system |
021 | Vertical comprehensive intelligent cross interconnection grounding box (double door 304) | ZZJDHX3-F02 | • Sheath circulation •Sheath voltage • Running current • Cable surface temperature • Partial discharge monitoring system • Distributed optical fiber temperature measurement system |
