Indoor: IP54 or IP55 is usually sufficient for sheltered areas such as plant rooms, corridors, and basements.
Outdoor: Select IP65 or IP66 for direct rain, dust, and hose-water exposure. For coastal or industrial areas, choose corrosion-resistant materials and hardware.
Direct sunlight: Non-metallic enclosures or UV-resistant coatings reduce fading and surface degradation.
Temperature range: Confirm the operating temperature range, especially for outdoor installations in hot or cold climates.
System voltage: Confirm single-phase 230 V or three-phase 400/690 V requirements. The enclosure must have adequate insulation voltage and clearances.
Rated current: Match the box to the main breaker, busbar, and terminal ratings, such as 100 A, 200 A, 400 A, or project-specific values.
Short-circuit withstand: For utility and industrial use, verify the short-circuit withstand rating of installed components and internal barriers.
| Material | Typical Use | Advantages | Considerations |
|---|---|---|---|
| Cold-rolled steel | Indoor, sheltered outdoor | Mechanical strength, low cost | Requires powder coating or galvanizing for corrosion protection |
| Stainless steel | Coastal, industrial, outdoor | Corrosion resistance, impact resistance | Higher cost, heavier |
| Aluminium | Outdoor, lightweight installations | Lightweight, corrosion resistant | Lower mechanical strength than steel |
| PC/ABS | Indoor, residential, commercial | Insulation, UV resistance, lightweight | Lower impact strength at extreme temperatures |
| SMC/FRP | Outdoor, industrial, utility | Corrosion resistance, insulation, high strength | Higher cost, specific mounting requirements |
IP54: Dust-protected and splash-resistant. Suitable for indoor and sheltered outdoor use.
IP65: Dust-tight and water-jet protected. Suitable for most outdoor installations.
IP66: Dust-tight and powerful water-jet protected. Suitable for exposed outdoor and wash-down areas.
IK rating: For public or industrial areas, select an impact resistance rating such as IK08 or IK10.
Internal space: Allow enough room for meters, breakers, terminals, wiring, and cable bending radius.
Mounting type: Wall-mounted, pole-mounted, floor-standing, or flush-mounted. Confirm the installation method before ordering.
Mounting hole spacing: Check the support spacing and hole dimensions against the wall or pole structure.
Cable entry: Select top, bottom, side, or rear entry with suitable cable glands and sealing.
Transparent window: PC or acrylic window for meter reading without opening the door.
Door type: Single-door or double-door. Confirm hinge side and opening direction.
Locking: Key lock, padlock, or sealable lock for utility and public installations.
Sealing: Gasket material and compression design determine water and dust ingress protection.
Passive ventilation: Use labyrinth or membrane vents if heat dissipation is required while maintaining IP protection.
Active cooling: For high-density components, consider filtered fans or air conditioners with appropriate IP rating.
Condensation control: Use breathable membranes or heaters in humid and variable-temperature environments.
Ingress protection: IEC 60529.
Low-voltage assemblies: IEC 61439-1 and IEC 61439-2, where applicable.
Metering enclosures: Local utility requirements and GB/T 7251 series.
Documentation: Request dimension drawings, material certificates, IP test reports, and installation instructions.
| Parameter | Unit | Typical Range / Option |
|---|---|---|

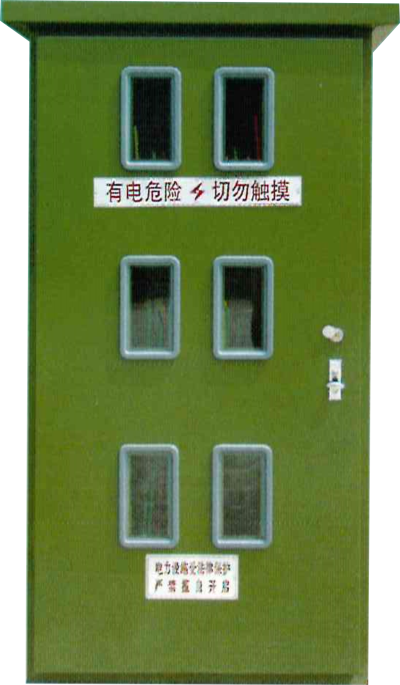

| Type | — | Outdoor / indoor waterproof electric meter box |
| Material | — | Cold-rolled steel, stainless steel, aluminium, PC/ABS, SMC/FRP |
| Surface Treatment | — | Powder coating, galvanizing, painting, UV-resistant coating |
| Protection Degree | — | IP54, IP55, IP65, IP66 |
| Impact Resistance | — | IK07, IK08, IK10 |
| Rated Insulation Voltage | V | 230 / 400 / 690 |
| Rated Current | A | 63, 100, 200, 400, 630, custom |
| Frequency | Hz | 50 / 60 |
| Installation | — | Wall-mounted, pole-mounted, floor-standing, flush-mounted |
| Door Type | — | Single door, double door, with or without transparent window |
| Window Material | — | PC, acrylic, tempered glass |
| Lock | — | Key lock, padlock, sealable lock |
| Cable Entry | — | Top, bottom, side, rear; cable gland or knockout |
| Gasket | — | Polyurethane, silicone, EPDM |
| Ventilation | — | Labyrinth vent, membrane vent, filtered fan, optional |
| Operating Temperature | °C | -25 to +55, custom |
| Color | — | RAL 7035, RAL 7032, white, grey, custom |
| Dimensions | mm | Customized according to meter and breaker layout |
| Mounting Hole Spacing | mm | According to drawing or project requirement |
| Standards | — | IEC 60529, IEC 61439-1/2, GB/T 7251 |
| Packing | — | Carton, wooden case, pallet |
Note: Specifications are customizable. Confirm final dimensions, material, and protection degree against project drawings before ordering.
Residential and commercial electricity metering
Industrial power distribution and control rooms
Utility outdoor metering points
Solar and renewable energy metering stations
Temporary power supply and construction sites
Public infrastructure and street lighting metering
Coastal, dusty, and high-humidity installations
