Ever wonder what powers your lights, machines, or even entire cities? It starts with electric power cables.These cables move electricity where it's needed. Choosing the wrong type can be dangerous or wasteful.In this post, you'll learn what electric power cables are, why they matter, and how to choose the right one.
Let’s start with the building blocks of power cables. They might look simple, but every part has a job.
Conductors: These carry electricity. Most use copper or aluminum.
o Copper: Conducts better but costs more. Great for high-performance gear.
o Aluminum: Cheaper and lighter. Good for everyday use.
o Types: Solid (tough, less flexible), stranded (flexible, bends easy), and super flexible for tight spots.
Insulation: Stops electricity from leaking or shorting out.
o Thicker insulation works for higher voltage. Harsh environments need stronger materials too.
Protective Jacket: The outer layer. It shields against bumps, water, and chemicals.
By polarity and grounding:
o Polarized: Two prongs—one longer (neutral), one shorter (live). Hard to plug in wrong.
o Non-polarized: Two prongs, same size. You can plug them either way.
o Three-prong: Has a third prong for grounding. Safer, stops shocks.
By voltage:
o Low Voltage (LV): Up to 1,000V. Powers homes, phones, small appliances.
o Medium Voltage (MV): 1kV to 36kV. Moves electricity to big buildings or factories.
o High Voltage (HV): Over 36kV. Carries power from plants to cities.
Household and small appliances:
o Mains cables (kettle leads) plug into walls for TVs or microwaves.
o USB-A/C cables charge phones. Small gadgets use barrel connectors.
Industrial and commercial:
o Armored cables (like SWA or AWA) handle rough spots—underground or factories.
o Medium/high voltage cables send power to big office buildings.
Computers and electronics:
o IEC C13/C14 cables power desktops and monitors (those “kettle leads”).
o Inside PCs: 24-pin cables feed motherboards; 8-pin ones power CPUs.
o USB-C charges laptops fast—up to 100W!
Networking and IoT:
o Power Over Ethernet (PoE) cables run security cameras and smart devices. One cable for data and power.
Specialized:
o Submarine cables work underwater for offshore platforms.
o Flexible cables power temporary setups—like construction tools.
Single-core vs. multi-core:
o Single-core: One conductor. Used for high-voltage jobs.
o Multi-core: Many conductors in one cable. Common for low/medium voltage.
Solid vs. stranded conductors:
o Solid: One thick wire. Durable but stiff. Good for fixed setups.

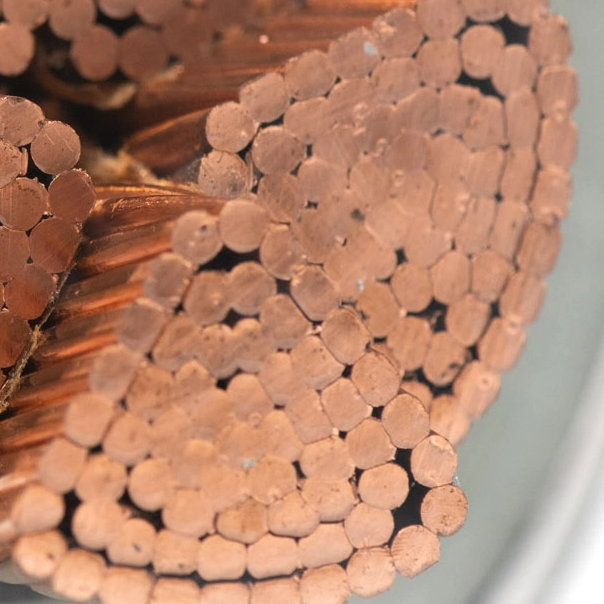

o Stranded: Many thin wires twisted. Bends easy. Great for moving parts.
Standards keep cables safe and compatible. Two big groups set the rules: NEMA and IEC.
· NEMA 1-15: 2 prongs, 125V, 15 amps. No ground. Old stuff uses these—new buildings don’t.
· NEMA 5-15: 3 prongs (grounded), 125V, 15 amps. Most U.S. homes use these.
· IEC C13/C14: “Kettle leads.” 3 prongs, 240V, 10 amps. Power desktops and medical gear.
· IEC C5 (Mickey Mouse): 3 prongs, grounded. 240V, 2.5 amps. Laptop chargers love these.
· IEC C7 (Figure-8): 2 prongs, no ground. 125V, 2.5 amps. Powers radios and DVD players.
Different countries use different plugs. Here’s the quick breakdown:
Region | Plug Types |
U.S. | Type A/B (NEMA) |
UK | Type G (3-prong) |
Europe/South America | Type C, E, F |
Mismatched plugs? You’ll need an adapter. Safety first—wrong plugs can fry gear.
Picking the right cable isn’t hard. Just check these things:
· Voltage: Cable must handle your device’s voltage. A 125V cable won’t work for 240V gear.
· Current: Amps matter. If your device uses 10 amps, get a cable that handles at least that. Too little = overheating.
· Temperature: Kettles need C15/C16 cables (handle 120°C). Cold spots? Get flexible jackets.
· Exposure: Wet areas? Use waterproof cables. Factories with chemicals? Pick resistant jackets.
· Installation: Long cables lose power. Tight spaces? Go flexible. Rough spots? Reinforced jackets help.
· Length: Longer = more resistance = less power. Keep high-current cables short.
· Gauge: Thicker wires (lower gauge) carry more current. Thin wires (higher gauge) overheat fast.
· Look for NEMA/IEC stamps. They mean the cable passed tests.
· Stick with trusted brands (like Cable Matters or TPC). They’re less likely to fail.
Even good cables fail if installed wrong. Follow these tips:
· Bend radius: Don’t bend too tight. The minimum? 8x the cable’s thickness.
· Don’t restrict movement: Too many ties/clamps squeeze inner wires. Let them move a little.
· Use strain relief (like Grip-Seals) where cables connect. Stops pulls from breaking wires.
· Reeling/pendant setups? Get cables with reinforced jackets. They resist wear.
Let cables hang 24+ hours before use. They stretch from being on reels—this fixes that.
Cables are getting smarter. Here’s what’s coming:
· Smart cables: Sensors check temperature and damage. Alerts you before they fail.
· Eco-materials: Recyclable conductors and green insulation. Less harm to the planet.
· High-performance: Superconducting cables lose less power. Fire-resistant jackets keep homes safer.
Electric power cables keep our homes, businesses, and machines running safely.Choosing the right cable means better performance and fewer risks.Match cables to devices, environments, and trusted standards.Use these tips to make smart, long-lasting choices for every project.
A: Polarized cables have distinct live and neutral prongs. Non-polarized ones don't—both prongs are the same size.
A: No, they have different plug shapes and standards. Use adapters only if voltage and current match.
A: Check for a third prong or wire. Grounded cables always have a ground pin or terminal.
A: Regional standards vary by safety laws, voltage systems, and historical development.
A: It can overheat or lose voltage, causing damage or power failure. Always match cable specs to your device.
