Medium voltage power distribution depends on more than cable alone. Every connection point needs components that can preserve insulation, control electrical stress, and keep the network stable in real operating conditions. This is why medium voltage cable accessories play such an important role in power distribution systems.
● Medium voltage cable accessories connect, terminate, seal, and protect MV cables.
● They are essential to system safety, reliability, and service continuity.
● Many cable failures begin at joints or terminations rather than along the cable itself.
● Proper selection and installation have a direct impact on service life.
● Product quality and technical support shape long-term network performance.
Medium voltage cable accessories are components installed on MV cables to make the system functional and secure. They create safe connection points between cable sections and between cables and electrical equipment. Without these accessories, a cable cannot operate as part of a complete power distribution network.
Medium voltage usually refers to systems ranging from about 7.2 kV to 42 kV, depending on standards and project requirements. This voltage range is common in utilities, substations, industrial plants, and renewable energy installations. Accessories must match the voltage class to maintain stable electrical performance.

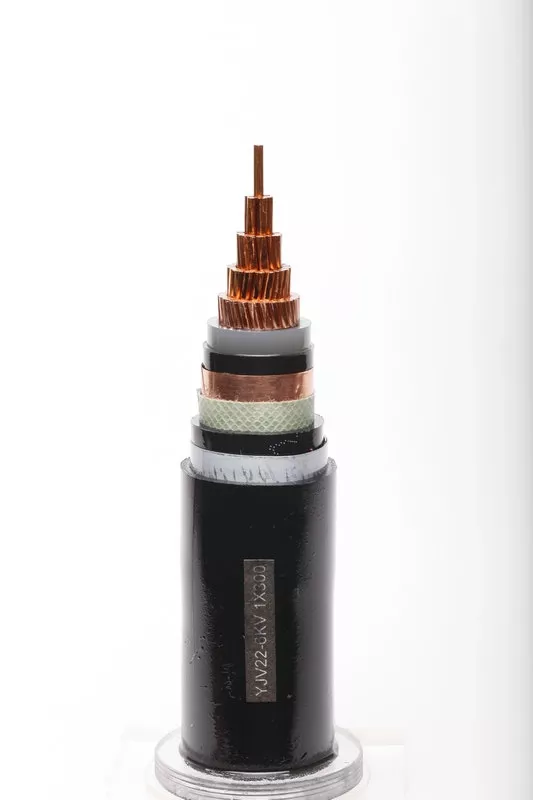

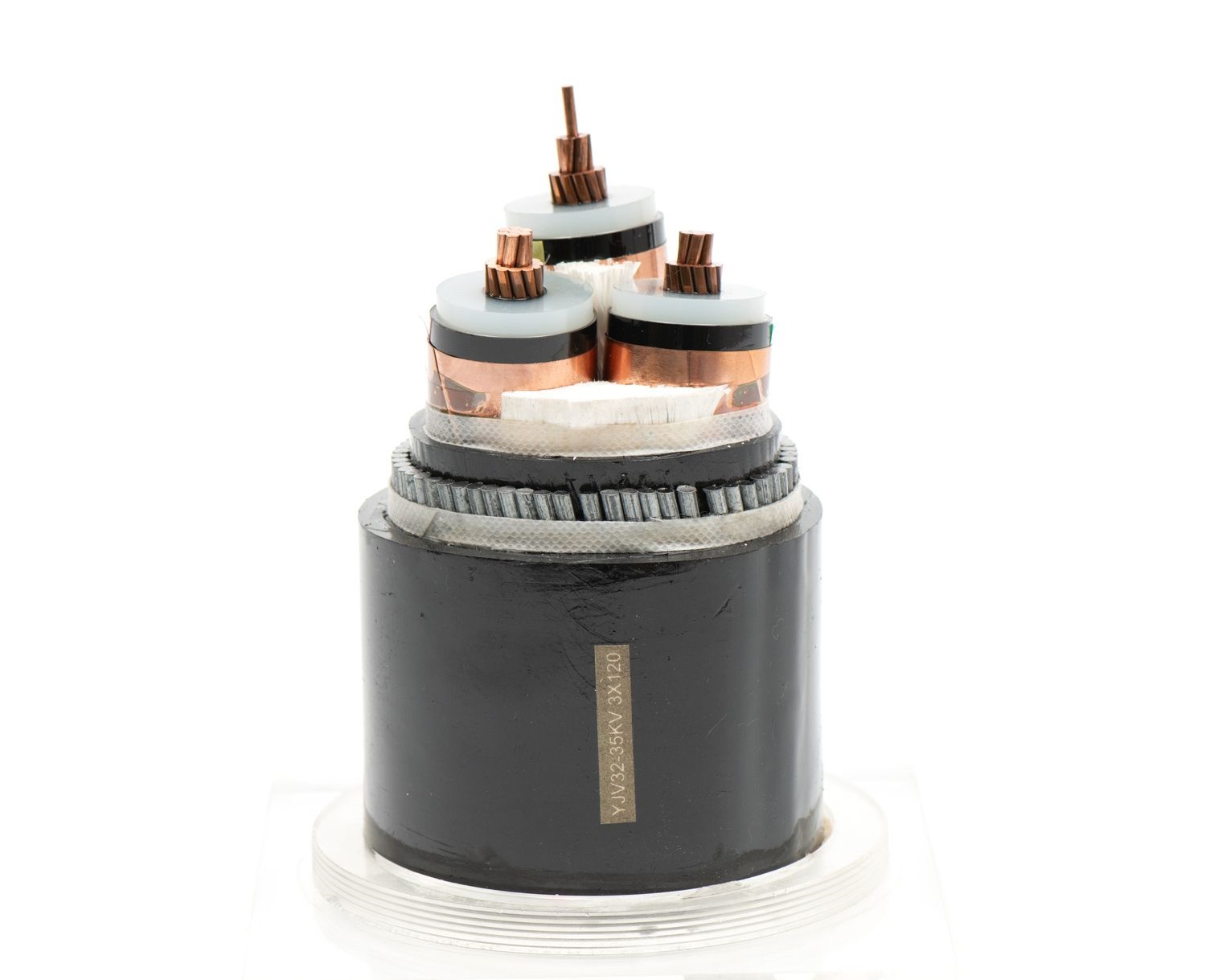

The cable carries electrical power over distance, while the accessory manages the points where the cable is joined, terminated, or connected to equipment. Cables are manufactured in controlled factory conditions, but accessories are often installed on site. This difference makes accessory design and installation quality especially important.
Medium voltage cable accessories restore insulation where the cable has been cut or prepared for connection. They also maintain conductor continuity, preserve shielding, and protect exposed areas from environmental damage. In practice, they turn separate cable lengths into a working distribution circuit.
The main categories include cable joints, cable terminations, separable connectors, and support accessories. Each type serves a specific function inside the cable system. Together, they support safe operation and consistent network performance.
These accessories are installed at substations, transformer connections, switchgear interfaces, underground joints, and feeder branches. They are also widely used in wind farms, solar projects, and industrial power systems. Any point where the cable ends, changes direction, or connects to equipment usually requires an accessory.
Power distribution relies on continuous current flow across the network. Medium voltage cable accessories keep the conductor path stable at joints, branch points, and terminations. A weak connection can create overheating, resistance increase, and early failure.
When a cable is stripped and prepared for connection, its original insulation structure is interrupted. The accessory rebuilds this protection through specially designed insulation and stress control elements. If that protection is incomplete, the risk of partial discharge and insulation failure rises sharply.
MV systems operate under high electrical stress, so unstable interfaces create serious safety risks. Proper accessories reduce the chance of flashover, leakage, and fault escalation. They also improve operating safety in enclosed equipment such as switchgear and transformer compartments.
Transformers, switchgear, and ring main units all require secure cable interfaces. Medium voltage cable accessories create the transition from cable to equipment without weakening electrical performance. The quality of these interfaces affects both normal operation and fault response.
When an accessory fails, the result may be feeder interruption, emergency maintenance, or production loss. Reliable accessories reduce unexpected outages and improve overall operating stability. This is especially important in utility and industrial systems where downtime can be costly.
Cable life is closely linked to the condition of its accessories. Well-matched and properly installed products preserve insulation integrity and mechanical stability over time. In many cases, the long-term performance of the system is defined by the accessory point rather than the cable body.
Cable joints connect two MV cable sections and restore the electrical and mechanical structure of the cable. They are used in route extensions, repair sections, and underground feeder networks. Straight joints and transition joints are both common in modern distribution systems.

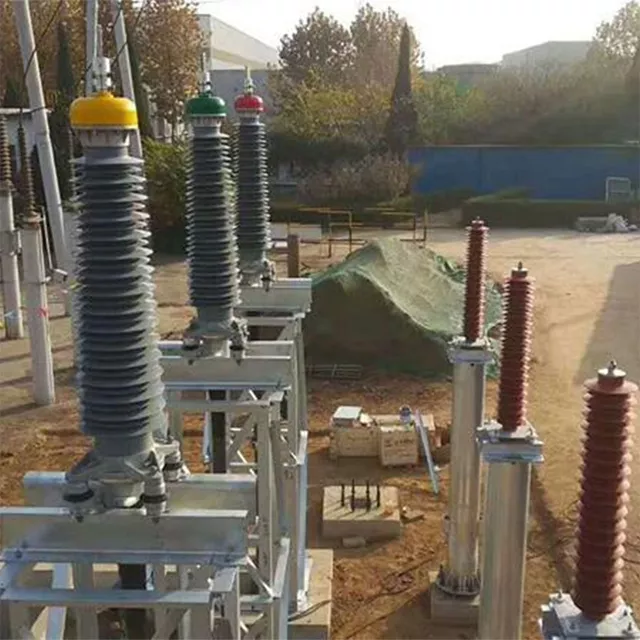

Cable terminations are used where an MV cable ends at equipment or at an overhead transition point. Their function is to control the electric field at the cable end while maintaining insulation and sealing. Indoor and outdoor designs differ according to environmental exposure and creepage requirements.
Separable connectors create screened, detachable interfaces between cable and equipment. They are widely used in compact switchgear and transformer applications. Their value lies in safe connection, easier maintenance, and reliable interface performance.
Support accessories include clamps, sealing parts, and mounting elements that stabilize the cable system. They do not carry the main current, but they reduce movement and mechanical stress around critical points. In outdoor and underground installations, this support has a clear effect on long-term reliability.
Accessory Type | Main Function | Typical Application | Main Failure Risk |
Cable Joint | Connect cable sections | Underground feeders, route repairs | Moisture ingress, overheating |
Cable Termination | End cable at equipment | Switchgear, transformers | Flashover, insulation stress |
Separable Connector | Create detachable interface | RMUs, substations | Interface mismatch, heating |
Support Accessory | Stabilize and seal | Cable entries, outdoor runs | Mechanical strain, outer damage |
An accessory rebuilds insulation where the cable has been cut back for connection. This prevents weak electrical points from forming around the conductor or screen transition. The insulation system must remain stable under voltage stress and site conditions.
Electric field concentration increases at sharp changes in geometry or material. Stress control components smooth the field and reduce electrical pressure at joints and terminations. This is one reason medium voltage cable accessories are engineered products rather than simple fittings.
MV cables include metallic screens and grounding paths that protect the system during normal service and fault conditions. Accessories must maintain those paths through the connection area. Poor grounding continuity can weaken safety and reduce overall network stability.
Water, dust, chemicals, and temperature variation can damage exposed interfaces over time. Good sealing protects the insulation system and keeps internal conditions stable. This becomes especially important in buried, coastal, and industrial environments.
Accessory failure often begins at the interface between conductor, insulation, and sealing components. Common causes include incorrect voltage class, incompatible cable dimensions, contamination during installation, and poor stress control. Moisture ingress is another major reason for early deterioration.
Even a high-quality product can fail if installation is rushed or poorly controlled. Incorrect cutback dimensions, wrong torque, poor alignment, and dirty surfaces all create risk. Small installation errors can later develop into major in-service faults.
When an accessory fails, the impact often goes beyond a single damaged part. It may cause feeder interruption, equipment stress, production loss, or urgent excavation work. In critical systems, the operational cost can quickly exceed the replacement cost of the accessory itself.
Product quality affects dimensional precision, material behavior, and installation consistency. Well-made accessories usually provide more stable electrical performance and better long-term sealing. In power distribution, low purchase cost can easily turn into high lifecycle cost.
Common Issue | Likely Cause | Possible Result |
Local overheating | Poor conductor connection | Reduced efficiency, early failure |
Partial discharge | Weak stress control or insulation defect | Gradual insulation breakdown |
Moisture ingress | Inadequate sealing | Corrosion, dielectric failure |
Flashover | Improper termination design or installation | Equipment damage, outage |
The accessory must match the nominal voltage and the highest system voltage of the network. It should also suit expected fault conditions and insulation requirements. Correct rating provides a stronger operating margin and more stable performance.
Cable type, conductor size, insulation material, and screen design all affect accessory selection. A product designed for one cable structure may not perform properly on another. Accurate cable data is essential before specification and installation.
Indoor rooms, outdoor substations, industrial plants, and buried routes all place different demands on an accessory. Temperature, humidity, pollution, and space constraints can all influence product choice. Selection should reflect actual site conditions rather than catalog data alone.
Technical support reduces specification errors and improves installation results. Clear guidance on compatibility, installation steps, and application limits can prevent costly mistakes. This becomes even more important in complex networks and export projects.
Long-term performance starts with disciplined installation practice. Clean cable preparation, accurate dimensions, and correct connector tightening all matter. Consistent procedures reduce variation between crews and sites.
Inspection after installation confirms whether the accessory has been assembled correctly. Depending on the project, this may include visual checks, continuity verification, and insulation testing. Early inspection is far less costly than post-failure troubleshooting.
Some MV systems require only limited routine attention, but critical networks still benefit from regular condition checks. Thermal inspection, sealing review, and general condition assessment can reveal early problems. This is especially useful in industrial, outdoor, and high-load environments.
A power distribution system should be evaluated over its full operating life rather than at purchase stage alone. Durable materials, stable design, and sound technical documentation support better long-term results. At many connection points, accessory quality shapes the reliability of the entire circuit.
Medium voltage cable accessories are essential to safe and reliable power distribution. They connect, terminate, insulate, seal, and protect MV cable systems at the points where failure is most likely to begin. Correct selection, product quality, and skilled installation all influence network stability, maintenance demand, and service life. East Energy Electrical Engineering Co., Ltd. (4E) provides medium voltage cable accessories, cable systems, and related equipment designed for practical field application. Its product range, technical service capability, and international project experience support stronger performance in utility, industrial, and renewable energy power distribution projects.
They are used to join, terminate, seal, and protect medium voltage cables. They also control electrical stress and maintain insulation at connection points.
In many systems, medium voltage ranges from about 7.2 kV to 42 kV. The exact definition depends on local standards and project design.
The main types are cable joints, cable terminations, separable connectors, and support accessories. Each serves a different role in the cable system.
They matter because many network faults begin at joints or terminations. Reliable accessories improve safety, continuity, and service life.
Failure often results from wrong selection, poor installation, contamination, or weak sealing. Moisture ingress and poor stress control are also common causes.
Start with voltage class, cable structure, and installation environment. Then confirm compatibility and technical guidance before use.
Yes. In many systems, the weakest point is not the cable body but the connection point created by the accessory.
