In the realm of electrical engineering, power cable refers to the crucial component that transmits electrical energy from a power source to various devices and systems. Understanding the specific types, voltage ratings, and insulation materials of power cables is vital for ensuring their safe, efficient, and compliant use in both residential and industrial settings. In this article, we will explore the different electrical cable types, voltage ratings, cable insulation materials, power cable standards, and factors to consider when selecting the appropriate power cable.
Power cables come in different types, each designed for specific voltage ratings and applications. The classification of power cables is typically based on their voltage handling capacity, construction materials, and insulation. The three main electrical cable types include low voltage (LV), medium voltage (MV), and high voltage (HV) cables. Each of these cables serves distinct purposes and must meet particular standards for safety and efficiency.
Low voltage (LV) power cables are designed to operate at voltages up to 1 kV. These power cables are commonly used in residential and commercial applications, where the electrical demand is lower, such as in lighting circuits and general household appliances. They are typically made from copper or aluminum conductors insulated with materials like PVC or XLPE (cross-linked polyethylene). Some LV cables also feature an additional protective sheath or armor for mechanical protection.
Key Characteristics:
Voltage Rating: Up to 1 kV
Applications: Residential wiring, commercial installations, lighting circuits
Construction: Copper or aluminum conductors, PVC or XLPE insulation, optional armor
These power cables are built according to power cable standards like IEC 60227 and UL 83 to ensure optimal safety and functionality in low-voltage applications.
Medium voltage (MV) power cables typically operate in the range of 1 kV to 36 kV. They are mainly used for the distribution of electrical power in industrial plants, commercial buildings, and substation networks. These cables have multiple layers of insulation to ensure safety and reliability at medium voltage levels. Many MV cables also feature metallic shielding to prevent electrical faults and mechanical damage.
Key Characteristics:
Voltage Rating: 1 kV to 36 kV
Applications: Substations, industrial facilities, commercial power distribution
Construction: Multiple layers of insulation, metallic shielding, optional armor
To meet the needs of MV applications, these cables must comply with power cable standards such as IEC 60502 and IEEE 48, which focus on performance, durability, and safety.

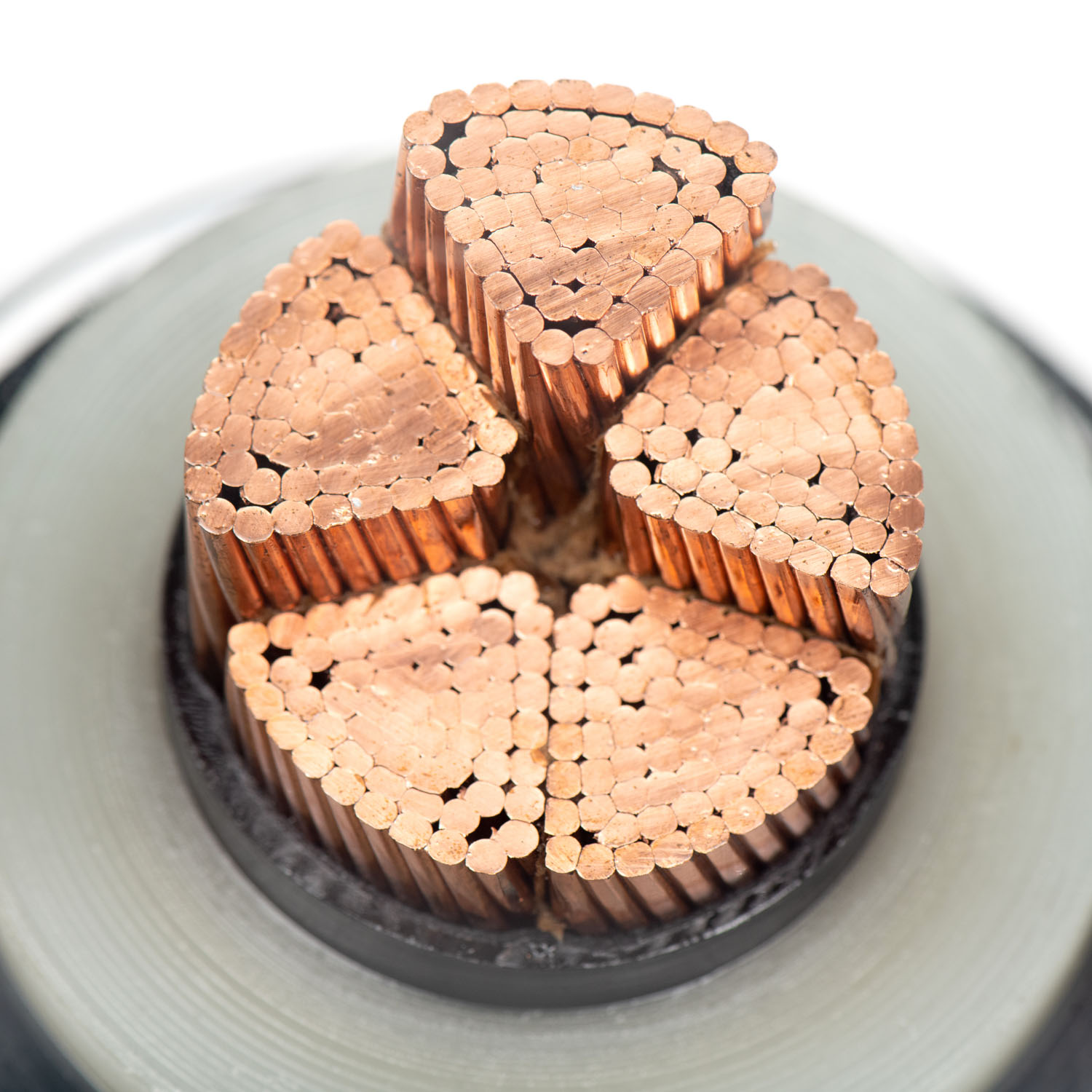

High voltage (HV) power cables are designed for voltages above 36 kV and are essential for the transmission of electricity over long distances in power grids. These power cables use advanced insulation materials, such as XLPE and EPR (ethylene propylene rubber), to handle high electrical stress. HV cables may also be shielded and armored to protect them from electrical faults and physical damage.
Key Characteristics:
Voltage Rating: Above 36 kV
Applications: Power transmission over long distances, interconnection of power grids
Construction: Advanced insulation materials (XLPE, EPR), metallic shielding, armor
High-voltage cables must meet stringent power cable standards, such as IEC 60840 and IEC 62067, which ensure their durability and safety in high-voltage environments.
The voltage rating of a power cable determines the maximum electrical potential the cable can safely handle. This rating is a crucial consideration when selecting cables for any electrical installation. Power cables with different voltage ratings are used for varying applications, including residential, industrial, and utility installations.
Low Voltage: For residential buildings and small commercial applications, low voltage power cables are sufficient.
Medium Voltage: For industrial installations and power distribution from substations, medium voltage power cables are required.
High Voltage: To transmit electricity over long distances or interconnect power grids, high voltage power cables are essential.
Selecting the correct voltage rating ensures the safe operation of electrical systems by preventing overheating, fire hazards, and potential cable failure.
The insulation material used in power cables plays a critical role in determining the cable’s ability to withstand electrical stresses, environmental factors, and mechanical impacts. Common cable insulation materials include PVC, XLPE, and EPR, each offering different properties suited for specific applications.
PVC (Polyvinyl Chloride): A popular insulation material for low voltage power cables due to its cost-effectiveness and ease of use.
XLPE (Cross-Linked Polyethylene): Offers better heat resistance, electrical insulation, and mechanical protection, commonly used in medium voltage and high voltage cables.
EPR (Ethylene Propylene Rubber): Known for its high resistance to electrical stress and environmental conditions, commonly used in high voltage cables.
The choice of cable insulation materials depends on the electrical, environmental, and mechanical requirements of the application.
The safety, performance, and reliability of power cables are ensured through strict adherence to power cable standards. Various international bodies, such as the International Electrotechnical Commission (IEC), National Electrical Manufacturers Association (NEMA), and Underwriters Laboratories (UL), set the standards for power cables used in different regions and applications.
The IEC provides internationally recognized standards for power cables, covering a wide range of criteria, including insulation, voltage ratings, and performance testing. For example, IEC 60227 applies to PVC-insulated cables, while IEC 60502 specifies the requirements for medium voltage cables.
In the United States, NEMA establishes power cable standards for electrical products, including cables. These standards focus on safety, durability, and performance, ensuring the cables can withstand typical application conditions in North America.
Underwriters Laboratories (UL) certifies power cables that meet their rigorous safety standards. UL listings are essential for compliance with local electrical codes and regulations in the United States. A UL-listed power cable guarantees that it has passed necessary safety tests and is safe to use in electrical installations.
Selecting the right power cable is critical to ensure safety, reliability, and efficiency in electrical installations. There are several important factors to consider when choosing a power cable for a specific application:
The voltage rating of a power cable must be appropriate for the voltage level of the application. Using a cable with an inadequate voltage rating can lead to overheating, insulation breakdown, and cable failure.
Select a power cable with sufficient current-carrying capacity for the electrical load. Cables with too small a cross-sectional area or incorrect conductor material can overheat and cause safety hazards.
Consider environmental factors such as temperature extremes, moisture, chemical exposure, and potential physical damage when selecting a power cable. For outdoor or harsh environments, cables with better insulation and mechanical protection, like armored cables, are necessary.
Determine whether the power cable requires mechanical protection such as armoring or shielding. Armored cables are essential in environments where the cables may be subject to physical impact or abrasion.
Understanding the various power cable types, their voltage ratings, cable insulation materials, and power cable standards is critical for selecting the right power cable for any installation. By considering factors like voltage rating, current capacity, environmental conditions, and mechanical protection, you can ensure safe and efficient power transmission.
