Why are high voltage XLPE insulated power cables essential for energy transmission? These cables ensure reliable and efficient electricity flow over long distances. As electrical systems evolve, efficient solutions are crucial. This article explores why high voltage XLPE cables are necessary for power transmission. We’ll cover their benefits and applications.
For reliable and durable cables, 4E offers high-performance XLPE power cables. Learn more about our products to enhance your transmission systems.
To understand why high voltage XLPE insulated power cables are essential, it’s important to first define what they are and their role in modern electrical systems.

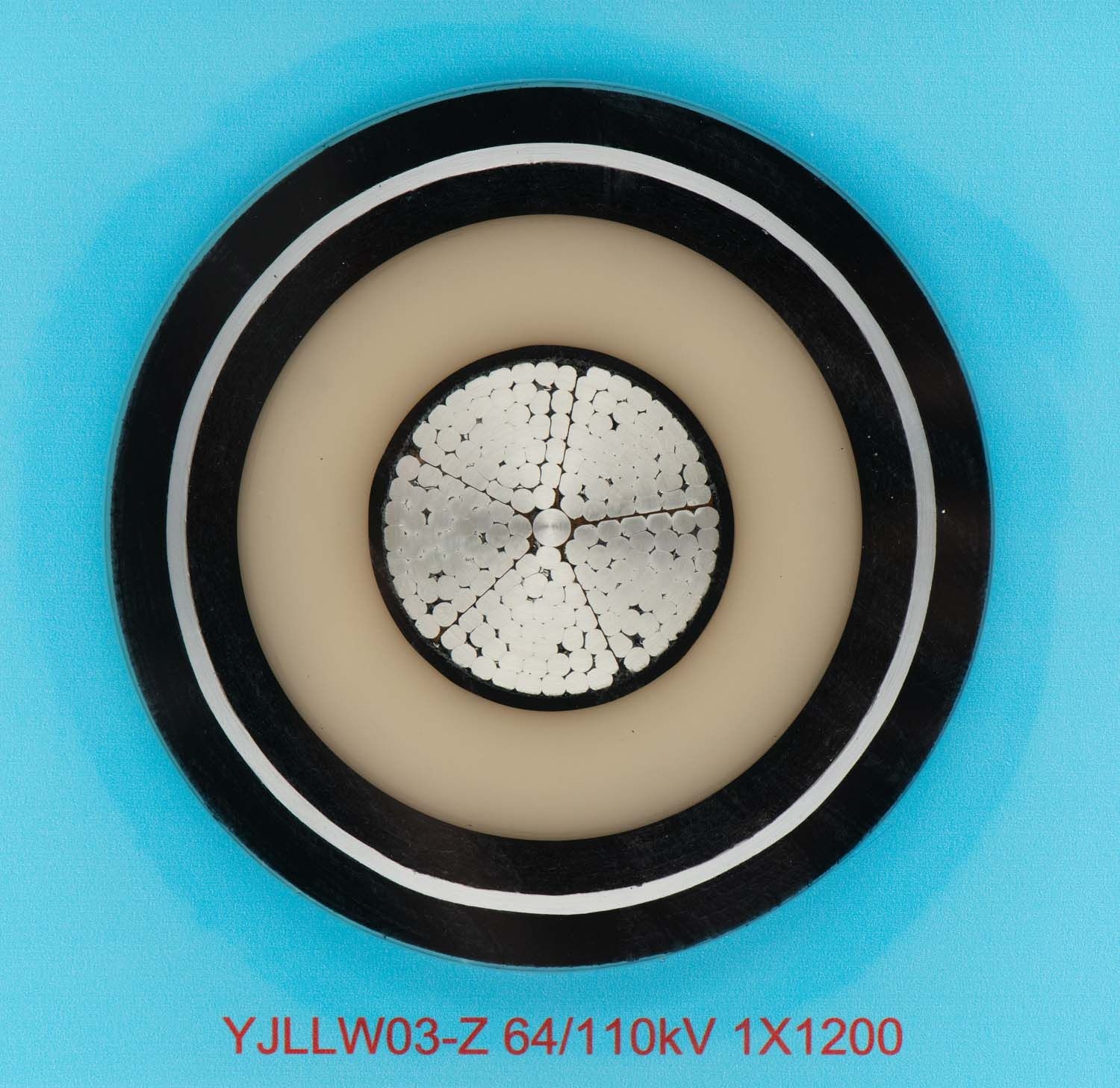

High voltage XLPE (Cross-Linked Polyethylene) insulated power cables are used for the transmission of electrical energy at high voltages. These cables are specifically designed with cross-linked polyethylene as their insulating material, a process that enhances the thermal and mechanical properties of the cables. The insulation ensures that high voltage does not cause damage, thus providing a reliable way to transmit electricity over long distances.
XLPE insulation is known for its superior thermal resistance, dielectric strength, and mechanical properties. The process of cross-linking polyethylene enhances its stability, making it ideal for high-voltage applications. It offers lower dielectric losses, ensuring that less energy is lost during transmission, which is critical for efficient energy delivery.
● High Dielectric Strength: XLPE insulation can withstand high electrical voltages without failure, which ensures stable transmission.
● Thermal Resistance: XLPE can withstand higher temperatures than most other insulations, providing reliable performance in challenging environments.
● Durability: XLPE cables are resistant to environmental stress, moisture, and chemicals, which makes them ideal for underground and industrial installations.
Characteristic | XLPE Insulated Power Cables |
Dielectric Strength | High (up to 500 kV) |
Thermal Resistance | Excellent, withstands high temperatures (up to 90°C continuously) |
Durability | Resistant to mechanical stress, moisture, and chemicals |
Voltage Tolerance | Suitable for high voltage (up to 500 kV) |
High voltage XLPE insulated power cables are essential for delivering power efficiently over long distances with minimal energy loss.
XLPE cables contribute to the reduction of power loss due to their low dielectric losses, which minimizes energy dissipation. Traditional cables lose energy as heat, but XLPE cables retain more energy, thus ensuring more efficient power transmission.
Cable Type | Power Loss (per km) | Efficiency |
XLPE | Low (e.g., 1-2%) | High |
PVC | Moderate (e.g., 4-6%) | Moderate |
The ability of XLPE cables to withstand higher temperatures and handle higher electrical loads without degradation ensures they can manage the increasing power demands in modern grids. XLPE cables are capable of operating in high voltage environments (up to 500 kV), providing high capacity for power transmission systems.
XLPE cables are particularly well-suited for harsh environments such as underground and submarine installations. They resist mechanical damage, UV radiation, and environmental stressors, which ensures long-lasting, uninterrupted service. This durability reduces the frequency of maintenance and enhances the overall lifespan of electrical transmission systems.
When choosing cables for energy transmission, ensure that the XLPE insulation is rated for your voltage and environmental conditions to optimize efficiency and longevity.
XLPE cables offer several key advantages that make them the preferred choice for efficient energy transmission.
One of the most notable advantages of XLPE insulation is its high temperature tolerance and low dielectric losses. This makes XLPE cables ideal for high voltage transmission where heat and electrical stress are common issues. XLPE cables maintain their performance under extreme temperatures, contributing to efficient energy transmission.
XLPE cables are designed with excellent mechanical strength and flexibility, making them easier to install compared to other cables. Their lightweight design also reduces installation time and costs, especially in challenging installations such as underground or offshore power transmission networks.
In addition to their mechanical strength, XLPE cables offer enhanced safety due to their fire resistance and non-toxic properties. They are also environmentally friendly, as they do not contain harmful substances like lead. XLPE cables comply with environmental regulations, ensuring that they are safe to use in environmentally sensitive areas.
XLPE cables are used in a wide range of applications due to their superior properties. These include long-distance power transmission, industrial use, and renewable energy systems.
XLPE cables are integral to modern power transmission systems, particularly in high-voltage networks. Their ability to transmit electricity efficiently over long distances without significant loss makes them ideal for use in national and regional grids.
XLPE cables are also used in industrial power supply systems and commercial installations, ensuring reliable and high-capacity power transmission to factories, offices, and large-scale facilities. Their mechanical durability and flexibility make them suitable for installations in harsh industrial environments.
The growing reliance on renewable energy sources, such as wind and solar power, has also driven the demand for XLPE cables. These cables are crucial in connecting renewable energy farms to the power grid, ensuring efficient energy transmission from remote locations to urban centers.
One of the main advantages of XLPE insulated power cables is their suitability for underground and underwater installations, where their resistance to moisture and mechanical stress is particularly beneficial. This makes them ideal for submarine power lines and underground electrical distribution networks.
Application Area | Installation Type | Environmental Conditions | Key Benefits |
Power Transmission Networks | Above ground, underground | Harsh weather, urban settings | High efficiency over long distances |
Industrial and Commercial Installations | Indoor, underground | Industrial environments | High capacity, flexibility |
Renewable Energy Systems | Underground, overhead, offshore | Remote areas, varying climates | Efficient power transfer from renewable sources |
Underground and Submarine Installations | Underground, submarine | Moisture, mechanical stress | Resistance to moisture, long-lasting performance |
Selecting the right XLPE cable for your energy transmission needs is crucial to ensure safety, efficiency, and long-term durability.
Before selecting an XLPE power cable, it is essential to determine the voltage and current requirements of your system. Choose cables rated for the specific voltage level to avoid overloading the system and ensure safe operation. Proper sizing also helps prevent overheating and power loss during transmission.
The installation environment plays a significant role in cable selection. XLPE cables can be installed in various conditions, including underground and underwater, as they offer moisture resistance and chemical durability. Make sure to assess your installation environment, whether it's exposed to harsh temperatures, moisture, or chemicals, to choose the most suitable cable.
Ensure that the XLPE cables you choose comply with international standards such as IEC 60840 and IEC 62067, which are crucial for ensuring performance, safety, and compatibility across different electrical systems.
While XLPE cables offer superior performance, it's useful to understand how they compare to other insulation materials like PVC.
When comparing XLPE cables to PVC-insulated cables, XLPE offers superior thermal resistance, mechanical strength, and electrical performance. PVC cables, while more cost-effective, are not suitable for high-voltage applications and have lower heat tolerance. XLPE cables are better suited for long-distance, high-voltage transmission and environments with high mechanical or environmental stress.
Although XLPE cables may have a higher initial cost than PVC cables, their long-term durability and reduced maintenance costs make them a cost-effective solution for high-voltage and high-performance applications. Their lower energy losses and longer lifespan justify the initial investment, especially for large-scale transmission networks.
High voltage XLPE insulated power cables are crucial for efficient energy transmission. Their excellent thermal resistance, mechanical durability, and superior electrical performance make them the top choice for modern power grids and renewable energy systems. 4E offers high-quality XLPE cables that help reduce energy loss, increase reliability, and ensure the safety of electrical systems.
Always select XLPE cables based on the voltage and environmental conditions of your application to maximize efficiency, safety, and cable longevity.
A: High voltage XLPE insulated power cables minimize energy loss, offer superior electrical performance, and provide enhanced thermal and mechanical durability, making them ideal for long-distance power transmission.
A: XLPE cables offer higher thermal resistance, better dielectric properties, and enhanced mechanical strength compared to PVC cables, making them more suitable for high voltage and demanding environments.
A: XLPE insulated power cables offer increased power capacity, lower energy loss, and greater durability in harsh environments, ensuring reliable and efficient energy transmission.
A: Transition to high voltage XLPE cables when you require more efficient power transmission with minimal energy loss and higher voltage tolerance, especially in industrial or long-distance installations.
