A cable accessories factory should choose testing equipment from its product risks and release claims, not from a generic laboratory checklist. The equipment needed to assemble a low-voltage connector kit is different from the equipment needed to verify medium-voltage terminations or high-voltage joints. Yet every serious factory shares the same objective: it must identify materials, control critical dimensions and assembly steps, detect unacceptable product before shipment, and retain credible records. This guide separates the essential layers of cable accessory testing equipment so a manufacturer can invest in useful capability without confusing expensive instruments with an effective quality system.
Start with the product specification, cable interface, voltage class, and customer acceptance criteria; they determine the test plan.
Build capability in layers: incoming inspection, in-process control, final or routine checks, development support, and access to specialist qualification testing.
Give as much attention to test fixtures, calibration, safety, and records as to the test instrument itself.
Do not use a final electrical check as a substitute for controlling material identity, dimensions, cleanliness, or assembly sequence.
Outsourcing specialist tests can be sensible, but responsibility for the product evidence remains with the manufacturer.
Cable accessories operate at the connection between cable and equipment or between cable sections. Depending on the product, they need to maintain electrical continuity, insulation performance, screen or earth continuity, field control, sealing, and mechanical integrity. A factory’s checks should therefore answer three distinct questions.
First, are the incoming materials and bought-in components the correct, approved items? Second, did production create the intended geometry and assembly condition? Third, does the finished product meet the defined release criteria? The first two questions are often where preventable failures are stopped. A laboratory that only performs a final test may miss the supplier substitution, damaged molded body, wrong connector, incomplete kit, or incorrect assembly orientation that created the risk.

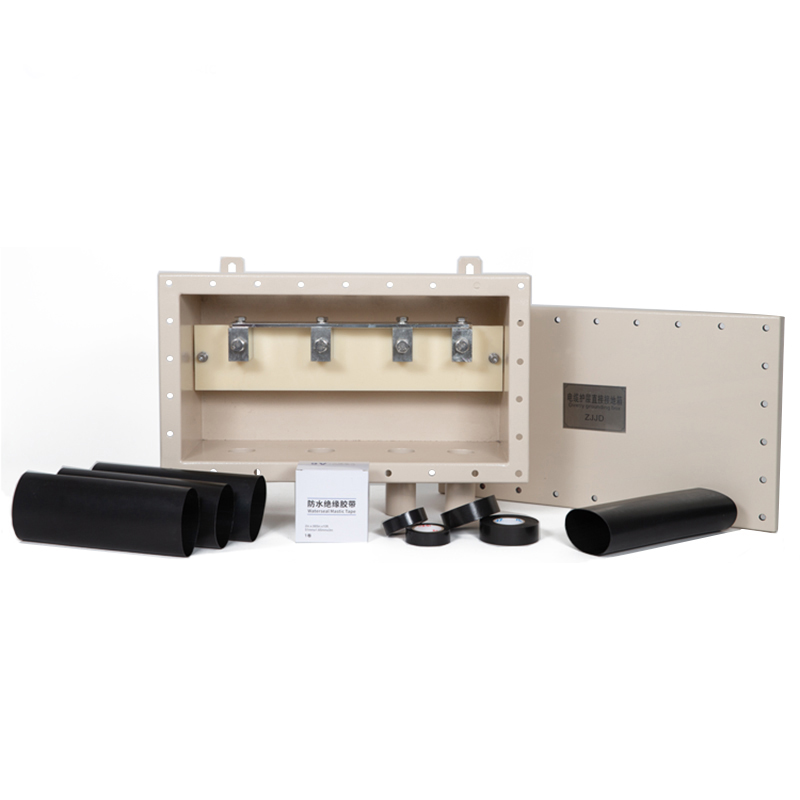

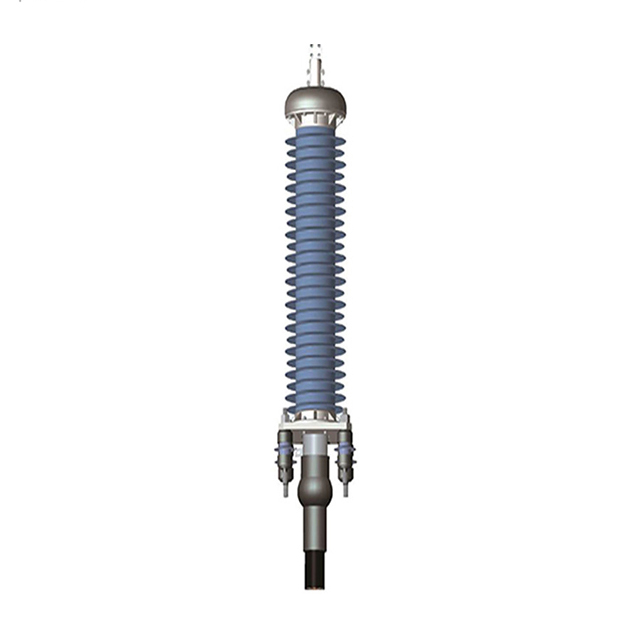

The testing scope must follow the product. 4E cable accessories include medium-voltage products in the 6 kV to 35 kV range and high-voltage accessories for 66 kV and above. Those product categories cannot reasonably share a single universal test assumption. The test plan, safety arrangements, fixtures, and external qualification route should be reviewed separately for each released family.
Incoming inspection prevents a factory from building quality problems into every unit. It begins with identification: part number, revision, supplier approval, lot number, quantity, condition, and storage requirement. The inspection depth should reflect the component’s role. A critical molded insulating body, stress-control component, connector, sealing part, or conductive screen item deserves a defined verification method. Simple consumables may require identity and shelf-life control rather than a complex test.
Essential incoming-inspection equipment commonly includes calibrated dimensional instruments, suitable gauges, visual inspection aids, scales when material quantity or kit weight matters, labeling or barcode tools, and protected sample-retention storage. The exact measuring range and resolution should be selected from drawings and tolerances. Buying a high-resolution device without a method to position the flexible part consistently does not create a reliable measurement.
Material condition is also a test input. Elastomeric components can be damaged by poor handling, contamination, or deformation. Adhesives, mastics, cleaning materials, and certain compounds may have shelf-life or environmental limits. Establish a status system that separates accepted, rejected, on-hold, and not-yet-inspected material. It is inexpensive compared with a field claim and gives auditors a visible route from delivered lot to finished kit.
In-process control should verify what can no longer be seen or corrected later. For a termination or joint, this might include component orientation, insertion depth, location of a stress-control part, connector installation, torque or compression setting, seal placement, interface cleanliness, or kit-content completion. The method can be visual, dimensional, mechanical, electrical, or digital, but it must be repeatable and connected to a clear acceptance rule.
Operators need fixtures and gauges designed for the part, not improvised by memory. A go/no-go gauge can be more useful than a general-purpose caliper when it checks a single critical location consistently. A torque-controlled tool may need programmed settings, access control, and a response plan for an out-of-range result. A crimp process may need die identification, a defined sequence, and inspection of the resulting connection. For manually assembled kits, barcode scanning or a verified pick list can prevent a missing small component from becoming a customer problem.
The factory should record only information it can use. Excessive forms invite unreliable entries. A strong record identifies the product, lot, station, operator or shift, instrument or tool where relevant, result, and disposition. Trend the data where it can reveal drift. If a dimension slowly approaches a limit or a particular tool creates repeated rework, action can be taken before a failure reaches final test.
Routine testing is the evidence used to release the product under the agreed manufacturing plan. The exact content comes from the product’s applicable requirements and customer contract. It may include dimensional confirmation, electrical continuity, insulation-related checks, visual and marking inspection, kit verification, or other defined examinations. It should not be called a type test merely because it is performed with electrical equipment.
Test layer | Primary purpose | Typical equipment category | Record needed |
|---|---|---|---|
Incoming inspection | Confirm identity, condition, and critical characteristics of received items | Gauges, visual aids, scales, traceability tools | Supplier lot, acceptance result, inspection reference |
In-process control | Prevent assembly or dimensional errors from moving downstream | Dedicated fixtures, torque or compression tools, go/no-go gauges | Product or batch ID, station result, abnormal action |
Routine release | Confirm each product or defined production unit meets release criteria | Product-specific electrical test equipment, dimensional and packing checks | Test result, instrument or fixture identity, release status |
Development verification | Learn whether a new or changed design performs as intended | Specialized fixtures, environmental or mechanical equipment, analysis tools | Test plan, configuration, observations, conclusions |
Formal qualification | Demonstrate performance under a specified external or internal protocol | Accredited-lab or specialist high-voltage capability | Report, sample traceability, configuration and revision |
A cable accessories factory should explicitly define what a routine-test failure means. Is the product reworkable? Does the event require lot containment? Must a fixture be checked? Is an engineering review required? A test system that merely displays pass or fail without a disposition process is incomplete.
When product requirements call for high-voltage testing, the test arrangement must be designed as a controlled safety system. The equipment itself is only one component. The area needs suitable segregation, warning indications, interlocks or controlled access appropriate to the risk, grounding arrangements, emergency procedures, trained personnel, inspection of leads and connections, and documented operating instructions. The product fixture must also be appropriate; an improvised adapter can create unsafe conditions or meaningless readings.
Do not specify a high-voltage test set solely by its maximum output. Determine the intended tests, product capacitance or configuration where relevant, required control and measurement functions, available space, fixture needs, applicable safety regulations, and service support. Then create a safe work method and confirm it through commissioning. The test area should not become a shortcut used by untrained staff under production pressure.
Factory management should also understand the limits of a test. A routine electrical check can provide valuable release evidence, but it does not prove every long-term field condition. That is why formal type and development tests exist. In technical literature on cable accessory testing, development tests, routine tests, and type tests are treated as separate categories; a factory should maintain the same distinction in its own test matrix.
New products and significant changes need a verification route that goes beyond routine production control. Depending on the product, this may involve electrical, thermal, mechanical, environmental, or installation-related evaluation under a defined standard or customer specification. A start-up does not necessarily need to own every piece of specialist equipment. External accredited laboratories and specialist partners may offer a better route during early development.
Outsourcing does not transfer the design responsibility. The manufacturer must control the sample configuration, drawing revision, materials, lot traceability, preparation instructions, test request, deviations, report review, and link from the report to the released production version. If a mold, material, connector, process setting, or geometry changes materially, evaluate whether the existing evidence still applies. A qualification report for a previous configuration is not a blanket certificate for all future variants.
This is particularly relevant for complex accessory families. A 4E cable termination range covers heat-shrink, cold-shrink, and molded options. Each technology can require different samples, fixtures, and validation conditions. A factory’s test plan should be as specific as the product architecture.
An instrument is only useful if the factory knows that it is suitable and in calibration. Keep a calibration register that records the asset identity, location, range, status, due date, and action when an item is overdue or found out of tolerance. Clearly mark instruments so operators can see whether they are available for use. Maintain master gauges or reference standards when the process requires them.
Measurement-system discipline also means evaluating the fixture and method. Flexible, curved, or soft components can give different readings when held differently. If a dimension is critical, define the datum, contact point, pressure, environment if relevant, and sample condition. Run a simple repeatability study with more than one operator when practical. The result may show that the issue is not the caliper but the method.
The same approach applies to electrical test fixtures. Identify the fixture by part number and revision, inspect it, protect it from damage, and retain the configuration in the test record. If a result changes unexpectedly, the investigation should consider the product, instrument, fixture, lead set, and method rather than assuming the product is always at fault.
The best data system is one that reliably links finished product to its evidence. A basic implementation may use controlled paper records and lot labels; a larger operation may use barcodes and a manufacturing system. Either approach should preserve the same chain: customer order or production order, finished kit, bill of materials, material lots, key process records, test result, release decision, and shipment.
Use dashboards carefully. Track measures that support decisions, such as incoming rejection rate, first-pass yield, rework cause, test failure by station, calibration status, supplier issue rate, and customer returns. Do not create a long list of metrics without ownership. A recurring defect should trigger containment, root-cause analysis, corrective action, effectiveness review, and a documented update where needed.
For a growing plant, this information helps prioritize investment. Repeated assembly variation may justify a better fixture. Long test queues may justify a second test station. Supplier variation may justify tighter incoming checks or a qualification review. Data should make the factory smarter, not merely more documented.
Begin by drafting the released product test matrix. List each product family, critical characteristic, inspection stage, method, equipment or fixture, acceptance criterion, record, and responsible role. Use it to decide the first purchase list. The initial list should support safe receiving inspection, repeatable assembly, controlled routine release, and reliable records.
Next, specify each test station as a package: instrument, product fixture, work instruction, calibration plan, safety arrangement, data capture, spare parts, and commissioning test. This prevents the common problem of buying a capable instrument with no safe or repeatable way to use it on the product. Then plan development and type-test access for each family before the sales team makes performance claims.
Finally, review the list after pilot builds. Some equipment will prove essential; other items may be better deferred. The priority is not to fill a laboratory. It is to make every released unit traceable, properly assembled, and supported by appropriate evidence.
The right testing equipment for a cable accessories factory is a connected system of methods, people, fixtures, instruments, records, and safety controls. Incoming inspection protects the process, in-process checks protect critical interfaces, routine tests protect release, and development or type testing protects the product claim. 4E can support manufacturers who need to align cable accessory scope, factory planning, and production readiness. Invest first in the controls that allow a new line to make the same acceptable product again and again; add specialized capability when the product strategy and volume make it valuable.
No. It needs suitable routine control for its released products and a defined route to specialist testing when required. Some formal qualification work can be performed externally, provided samples, configurations, and reports are controlled.
Check identity, revision, lot, condition, storage status, and the critical characteristics specified by the approved inspection plan. The plan should focus on features that affect fit, insulation, sealing, or assembly performance.
No. Visual inspection can detect damage, missing components, or obvious assembly defects, but it cannot prove all electrical characteristics. It should be one part of a product-specific control plan.
Use an interval based on the instrument, its use, risk, manufacturer guidance, and previous history. The factory should also protect equipment from damage and remove it from use when status is unclear.
Fixtures position the product and create the interface between the instrument and the test item. A poor or damaged fixture can create unsafe conditions, false results, or inconsistent measurements even when the instrument itself is capable.
Retain the product or batch identity, date, result, applicable method, test station or fixture identity where relevant, operator or reviewer, and release or disposition decision. Link the record to the material and production history.
