They stay strong even in tough places.
You can put them in easily because they are light and bendy.
They do not cost much, so you save money.
PVC insulated power cables have strong insulation. They keep electricity inside and stop shocks. These cables are light and bend easily. This makes them fast and simple to install in many places. PVC cables do not get damaged by water or chemicals. This helps them last a long time in homes and factories. They do not cost much and work well for less money than other cables. PVC cables also help with fire safety. They slow down fire and follow tough safety rules.
People use pvc insulated power cables in many electrical systems. These cables are simple but also strong. They have three main parts: a conductor, insulation, and a protective sheath. The conductor moves electricity through the cable. Most conductors are made from copper or aluminum. The insulation and sheath are made from pvc. This keeps electricity inside and stops water or chemicals from getting in.
International rules help people pick and use these cables. Some common rules are IEC 60227, UL 62, ASTM D1784, RoHS, and IEC 60502. These rules make sure your cables are safe and work well for your projects.

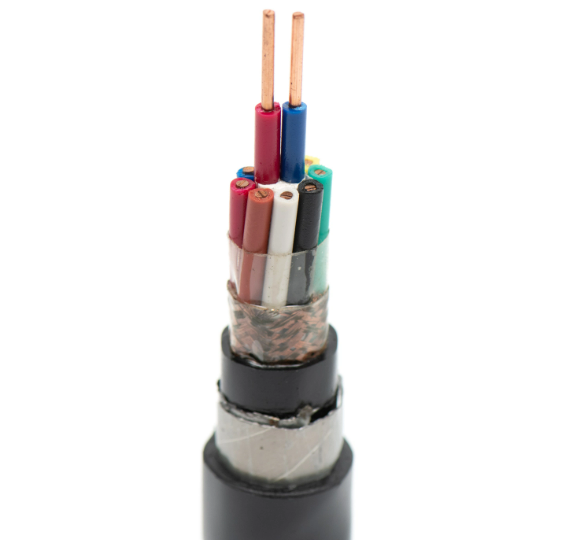

Standard Structure of PVC Insulated Power Cables:
Rated Voltage: 0.6/1KV
Conductor Types: Class 2 stranded copper or aluminum
Number of Cores: Single, double, three, four, or five cores
Insulation Material: Polyvinyl chloride (PVC)
Armour Methods: Unarmored, Steel Wire Armour (SWA), Steel Tape Armour (STA), Aluminium Wire Armour (AWA), Aluminium Tape Armour (ATA)
Sheath Material: Polyvinyl chloride (PVC)
Pvc insulation has many good points. It keeps electricity from leaking out. It also protects you from getting shocked. Pvc has high dielectric strength, so it keeps energy inside and signals strong. You can use these cables where it gets hot because pvc does not melt easily.
Pvc also stands up to water, grease, and cleaning stuff. It does not break down fast, even in hard places. The insulation thickness changes with the size of the conductor. You can see how pvc compares to other cables in the table below:
Conductor Size | XLPE | PVC | EPR |
|---|---|---|---|
1.5mm² | 0.7mm | 0.8mm | 1.0mm |
400mm² | 2.0mm | 2.6mm | 2.6mm |
Pvc insulation works well from −15°C to +70°C. Some special types can handle up to 105°C. You get good safety and long life with pvc insulated cables.
There are many kinds of pvc insulated power cables for different jobs. Some are best for homes, and others are good for factories or outside.
Here is a quick list of the most popular types and what they do:
Characteristic | Description | Application Areas |
|---|---|---|
Durability | Tough pvc wrap fights grease, oil, and scratches. | Homes and factories |
Flexibility | Very bendy, good for many places. | Buried, indoor, outdoor, ducts |
Waterproof | Pvc coating stops water from getting in. | Underground and basements |
Fire Resistance | Slows fire, making electrical systems safer. | Homes, offices, factories |
Chemical Resistance | Handles chemicals like grease and oil. | Factories |
You can pick cables with one or more cores, armored or not, for what you need. Pvc insulated cables are safe, bendy, and save money for many electrical jobs.
Strong insulation keeps your electrical systems safe. PVC insulated power cables give you this safety. The insulation keeps electricity inside the cable. It stops electricity from leaking out. This helps stop shocks and keeps devices working well. Tests show these cables can handle a strong electric field. They also have high current density and good Joule heating resistance. These things mean the cables work well every day. If it gets too hot, the insulation can get weak. This happens when it is hotter than 55°C. You should use these cables where the temperature is normal. This helps your electrical system work its best.
Moisture and chemicals are common in homes and factories. You also find them outside. PVC insulated cables protect your wires from these dangers. The PVC sheath blocks water and most chemicals. This makes your cables last longer. You can see how these cables compare to others in the table below:
Type of Cable | Moisture Resistance | Chemical Resistance | Cost | Flexibility |
|---|---|---|---|---|
PVC | Moderate | Moderate | Low | Moderate |
Rubber | High | High | High | High |
XLPE | High | Moderate | Moderate | Moderate |
You get good protection for most jobs. For example, you can use these cables in kitchens or basements. You can also use them in factories where spills happen. You do not need to worry about quick damage from water or cleaning stuff. This makes PVC insulated power cables a smart choice for many places.
Fire safety is important in every building. PVC insulated cables help slow down fire. They meet strict fire safety standards. You can check the main standards in this table:
Standard | Description |
|---|---|
IEC60332-1 | Tests flame retardancy of a single cable laid vertically. |
IEC60332-2 | Evaluates flame retardancy of a single cable laid at an angle. |
IEC60332-3 | Assesses flame retardancy of bundled cables when burning vertically. |
UL910 | Plenum Flame Test for cables, requiring specific flame spread and optical density limits. |
You can trust these cables to help keep you safe. For example, if a fire starts in a wall, the cables will not let flames spread fast. This gives you more time to act and stay safe.
You want cables that last long and bend easily. PVC insulated power cables give you both. These cables can last 20 to 30 years if used right. If you do not overload them, they last even longer. New PVC materials last the longest. Recycled PVC does not last as long, especially in hot places. You can use these cables behind walls, under floors, or in machines. They bend easily, so you can install them without trouble. This makes your work faster and keeps your system strong.
Tip: Always pick new, high-quality PVC insulated cables for the best results.
You want to save money and still get good quality. PVC insulated power cables are a great deal. They cost less than rubber or XLPE cables. You do not spend much to put them in because they are light and easy to use. You also save money on repairs because these cables last a long time. For example, if you wire a house with these cables, you spend less at the start and avoid many repairs later. You get good performance and safety for a low price. This makes them a top choice for homes, offices, and factories.
PVC insulated power cables give you strong insulation, good moisture and chemical resistance, fire safety, long life, and good value. You can trust these cables for most electrical jobs. They work well and help you save money.
You want your electrical system to be safe every day. Short circuits can cause damage or even start fires. PVC insulated power cables help stop these problems. The insulation is a strong wall between the metal core and other things that carry electricity. This wall keeps the current where it should go. It stops the current from jumping to other things.
PVC insulated cables keep the conductor safe from harm and stop leaks.
The insulation keeps the metal core away from things that carry electricity. This helps stop current from going the wrong way.
The insulation stops direct contact with things that could make a short circuit.
You can trust these cables to keep your system safe. Using them lowers the chance of electrical accidents. This is very important for safety in homes, schools, and factories.
Fire safety is important in all buildings. You need cables that slow down fire and do not make it worse. PVC insulated power cables help protect you and your things. They follow strict fire safety rules and do well in tests.
Here is a table that shows how these cables act in fire:
Observation | Description |
|---|---|
Fire Gas Yields | PVC-based electric copper wire makes more fire gases than pure polymers in the same test. |
CO2 Yields | PVC-insulated wire makes less CO2 in places with good air, which is safer. |
CO Yields | PVC-based wire can make more CO if air is low, so good airflow is needed. |
Hydrocarbon Yields | Light hydrocarbon levels stay about the same, so no extra irritants are made. |
HCl Emissions | HCl emissions stay steady, so use these cables where air can move easily. |
PVC insulated power cables help slow fire and limit bad gases. You should put these cables in places with good airflow. This keeps the air safer if there is a fire. You get better fire safety and more time to get out if needed.
You need to use cables that fit your system’s voltage. PVC insulated power cables are safe for low and medium voltage jobs. International rules, like IEC 60502, say these cables work well from 1 kV to 30 kV. Most homes and offices use cables rated at 600/1000V. This means you get steady power and good safety for daily use.
The IEC 60502-1 rule covers these cables and checks they are safe. You can use them for lights, outlets, and machines. You get safe and steady power for your building. This helps stop problems and keeps your electrical safety high.
PVC insulated power cables give strong protection from short circuits, fire, and voltage problems. You can count on these cables to keep many places safe.
You can use pvc insulated cables in many ways at home. These cables are good for wiring lights, outlets, and appliances. They are easy to put in because they bend and fit small spaces. Their fire-resistant features help keep your family safe. Many people pick these cables because safety rules say you need them. You also see them in smart homes. They connect things like sensors and smart switches.
Used for lighting circuits and power outlets
Connect appliances such as refrigerators and washing machines
Support smart home systems and IoT devices
Easy to install in walls, ceilings, and floors
Meet safety standards for home use
You see pvc insulated power cables in many work places and factories. These cables give power to lights, HVAC systems, and elevators in offices. In factories, they run big machines and other equipment. The pvc insulation keeps the cables safe from chemicals and damage. You also find them in mining, oil, and gas jobs. They work well in tough places. These cables help lower repair costs and make energy use better.
Power transmission and control systems in manufacturing plants
Used in robotic systems and conveyor belts in automotive factories
Withstand chemicals and mechanical stress in harsh environments
Reduce repair needs due to strong durability
Help save energy by minimizing power loss
You use pvc insulated cables outside and underground because they fight weather and water. These cables work well in gardens, parking lots, and tunnels under the ground. The table below shows important things to think about for these jobs:
Key Consideration | Description |
|---|---|
Temperature Resistance | Operate well in mild outdoor environments |
UV Resistance | Prevent damage from sunlight |
Moisture and Water Resistance | Stay reliable in wet underground areas |
Mechanical Durability | Handle physical stress from soil or outdoor use |
Fire Resistance | Slow down fire spread in strict safety zones |
Electrical Performance | Carry the needed load without failure |
You should always pick the right cable for your project. Think about voltage, how many cores you need, and if the cable bends easily.
Note: East Energy Electrical Engineering Co., Ltd. (4E) has many pvc insulated cables for all these uses. The company gives high-quality products and technical help for projects around the world. They follow strict rules and can make special cables for different jobs.
You can put pvc insulated power cables in place easily. These cables bend well, so you can fit them in small spaces. You can also move them around corners without trouble. You do not need special tools for most jobs. This makes your work quick and safe. You can use these cables at home, at work, or in factories. They are light, so you can carry them without much effort.
If you follow rules like IEC 60227, IEC 60332, and IEC 60754, your work will be safe. These rules help stop electrical problems and keep things working. Always check how you store the cables before you start. The table below shows how to store pvc insulated cables the right way:
Storage Condition | Recommendation |
|---|---|
Temperature | 5 to 30°C |
Relative Humidity | Should not go over 75% |
Storage Environment | Keep in a dry, airy warehouse, away from acids and other bad chemicals |
Sunlight Exposure | Do not let sunlight hit cables; paint windows white to protect them |
Stacking Height | Stack 5 to 10 rolls for small batches; stack 2 meters in spring/winter, 1.5 meters in summer/autumn for big batches |
Storage Period | Do not keep longer than 1.5 years; 2 years is the most |
Monitoring | Check temperature and humidity often; use drying packs if needed |
Tip: Be gentle with cables when you put them in. This keeps the insulation safe and your system working well.
You do not need to spend much time or money to keep pvc insulated power cables working. These cables last a long time if you take care of them. Here are some easy ways to keep your cables in good shape:
Look at cables often to find damage early.
Move cables gently so they do not get cut or bent.
Keep cables away from heat and water.
Test cables with special tools to check insulation.
Seal joints well so water cannot get inside.
You get lots of good things when you pick PVC insulated power cables for your work. These cables are very tough and keep electricity inside. They also help stop fires from spreading. The insulation keeps you safe from shocks. It also protects against water, chemicals, and sunlight. PVC cables do not cost much money. They last a long time and work well in homes, offices, and factories. That is why many people use PVC insulated cables for electrical jobs. They are simple to put in and can be used for many things. If you want good cables or need special help, East Energy Electrical Engineering Co., Ltd. (4E) in Yixing, China, has many safe cables and can help people all over the world.
You get strong insulation that keeps electricity inside the cable. This helps stop shocks and fires. PVC also resists water and chemicals, so your cables last longer in many places.
Yes, you can use these cables outside. The PVC sheath protects against rain, sunlight, and dirt. You should pick the right type for your outdoor project.
Most PVC insulated power cables last 20 to 30 years. You help them last longer by installing them carefully and checking them often for damage.
You can install these cables easily. They bend well and fit into small spaces. You do not need special tools for most jobs.
Yes. These cables follow strict rules like IEC and UL standards. You can trust them for safe use in homes, offices, and factories.
