Most failures in medium voltage systems are not caused by the cable itself, but by the accessories connected to it. This raises an important question: are cable accessories receiving the same level of attention as the cables they support?
In many projects, cable accessories are treated as secondary components. However, incorrect selection can result in insulation breakdown, overheating, and unexpected system outages, especially in 35kV applications where performance requirements are significantly higher.
In this article, we will examine how to select medium voltage cable accessories for 6kV to 35kV systems, with a strong emphasis on high-voltage conditions. The discussion covers product types, selection criteria, and the specific technical demands associated with 35kV systems.
● Medium voltage cable accessories are essential for safe and stable power transmission
● Main categories include terminations, joints, and separable connectors
● Selection must consider voltage level, cable type, and installation environment
● 35kV systems require enhanced insulation and stress control
● Improper selection can lead to serious system failures
● Heat shrink and cold shrink technologies differ in installation and performance
● Supplier capability directly affects long-term reliability

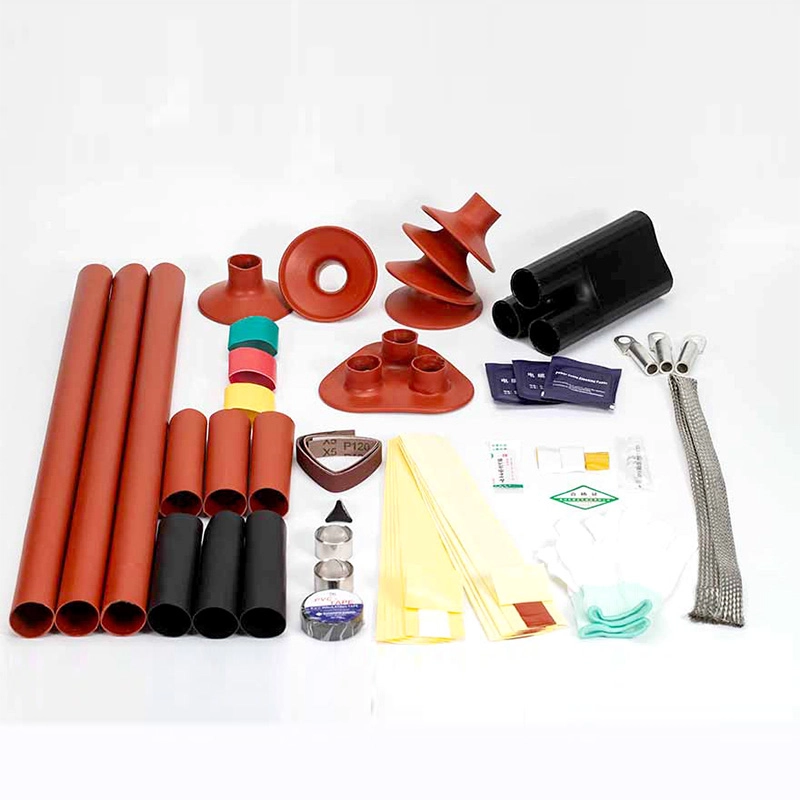

Cable terminations are used to connect medium voltage cables to electrical equipment such as transformers and switchgear. Their primary function is to manage the electric field at the cable end while providing reliable insulation and environmental protection. In indoor applications, terminations are designed for controlled environments, whereas outdoor terminations are engineered to resist moisture, ultraviolet radiation, and pollution. The structural design of terminations directly influences long-term system stability, particularly under fluctuating load conditions.
Cable joints are installed to connect two sections of medium voltage cable while maintaining electrical continuity and insulation integrity. Straight joints are commonly used for connecting identical cables, while transition joints are required when connecting cables with different constructions. The internal design of a joint must ensure uniform electric field distribution and proper shielding. Any inconsistency in installation or material quality can result in partial discharge or localized heating, which may lead to premature failure.
Separable connectors are widely used in medium voltage networks where flexible connections are required. These connectors allow equipment such as transformers and switchgear to be connected and disconnected without disturbing the entire system. Common designs include elbow connectors and T-connectors, both of which are used in compact and modular electrical systems. Their performance depends on precise insulation design and mechanical fit, ensuring safe operation under load conditions.
Voltage level is one of the most critical parameters when selecting cable accessories. As the voltage increases, the requirements for insulation thickness, electric field control, and material performance become more demanding. Accessories designed for lower voltage systems cannot be applied to higher voltage systems without risking failure. In 35kV applications, even small design deviations can result in significant operational risks due to higher electrical stress.
Voltage Level | Typical Application | Design Complexity |
6kV–11kV | Industrial systems | Moderate |
15kV–24kV | Urban distribution | High |
33kV–35kV | Substations / renewable energy | Very high |
Environmental conditions play a decisive role in the performance of cable accessories. High humidity can accelerate insulation degradation, while elevated temperatures can cause thermal aging of materials. Underground installations require additional mechanical protection to withstand soil pressure and moisture exposure. In outdoor environments, resistance to ultraviolet radiation and pollution becomes essential. The selection of materials and design must align with these conditions to ensure stable long-term operation.
Compatibility between the cable and its accessories is essential for system reliability. Accessories must match the cable type, whether it is XLPE or PILC, as well as the conductor size and insulation structure. In addition, compliance with standards such as IEC 60502 and IEEE specifications ensures that the accessories meet recognized safety and performance benchmarks. Failure to ensure compatibility can lead to insulation defects, improper stress distribution, and eventual system breakdown.
In 35kV systems, insulation performance becomes significantly more critical due to increased electrical stress. The insulation layer must be thicker and composed of materials with high dielectric strength to prevent breakdown under continuous operation. Any imperfections in insulation structure can create weak points where electrical stress concentrates, leading to gradual deterioration and eventual failure. The quality of insulation materials and manufacturing precision directly influence long-term reliability.
Electric Field Stress Control Technology Electric field distribution is a major concern in 35kV cable accessories. Without proper stress control, electric field concentration can occur at specific places especially at terminations and joints. This can lead to partial discharge, which gradually damages insulation materials. To address this issue, stress control tubes, cones, or advanced geometric designs are incorporated to ensure a smooth transition of the electric field. Accurate installation is also required to maintain the intended stress distribution.
Thermal performance becomes increasingly important at higher voltage levels, as higher loads generate more heat within the system. Cable accessories must be capable of withstanding continuous thermal stress without degrading. Poor thermal design can result in overheating, which accelerates material aging and reduces service life. Effective heat dissipation and stable material performance are necessary to maintain consistent operation under varying load conditions.
Parameter | ≤11kV Systems | 35kV Systems |
Insulation Thickness | Standard | Significantly higher |
Stress Control | Basic | Advanced |
Installation Precision | Moderate | Critical |
Failure Consequence | Limited impact | Severe system risk |
In industrial environments, medium voltage cable accessories are used to support continuous power supply for machinery and production systems. These applications often involve high load conditions and require stable performance over long operating periods. The reliability of accessories directly affects production continuity and equipment safety.
Urban power systems rely on medium voltage networks to distribute electricity efficiently across densely populated areas. Cable accessories are widely used in underground installations where space is limited and environmental conditions are complex. Their design must ensure both electrical performance and mechanical durability to maintain uninterrupted power supply.
Renewable energy projects such as solar farms and wind power installations increasingly rely on medium voltage systems, particularly in the 33kV to 35kV range. These systems require cable accessories that can handle long-distance transmission and varying environmental conditions. Stable performance is essential to ensure efficient energy collection and transmission.
Medium voltage cable accessories play a fundamental role in ensuring the safety, stability, and efficiency of power distribution systems. From standard terminations and joints to advanced 35kV solutions, each component must be carefully selected to match voltage levels, environmental conditions, and system requirements. The complexity of 35kV applications highlights the importance of high-quality insulation, precise stress control, and reliable thermal performance.
4e-energy provides a comprehensive range of medium voltage cable accessories designed for 6kV to 35kV systems. The products are engineered to meet international standards, with consistent performance, reliable material quality, and strong technical support to ensure stable operation across a wide range of applications.
Medium voltage cable accessories are typically used in systems ranging from 1kV to 35kV, with 6kV to 35kV being the most common range in industrial and utility applications.

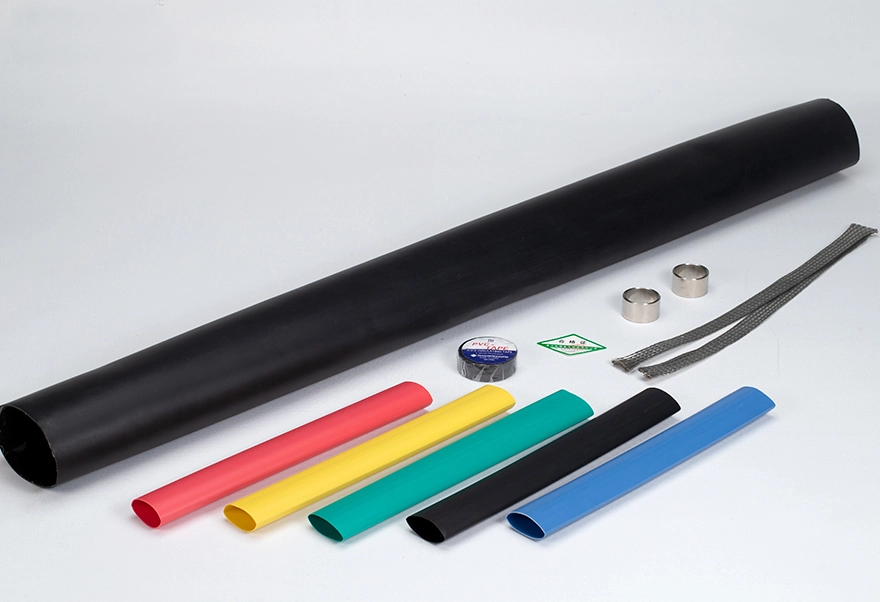

Heat shrink accessories require external heating to shrink the material during installation, while cold shrink accessories use pre-expanded elastic materials that contract automatically when installed.
Higher voltage levels result in increased electrical stress, requiring thicker insulation, advanced stress control, and improved thermal performance to ensure safe operation.
Cable accessories must match the specific cable type, including insulation material and structural design. Using incompatible accessories can lead to insulation failure and system instability.
Common standards include IEC 60502, IEEE specifications, and relevant national standards, all of which define performance and safety requirements for medium voltage systems.
