What if most medium voltage system failures are not caused by cables—but by the accessories connected to them? This often-overlooked factor can lead to unexpected outages, increased maintenance costs, and safety risks in both utility and industrial
environments.
While cables are built for long-term performance, overall system reliability depends heavily on the quality and suitability of cable accessories. Issues such as improper installation, material mismatch, or insufficient environmental protection can result in insulation failure or electrical discharge.
In this article, we will discuss the common types of medium voltage cable accessories and explore how their applications differ
between utility and industrial projects, focusing on practical selection and real-world conditions.
● Medium voltage cable accessories play a decisive role in overall system performance
● Different environments require different material properties and structural designs
● Utility applications emphasize durability, weather resistance, and long service life
● Industrial applications require compact solutions and installation flexibility
● Heat shrink and cold shrink technologies serve different operational needs
Cable terminations connect medium voltage cables to electrical equipment such as transformers, switchgear, and overhead lines. Their primary function is to manage electrical stress at the end of the cable while maintaining insulation integrity.
Modern cable terminations are designed with stress control technology that ensures even distribution of the electric field. Without proper stress control, localized field concentration can lead to partial discharge and eventual insulation failure. Terminations also serve as a protective barrier against environmental factors.
Outdoor terminations are typically equipped with weather-resistant materials and extended creepage distance to prevent surface tracking in polluted environments. Indoor terminations focus on compact structure and ease of installation, especially in switchgear cabinets or confined electrical rooms.
Cable joints are used to connect two sections of medium voltage cable, enabling network extension, repair, or modification. Their performance must match the original cable in terms of insulation, shielding, and mechanical protection.
A typical joint consists of conductor connectors, insulation layers, stress control components, and an outer protective sheath. These elements work together to restore the electrical and mechanical properties of the cable.
Straight-through joints are commonly used for connecting cables of the same type and size, while transition joints are applied when connecting different cable types, such as XLPE to PILC cables. Proper installation is critical, as any imperfection can lead to increased resistance, overheating, or insulation degradation over time.
Separable connectors provide a flexible solution for connecting medium voltage cables to equipment such as transformers and ring main units. Their design allows for easy connection and disconnection without interrupting the entire system.
These connectors are fully insulated and shielded, ensuring safe operation even in compact or enclosed environments. They are particularly useful in applications where system reconfiguration or maintenance is required.
The modular nature of separable connectors allows for quick replacement and reduced downtime. In modern distribution systems, they are widely used to improve operational flexibility and simplify maintenance procedures.
Accessory Type | Main Function | Typical Application | Key Feature |
Cable Terminations | Connect cable to equipment | Substations, transformers | Stress control & insulation |
Cable Joints | Connect two cable sections | Underground networks | Electrical continuity |
Separable Connectors | Enable plug-in connections | Switchgear, RMU systems | Flexible operation |
Utility systems are typically deployed in outdoor or underground environments where accessories are exposed to harsh and unpredictable conditions. These include high humidity, temperature fluctuations, pollution, and UV radiation.
In such conditions, the long-term stability of cable accessories becomes a primary concern. Materials must resist environmental degradation while maintaining insulation performance over extended periods. Any failure in a utility network can affect a large number of users, making reliability a critical requirement.

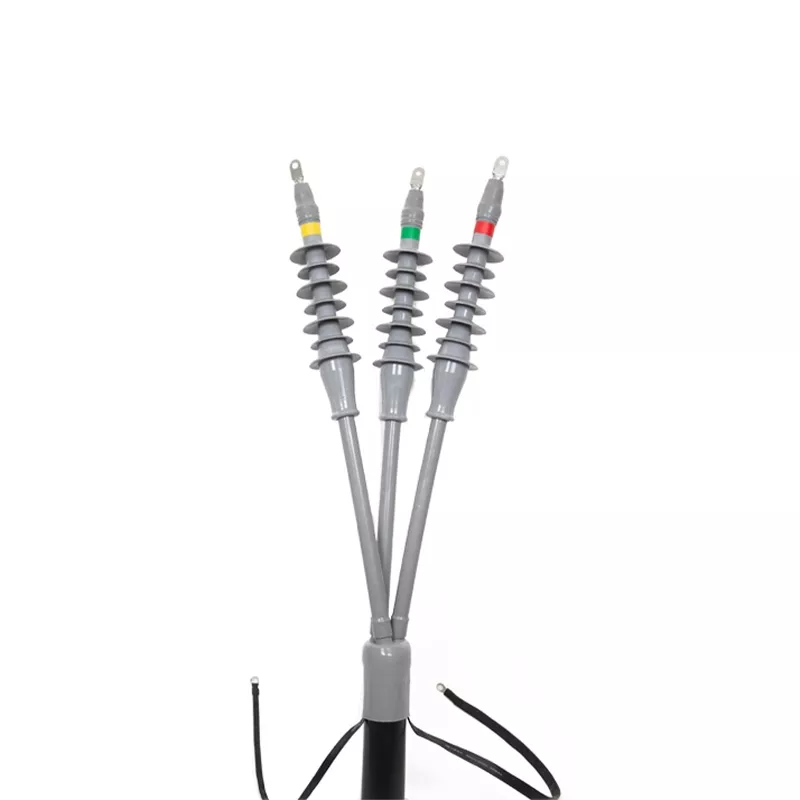

Cold shrink cable accessories are widely used in utility applications due to their consistent installation process and reliable performance. Since they do not require heat during installation, the risk of installation-related defects is reduced. This is especially important in remote locations where installation conditions may not be ideal.
Outdoor terminations used in utility systems are designed with enhanced insulation and longer creepage distances to prevent flashover under contaminated conditions. Cable joints must provide complete sealing to prevent water ingress, which is one of the most common causes of failure in underground cable systems.
Industrial environments present different challenges compared to utility systems. Facilities such as manufacturing plants, power stations, and data centers often have limited installation space and complex cable routing requirements.

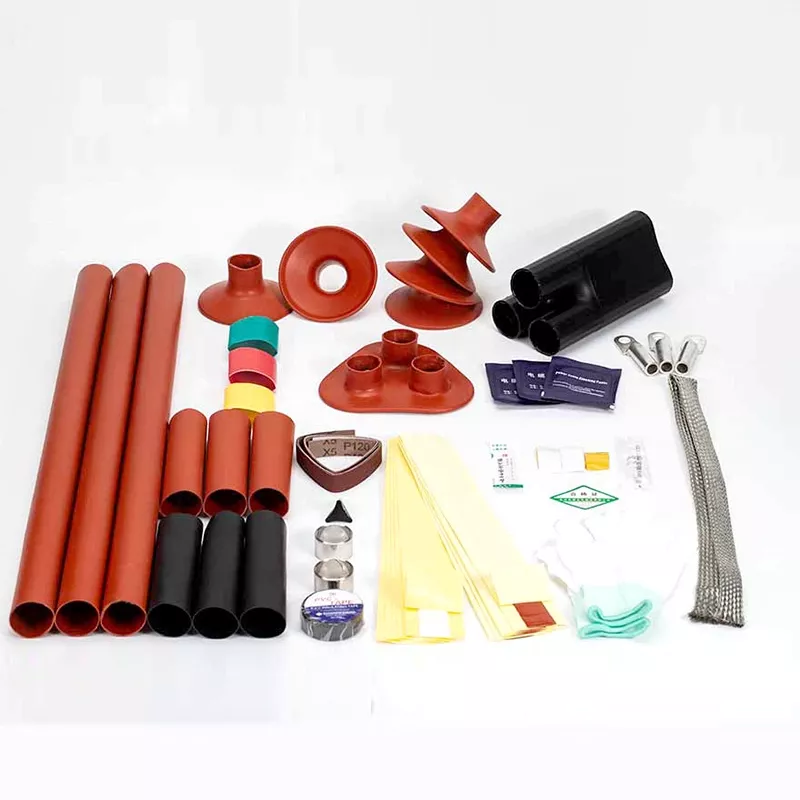

In these environments, cable accessories must be compact and adaptable. Installation may take place in confined spaces, requiring flexible materials and simplified procedures. Heat shrink cable accessories are commonly used because they can conform to irregular shapes and provide a tight fit.
Installation efficiency is also a key consideration in industrial projects. Downtime can directly impact production processes, so accessories that allow quick and reliable installation are often preferred.
In addition, industrial environments may expose cable accessories to mechanical stress, vibration, or chemical substances. Materials used in these accessories must be capable of maintaining performance under such conditions. Separable connectors are particularly valuable in industrial systems where frequent maintenance or system modification is required.
Factor | Utility Projects | Industrial Projects |
Environment | Outdoor, exposed to weather | Indoor or controlled environment |
Installation Condition | Open or remote locations | Limited space, complex layouts |
Priority | Long-term durability | Flexibility and efficiency |
Maintenance | Minimal intervention | Frequent adjustments possible |
Preferred Technology | Cold shrink | Heat shrink |
These differences influence not only the type of accessories selected but also the installation methods, maintenance strategies, and overall system design.
The selection process begins with ensuring that cable accessories are compatible with the system voltage level. Accessories must be rated appropriately to handle electrical stress without compromising insulation performance.
Compliance with standards such as IEC and IEEE ensures that the accessories meet recognized safety and performance requirements. These standards also provide guidance on testing and installation practices.
Environmental factors play a crucial role in determining the suitable type of cable accessories. Temperature extremes, moisture, UV exposure, and chemical presence can all affect material performance.
For outdoor installations, accessories must be resistant to weathering and contamination. In industrial environments, resistance to oils, chemicals, and mechanical impact is often required.
Installation conditions influence the choice between heat shrink and cold shrink technologies. Heat shrink accessories require controlled heating, while cold shrink products simplify installation by eliminating the need for external heat sources.
Maintenance requirements should also be considered. Accessories that allow easy inspection and replacement are more suitable for systems where frequent maintenance is expected.
Selecting accessories without considering environmental conditions can lead to premature failure. Exposure to moisture, UV radiation, or chemicals can degrade materials and compromise insulation.
Improper installation can create weak points in the system. Even high-quality accessories may fail if installation procedures are not followed correctly.
Ensuring compatibility between cables and accessories is essential. Mismatch in size, insulation type, or design can result in reduced performance and shorter service life.
Medium voltage cable accessories are essential components that directly impact the reliability, safety, and efficiency of power systems. Their role extends beyond simple connection, covering insulation management, environmental protection, and system stability. The differences between utility and industrial applications highlight the importance of selecting accessories based on actual operating conditions.
4e-energy provides a comprehensive range of medium voltage cable accessories designed to meet the demands of both utility and industrial projects. The product range includes high-performance terminations, durable cable joints, and flexible connection solutions engineered for reliability and ease of installation. With advanced insulation materials, stable performance, and professional technical support, these solutions are designed to meet diverse project requirements and support long-term system operation.
1. What are medium voltage cable accessories?
They are components such as terminations, joints, and connectors used to connect, insulate, and protect medium voltage cables.
2. What is the difference between heat shrink and cold shrink cable accessories?
Heat shrink accessories require heat for installation, while cold shrink products use pre-expanded materials that contract automatically.
3. Which cable accessories are suitable for outdoor utility projects?
Cold shrink accessories are widely used due to their strong resistance to environmental conditions.
4. How to select cable accessories for industrial applications?
Selection should consider space limitations, installation efficiency, and environmental resistance.
5. Why are cable accessories critical in medium voltage systems?
They maintain insulation integrity, ensure electrical continuity, and protect systems from operational and environmental risks.
