How to Choose Medium Voltage Cable Accessories for Reliable Grid Performance

Views: 97     Author: Site Editor     Publish Time: 2026-04-07      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Medium voltage cable accessories now play a far more critical role in grid reliability. In earlier network models, a joint or termination was often chosen late in the project, based mainly on voltage rating, cable size, and installation habit. Modern grids operate under very different conditions. Distributed generation, heavier feeder loading, frequent switching activity, underground expansion, and stricter outage targets have made accessory selection a technical decision that affects long-term performance. A poor choice can lead to thermal stress, moisture ingress, weak stress control, or partial discharge long before the cable reaches its design limit. A good choice preserves insulation strength, maintains stable current transfer, and supports dependable service across changing grid conditions.

Key Takeaway

● Reliable grid performance starts at the connection point.

●  Accessory selection should follow operating conditions, not catalog ratings alone.

●  Partial discharge resistance, thermal stability, and installation consistency deserve early review.

●  The best solution is the one that remains stable through real service duty.



Choose by Electrical Fit, Insulation Integrity, and Service Duty

Match the accessory to the network function

Selection should begin by identifying the exact role of the accessory in the circuit. A straight joint, outdoor termination, indoor termination, or separable connector faces a different stress pattern during service. The most reliable choice is the one designed for that exact connection point.

Confirm full compatibility with cable construction

Each accessory must match conductor size, insulation type, screen design, and voltage class. Even a small mismatch can disturb the electric field and weaken sealing performance. Compatibility should come from verified technical data rather than a general product label.

Evaluate electrical stress control under operating conditions

Rated voltage is only one part of the decision. Modern feeders face switching events, transient stress, and uneven field distribution near joints and terminations. Strong accessories manage these conditions through proper insulation geometry and stable stress control design.

Check thermal performance under continuous and cyclic load

Higher current raises conductor temperature and affects every interface inside the accessory. Repeated heating and cooling can loosen contact pressure, age insulation, and create local hotspots. A sound selection process should reflect actual load profile, overload risk, and thermal cycling behavior.

Prioritize resistance to partial discharge

Partial discharge often starts in voids, weak interfaces, or contaminated surfaces inside the insulation system. Once it begins, insulation erosion can grow slowly and then turn into failure. Accessories built for dielectric uniformity and low void risk offer a clear reliability advantage.

Consider installation consistency in the field

An accessory may perform well in the lab and still fail on site if installation depends too heavily on technique. Products that reduce preparation error, simplify positioning, and control critical dimensions usually create more consistent results across crews and locations. Field reliability often reflects installation repeatability as much as material quality.

The main selection checkpoints can be reviewed side by side before final product approval.

Selection factor

What to verify

Reliability impact

Network function

Joint, termination, connector, transition point

Correct stress design for the application

Cable compatibility

Voltage class, conductor range, insulation, screen

Reduces mismatch, sealing weakness, and field distortion

Electrical stress handling

Stress control method, insulation reconstruction

Lowers discharge and breakdown risk

Thermal performance

Load rating, cycling tolerance, interface stability

Limits overheating and early aging

Partial discharge resistance

Dielectric quality, void control, test performance

Protects insulation life

Installation consistency

Preparation tolerance, assembly simplicity, tooling needs

Improves field quality across crews



How Modern Grid Conditions Change Accessory Selection

Bidirectional power flow changes loading behavior

Solar plants, wind generation, and local energy assets can push current back into the same feeder. This creates more variable loading patterns than traditional one-way distribution networks. Accessories now need stronger electrical and thermal resilience across changing duty cycles.

Harmonics raise insulation and heating concerns

Power electronic converters introduce harmonic content into the network. Harmonics can increase dielectric stress, raise losses, and worsen local heating around interfaces. Accessories chosen for stable insulation behavior under distorted waveforms are better suited to modern grid conditions.

Aging networks now operate closer to design limits

Many cable routes were installed for older load assumptions. Grid expansion often increases current demand without full replacement of the cable system. In these cases, accessory performance becomes even more important because the connection point may see the highest combined stress.

Faster restoration targets leave less room for weak components

Utilities and industrial operators now work under tighter expectations for service continuity. Failures at joints and terminations can create long outage windows, difficult fault location work, and expensive repair activity. Accessory selection should therefore reflect operational risk, not only purchase cost.

 heat-shrinkable-cable-accessories

Compare Accessory Technologies by Reliability Profile

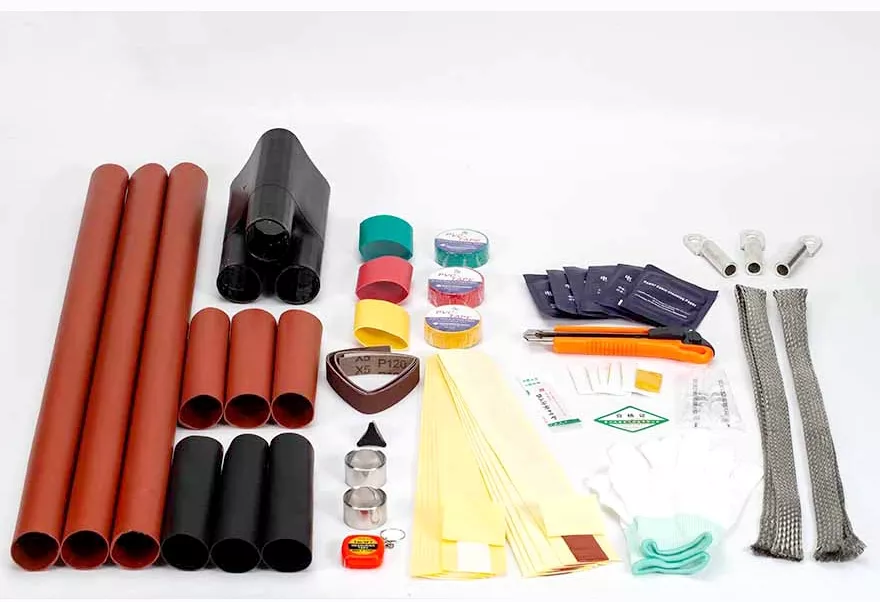

Heat shrink technology offers familiarity and broad application range

Heat shrink systems remain common in many medium voltage projects. They can perform well when installed by skilled technicians under controlled site conditions. Long-term quality depends heavily on correct heating practice, surface preparation, and uniform shrink behavior.

Cold shrink technology improves installation control

Cold shrink products remove the heating stage and reduce dependence on open-flame tools. This can support safer work in confined areas and produce more repeatable installation results. The technology often suits projects where speed, consistency, and site simplicity carry high value.

Pre-molded and liquid insulation systems focus on dielectric uniformity

These systems are often selected where insulation reconstruction and interface quality require very tight control. A well-designed molded or liquid insulation solution can limit void formation and support strong sealing performance. This makes the technology relevant in grids where partial discharge risk is a serious concern.

The right technology depends on service conditions, not habit

No single technology fits every network. A product should be compared on dielectric stability, thermal endurance, environmental sealing, and installation repeatability before any decision based on routine practice. Long-term grid performance depends more on fitness for duty than on familiarity in procurement.

A simple comparison shows why technology choice should follow application risk.

Technology type

Typical strength

Main selection concern

Best fit scenario

Heat shrink

Wide use and flexible application

Installation quality depends on heating control

Standard projects led by experienced crews

Cold shrink

Faster, cleaner installation

Product sizing and storage control still matter

Urban work, confined spaces, rapid restoration jobs

Pre-molded systems

Stable geometry and controlled stress design

Requires precise cable matching

High-reliability substations and critical feeders

Liquid insulation systems

Strong filling and sealing potential

Process control during installation is essential

Applications where void control is a major priority



Account for Environmental and Site Conditions Early

Underground wet zones demand strong sealing integrity

Water ingress remains one of the most common threats in buried cable systems. If moisture reaches sensitive insulation interfaces, long-term degradation can accelerate even when the circuit remains energized and stable. Accessories for these environments should provide durable sealing design and dependable barrier performance.

High-temperature locations need greater thermal margin

Dense cable trenches, substations, industrial plants, and compact underground chambers can trap heat. Elevated ambient temperature reduces the safety margin between normal operation and accelerated aging. Accessories used in these areas should be chosen for stable interface pressure and proven thermal endurance.

Polluted or coastal environments increase material stress

Salt, chemical exposure, dust, and industrial contamination can affect external surfaces and metal components. Outdoor terminations are especially exposed because surface condition influences leakage performance and long-term aging. Material quality, corrosion resistance, and surface design deserve close attention in these environments.

Tight retrofit spaces shape installation success

Legacy switchgear rooms, vaults, and upgrade projects often leave limited working clearance. A technically strong accessory can still become a poor choice if the site does not allow safe preparation and assembly. Physical dimensions, bending space, and installation sequence should therefore be reviewed before final product selection.

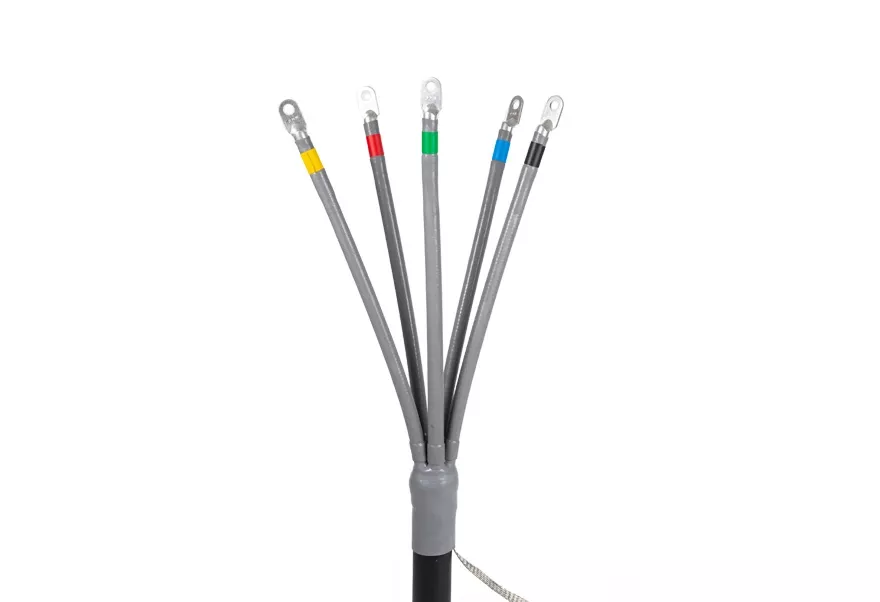

 Jiangsu-Dongfeng-Cable-Co-Ltd

Review Testing Evidence and Standards Before Approval

Type test data shows whether a design has been properly qualified

Qualification testing gives an early view of how the accessory performs under defined electrical and thermal stress. It is a necessary filter during vendor comparison and technical review. Buyers should confirm that the test scope matches the intended application rather than accept general claims.

Partial discharge performance deserves special attention

Partial discharge behavior is one of the clearest indicators of insulation quality inside the accessory system. Low discharge performance under test suggests better control of interfaces, materials, and field distribution. This area should be reviewed carefully for critical feeders, substations, and high-load circuits.

Thermal cycling results reveal long-term stability

A product may pass short-duration checks and still struggle after repeated expansion and contraction. Thermal cycling tests give insight into contact pressure retention, insulation stability, and sealing durability over time. Strong performance here often aligns better than simple catalog ratings during real service life.

Standards compliance is the baseline, not the full answer

Compliance confirms that the accessory meets accepted technical requirements. It does not automatically prove suitability for every site, cable type, or duty pattern. Final approval should combine standards review, test evidence, project conditions, and installation practicality.



Move from Specification to Final Product Selection in a Structured Way

Start from the cable system, not from the catalog

The process should begin by defining cable type, voltage level, load profile, installation environment, and connection point. This creates a technical boundary for product comparison and removes unsuitable options early. A clear starting specification reduces procurement risk and speeds up engineering review.

Narrow options by the main failure risks on the project

Some projects face high moisture exposure, some face heavy thermal cycling, and others face harmonic-rich operation. The accessory should be screened against the dominant risk rather than treated as a generic item. This approach leads to better choices in both utility and industrial networks.

Compare lifecycle stability instead of purchase price alone

A lower initial price can become expensive after outage cost, repair labor, and asset disruption enter the picture. Accessories sit at critical points in the network and often fail in ways that create difficult field recovery. Lifecycle thinking gives a more accurate view of total project cost.

Work with suppliers that can support design review and field application

Technical support during selection and installation improves the chance of a reliable result. Product guidance, compatibility checks, and field service experience can reduce error during both procurement and commissioning. Strong supplier support is especially useful in retrofit work, export projects, and mixed cable environments.



Conclusion

Choosing medium voltage cable accessories for reliable grid performance involves far more than checking voltage class and conductor size. The strongest decisions come from a broader review of cable design, operating stress, thermal duty, environmental exposure, partial discharge risk, and installation quality. When these factors are assessed together, joints, terminations, and connectors become reliability assets rather than weak points in the system.

For projects that require dependable medium and high voltage cable connections, East Energy Electrical Engineering Co., Ltd. (4E) offers practical value through cable accessories, cable system solutions, and technical service support. Its products are designed for demanding grid and industrial applications where insulation integrity, connection stability, and service consistency directly affect uptime. This combination of product capability, engineering focus, and project support can contribute to safer installation, stronger long-term performance, and more reliable network operation.



FAQ

What is the most important factor when choosing a medium voltage cable accessory?

There is no single factor in every case, but compatibility usually comes first. If the accessory does not match cable construction and application point, other product strengths lose value quickly. After compatibility, electrical stress control, thermal stability, and partial discharge resistance should guide the decision.

Are cable joints more failure-prone than the cable itself?

In many systems, joints and terminations carry higher failure risk than long cable sections. They contain interfaces, reconstructed insulation, and assembly steps that demand tight control. For this reason, selection and installation quality at these points deserve special attention.

Is cold shrink always better than heat shrink?

Cold shrink is not automatically better in every project. It often improves installation consistency and site safety, especially in confined areas, but final suitability still depends on cable design, environment, and service duty. The better choice is the one that fits the operating conditions and installation context.

Why is partial discharge such an important issue in medium voltage accessories?

Partial discharge signals localized insulation weakness inside the accessory system. Over time, it can erode insulation, grow into electrical treeing, and lead to failure. Products designed for strong dielectric uniformity and tested for low discharge performance usually provide greater long-term confidence.

Should buyers focus on standards compliance or field performance?

Both should be reviewed together. Standards compliance confirms a minimum technical foundation, while field performance reflects how the product behaves in real installation and service conditions. A good buying decision combines test data, project fit, installation practicality, and supplier support.
