Choosing the right medium voltage power cables is crucial for ensuring safety, efficiency, and longevity in electrical systems. These cables are key for grid reinforcement, renewable energy integration, and meeting growing energy demands. The combination of XLPE insulation and steel armoring is essential for optimal performance.
This article will guide you through these features, helping you make an informed choice when selecting the right cables for your needs. 4E offers high-quality cablesdesigned for maximum durability and performance. Learn more about our products for optimal energy transmission.
Before diving into the specifics of XLPE insulation and steel armoring, it’s important to understand what medium voltage power cables are and their role in energy transmission. These cables are the backbone of power distribution systems, carrying electricity from substations to end-users across industrial, commercial, and residential areas.
Medium voltage power cables are electrical cables specifically designed to transmit electricity at voltage levels ranging from 1kV to 35kV. These cables are essential in the power distribution network, linking the substations to consumers and businesses. They are integral to ensuring that electrical energy is transported efficiently and safely over long distances without significant losses, making them a key element of modern electrical infrastructure.
These cables are designed to handle a range of voltage levels and electrical demands, from urban power distribution to industrial applications, ensuring both reliability and efficiency across the grid.

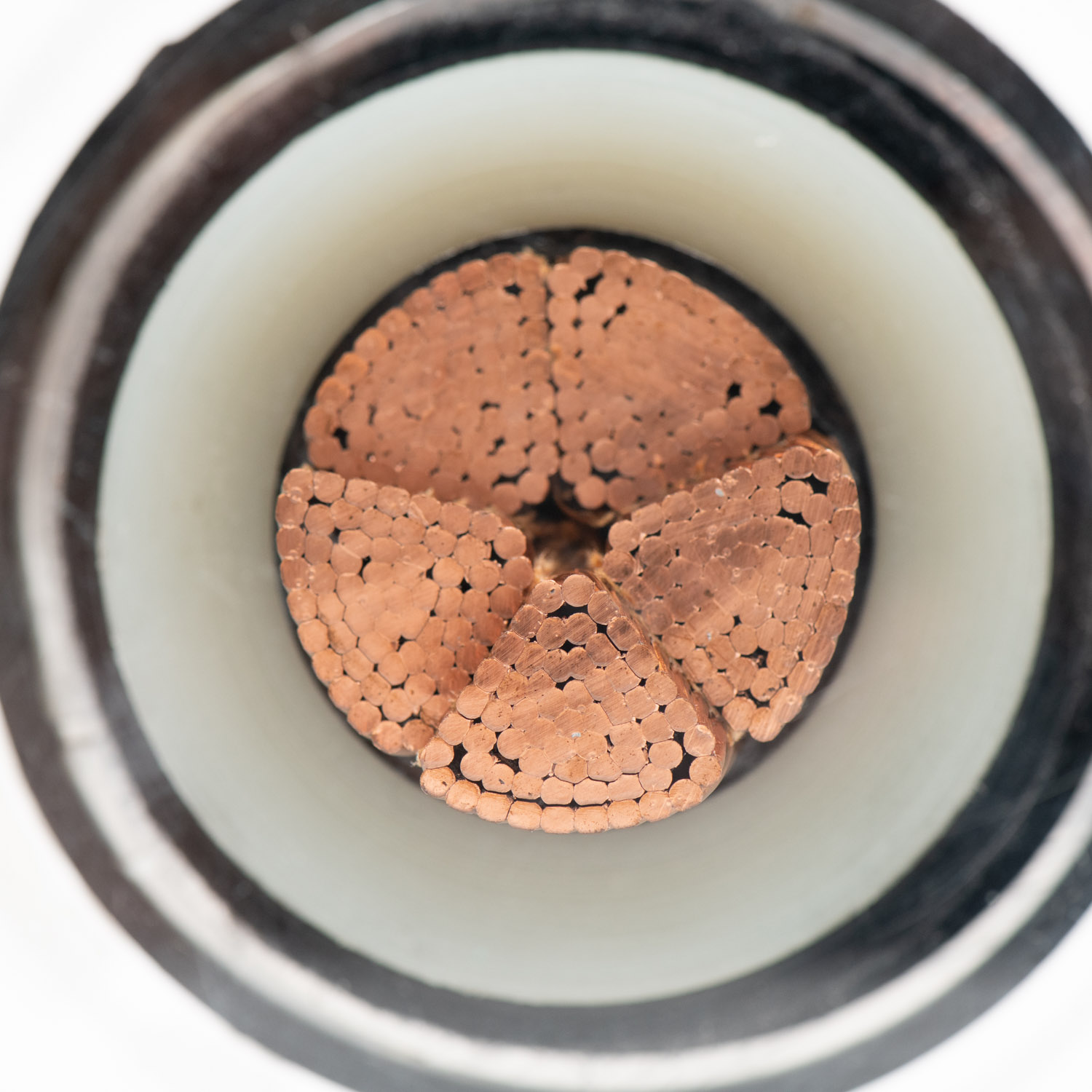

Medium voltage power cables consist of several essential components that ensure efficient, safe, and reliable operation.
● Conductor: Typically made from copper or aluminum, it carries the electrical current and ensures efficient energy transfer across the grid.
● Insulation: XLPE insulation prevents electrical leakage and protects against environmental factors. It provides excellent dielectric properties, thermal stability, and resistance to high voltages and temperatures.
● Steel Armoring & Sheath: Steel armoring offers mechanical protection, especially in underground or harsh environments. The sheath protects the cable from moisture, UV radiation, and corrosion, ensuring durability and long-term performance.
Component | Description |
Conductor | Typically made of copper or aluminum, carries the electrical current. |
Insulation | XLPE insulation protects against electrical leakage and environmental factors. |
Steel Armoring & Sheath | Steel armoring provides mechanical protection, sheath guards against moisture. |
Medium voltage cables are responsible for efficiently transferring electrical energy from substations to distribution points, ensuring power reaches various consumers while maintaining the reliability of the grid. The design of medium voltage cables ensures that energy loss is minimized and power is transmitted efficiently over long distances, especially in urban grids or industrial systems.
● XLPE insulation plays a vital role in preventing electrical faults by maintaining the integrity of the power transmission process. This insulation ensures that electrical stresses are managed efficiently without causing leakage or damage.
● Steel armoring ensures that the cables are protected from physical damage and are able to endure harsh installation conditions, whether they are installed underground or in high-risk industrial environments.
XLPE (cross-linked polyethylene) insulation is one of the most commonly used materials for medium voltage power cables, due to its excellent electrical, thermal, and mechanical properties.
XLPE insulation is a thermoset material created by cross-linking polyethylene molecules. This process enhances the material’s strength, durability, and thermal stability, making it ideal for power cables.
● High thermal resistance: XLPE insulation can operate continuously at temperatures up to 90°C and withstand short circuits up to 250°C.
● Electrical performance: XLPE provides superior dielectric properties, reducing energy loss and improving system efficiency.
● Chemical and moisture resistance: XLPE is highly resistant to chemicals, moisture, and environmental stress, making it ideal for underground installations.
● Industrial settings: For environments that require high-performance, durable power transmission.
● Renewable energy projects: XLPE is often used in renewable energy applications such as solar, wind, and hydroelectric plants.
● Urban power distribution: XLPE insulation provides long-lasting performance and reduces the frequency of cable replacements in city infrastructures.
Benefit | Description |
High Thermal Resistance | Operates up to 90°C continuously and withstands short circuits up to 250°C. |
Electrical Performance | Superior dielectric properties, reducing energy loss and improving system efficiency. |
Chemical and Moisture Resistance | Highly resistant to environmental stress, moisture, and chemicals, ideal for underground installations. |
Steel armoring adds a layer of mechanical protection to medium voltage power cables, ensuring their durability and resistance to physical damage.
Steel armoring involves wrapping steel wires or steel tape around the cable to provide extra protection. This is especially crucial for cables buried underground or in areas subject to physical stress.
● Mechanical protection: Steel armoring prevents damage from crushing, impact, or rodent attacks, which is critical for underground installations.
● Grounding and safety: Steel armoring can be grounded, offering additional protection in case of electrical faults and reducing electrocution risks.
● Steel wire armor: Provides robust protection for cables in high-risk areas, often used for heavy-duty applications.
● Steel tape armor: Offers a more flexible and cost-effective solution, suitable for installations with lower mechanical stress.
● Direct burial: Steel-armored cables can be safely buried without requiring additional conduit.
● Industrial environments: Ideal for environments with high physical activity or heavy machinery that could damage cables.
● Submarine installations: Steel armoring is crucial for submarine cables, protecting them from underwater pressures and potential external damage.
Type | Description |
Steel Wire Armor | Offers robust protection for high-risk areas, often used for heavy-duty applications. |
Steel Tape Armor | A more flexible and cost-effective solution for areas with lower mechanical stress. |
The combination of XLPE insulation and steel armoring provides a comprehensive solution for medium voltage power cables, offering both electrical performance and mechanical durability.
● Electrical and mechanical protection: XLPE insulation ensures reliable electrical transmission, while steel armoring safeguards the cables from external physical forces.
● Longer lifespan: Together, these features enhance the cable’s durability, reducing the need for replacements or repairs.
● Reliability in demanding environments: This combination is ideal for applications such as underground power distribution and industrial settings, where both electrical performance and physical protection are necessary.
● Renewable energy projects: Perfect for transmitting power from remote renewable energy sources, such as wind farms or solar installations.
● Underground power distribution: Suitable for urban infrastructure where space is limited.
● Industrial applications: Ensures a stable, high-performance power supply to critical operations.
Choosing the right medium voltage power cables ensures that your power transmission system remains safe, efficient, and reliable.
Ensure that the voltage rating of the cables matches your system’s power requirements. For medium voltage cables, the rating should typically fall within the 1kV to 35kV range, depending on the system’s needs.
● Underground installations: Choose cables with steel armoring and moisture-resistant insulation.
● Overhead installations: Ensure the cables have sufficient UV resistance and mechanical strength to handle environmental exposure.
Make sure the medium voltage cables meet all relevant industry standards like IEC and IEEE, ensuring safety and performance.
When selecting medium voltage power cables, cost plays a key role, but it should never compromise safety or performance.
● Underground cables may have higher installation costs but often result in lower maintenance costs over time.
● Overhead cables are generally less expensive to install but may require more frequent maintenance due to environmental exposure.
Choosing high-quality cables with XLPE insulation and steel armoring ensures long-lasting durability, reducing the need for replacements and decreasing maintenance costs in the long run.
As power transmission technology evolves, medium voltage power cables are also improving to meet the future needs of energy systems.
Future innovations in medium voltage cables may include superconducting cables, improved insulation materials, and more efficient designs that reduce energy loss even further.
As smart grids evolve, medium voltage cables will play a key role in enabling real-time energy management and optimizing power distribution. These cables will ensure that electricity can be distributed efficiently, even with the integration of intermittent renewable energy sources.
To future-proof your power system, invest in medium voltage power cables that are compatible with smart grid technologies, ensuring your infrastructure can adapt to evolving energy needs.
Medium voltage power cables with XLPE insulation and steel armoring provide the perfect combination of electrical performance and mechanical protection. These cables are essential for renewable energy integration, underground power distribution, and industrial power systems. By considering factors such as voltage rating, environmental conditions, and industry standards, you can ensure the safety and efficiency of your grid infrastructure. 4E offers reliable and durable cable solutions to meet your specific energy transmission needs.
A: XLPE insulation is a thermoset polymer used in medium voltage power cables. It provides excellent dielectric strength, thermal stability, and resistance to high voltages, making it ideal for efficient power transmission.
A: Steel armoring provides mechanical protection for medium voltage power cables, preventing damage from physical impacts, pressure, and external stress, especially in underground installations or areas with high risk of damage.
A: XLPE insulated cables offer superior electrical properties, higher thermal resistance, and reduced power loss, ensuring better performance and long-term efficiency in medium voltage applications.
A: Steel armoring is used in medium voltage power cables for applications requiring extra protection, such as underground installations, industrial environments, and offshore power transmission.
