A cable accessories production line setup succeeds when it is designed around the cable interfaces it must control. Joints and terminations are not generic plastic-and-metal assemblies: they manage electrical stress, insulation continuity, screen continuity, sealing, mechanical retention, and field installation. A line that produces consistent parts therefore needs a defined cable range, controlled component interfaces, approved materials, capable tooling, and inspection that follows the process rather than appearing only at final packing. This article gives new manufacturers a practical framework for launching a line for joints and terminations without confusing a machine list with a manufacturing system.
Fix the voltage class, cable construction, installation environment, and product technology before selecting machines or molds.
Build the line around controlled component flow, not around isolated equipment stations.
Separate product development, routine production control, and formal qualification; each needs different evidence.
Choose automation after the manual or semi-automatic process is stable enough to automate well.
Use a representative pilot family to prove material, tooling, work instructions, inspection, packing, and installation support together.
The phrase cable accessories production line setup can describe very different operations. A line for heat-shrink kits may center on cut lengths, adhesive or mastics, breakout parts, printed identification, connector options, and packing accuracy. A line for cold-shrink termination production can depend on elastomeric bodies, support cores, expansion processes, stress-control geometry, and protection of clean interfaces. A line for mechanical cable joints may need precise connectors, torque-controlled assembly, screen and sealing components, and a different set of fixtures.
Begin with a product platform sheet for every proposed family. Identify the rated voltage range, cable insulation type, conductor options, screen construction, cable diameters, indoor or outdoor use, connection interface, environmental requirements, installation sequence, and kit contents. Then identify the dimensions and characteristics that are critical to fit and electrical performance. This makes quotations comparable because each supplier is being asked to support the same process.
Medium-voltage products deserve particular discipline. 4E’s medium-voltage cable accessories cover the 6 kV to 35 kV range and include cold-shrink and heat-shrink technologies for connection to switchgear, transformers, and overhead lines. A new line should avoid claiming universal coverage merely because it can assemble a sleeve or connector. It must show that the released configuration fits the intended cable and installation conditions.
An effective production flow begins at material receipt and ends when a correctly identified, inspectable kit is ready for dispatch. Each step should have a purpose, an owner, a status, and a record. The basic sequence is usually receipt and quarantine, incoming inspection, approved storage, component preparation, subassembly, main assembly, in-process inspection, final inspection or routine test, packing, finished-goods release, and dispatch.
That sequence should be adapted rather than copied. Elastomeric parts need protection from contamination and physical distortion. Semi-conductive components should not be confused with insulating components. Connector families need clear segregation by size and design. Adhesives, mastics, tapes, or cleaning materials may require shelf-life and lot controls. Small components can cause a complete kit failure when their identification and picking process are weak.
The layout should make the correct route easier than the incorrect route. Place approved materials near the point of use, but do not lose their status identity. Give in-process material a defined home. Use dedicated racks or containers for rejected and hold material. Provide enough bench space for an operator to lay out a kit without mixing parts. If parts are weighed, scanned, or counted, make the check part of the normal flow instead of a separate paperwork task at the end of the shift.
General-purpose equipment may include material-storage systems, benches, lighting, measuring tools, printers, packing equipment, lifting aids, and safe electrical test arrangements. Product-specific equipment may include molds, injection machines, expansion tools, cutting equipment, controlled heating equipment, dispensing systems, crimp presses, torque tools, fixtures, gauges, and dedicated test adapters. The second category is usually where a line gains or loses repeatability.
For cable termination manufacturing, tooling should locate the product by functional surfaces rather than by convenient cosmetic edges. A fixture that holds a stress-control component incorrectly but consistently is not a good fixture. Require a tooling acceptance procedure that includes the released component drawings, measurement points, operating instructions, safe operation, maintenance needs, and a sample run using intended materials.
For a cable joint production line, connector handling is equally important. The factory should identify the connector design, cable conductor range, tooling interface, crimp or tightening method, inspection criteria, and record method. If a torque-controlled connection is part of the design, the tool’s control and the response to an abnormal result must be clear. If compression is used, the die identification and crimp sequence must be protected against mix-up.
There is no universal winner among the principal technologies. Heat-shrink systems can be well suited to a kit-based process and may use heat application during installation. Cold-shrink systems use a pre-expanded elastomeric body and a removable support core, allowing installation without a heat source. Molded or pre-molded systems can offer controlled geometry but require close control of materials and interfaces. The right route follows the intended cable, operating environment, installer practice, and validation plan.
Technology route | Production focus | Installation implication | Line-planning question |
|---|---|---|---|
Heat shrink | Supplied tubing and components, cut accuracy, compatible kit contents, controlled printing and packing | Heat is applied in the field | How will the kit control correct sequence, overlap, and accessory selection? |
Cold shrink | Elastomeric body, support-core system, interface cleanliness, geometry, packaging protection | Support core is removed without field heating | Can the plant protect and verify the pre-expanded body throughout handling and packing? |
Pre-molded or molded | Mold design, material preparation, process control, interface dimensions, post-processing | Product-specific installation steps | Are the mold, material, and test controls mature enough for the intended voltage range? |
4E’s cold-shrink accessory range identifies indoor terminations, outdoor terminations, and middle joints. It also describes a prefabricated body with an integrated stress cone and insulating body. For a manufacturer, that construction is a reminder that the assembly flow must preserve the functional relationship between those elements; it is not enough to count components at packing.
Every workstation should answer four questions: what enters, what work occurs, what proves the work is acceptable, and what leaves. This simple discipline helps prevent hidden quality assumptions. For example, a component-preparation station may receive a lot-controlled molded body, confirm its part number and visual condition, apply a defined operation with a validated fixture, record the inspection result, and transfer it in a protected tray to the next station.
Work instructions should use the actual production sequence and the actual fixtures. They should show the orientation, permitted materials, accepted condition, known defect examples, and action if something is abnormal. Ambiguous instructions such as “assemble carefully” do not create a repeatable line. Operators need the information that affects a real decision: where the part should sit, what tool should be used, what value or appearance is acceptable, and when to stop production.
Consider ergonomic and quality consequences together. A component that must be held in position while another part is fitted may need a simple locating fixture. A task requiring visual inspection may need appropriate lighting and magnification. A heavy cable-joint component may need a lifting or handling aid. Better station design reduces both physical strain and variation.
Routine inspection is most useful when it verifies the characteristic at the point where it can still be corrected. Incoming inspection confirms the material identity, condition, and agreed checks. In-process inspection confirms positioning, dimensions, tool settings, or assembly completion. Final inspection confirms the finished configuration, documentation, marking, and packing. A final test cannot reliably recover from a missing, damaged, or incorrectly located component that should have been caught earlier.
The exact test plan comes from the applicable product requirements and customer specifications. A new manufacturer should distinguish development tests, routine tests, and type tests. Development work establishes or refines a design; routine checks provide production evidence; formal type testing investigates performance under a defined standard. This separation helps the budget because the plant does not need to duplicate every specialist laboratory function before it can control routine production. It does need access to the correct evidence before it makes a claim.
Use calibrated instruments and maintain a simple, visible calibration-status system. A measurement has limited value if the factory cannot show which instrument was used, whether it was suitable, and whether the result is tied to the product record. The same principle applies to test fixtures. Protect their identity, revision, and condition.
Run pilot builds before accepting commercial volume. Select representative products at the demanding end of the intended range, not only the easiest configuration. Use the intended material lots, normal operators, released work instructions, normal tooling, approved packaging, and routine inspection records. Observe whether operators can follow the work without undocumented expertise and whether components arrive at each station in the expected condition.
Pilot output should feed a structured review. Analyze defects by process step, correct the cause, update controlled documents if necessary, and repeat the confirmation build. Review material loss, cycle time, changeover time, packing errors, test exceptions, and rework. This information is more useful to a start-up than an optimistic theoretical capacity figure.

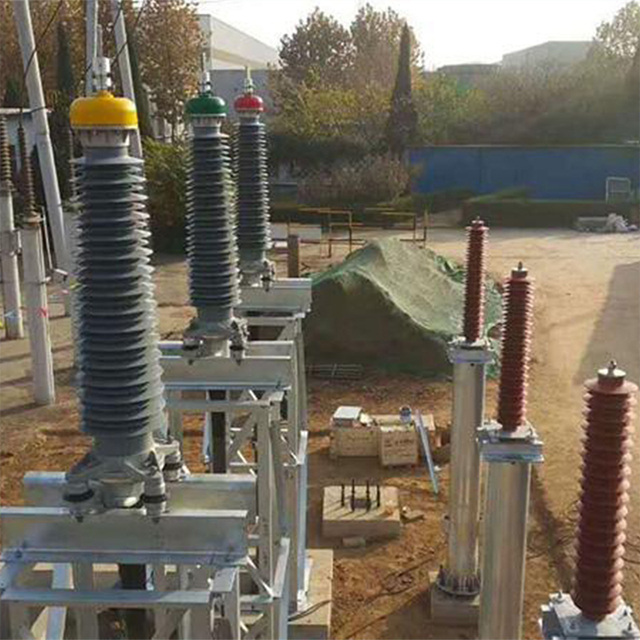

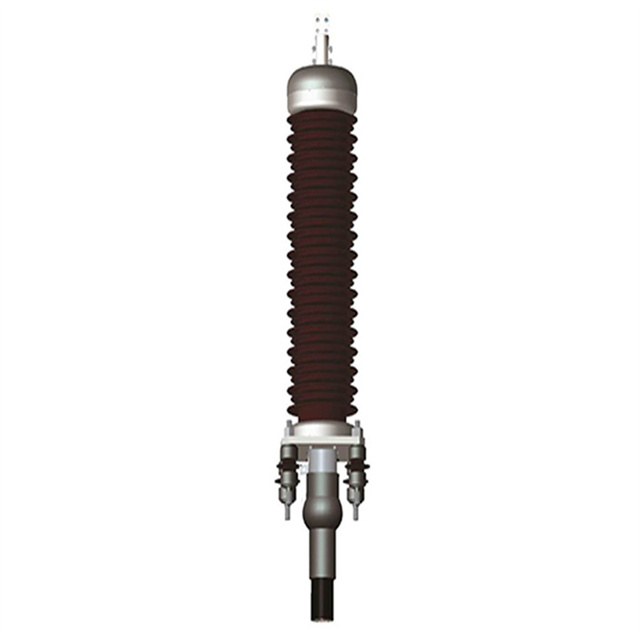

Installation feedback should be included where possible. Terminations and joints are ultimately installed on cables, so a kit that is easy to pack but difficult to apply can create field failure or dissatisfaction. The cable terminations range includes heat-shrink, cold-shrink, and molded options, reinforcing the need to match the factory’s production scope with the installation experience it is supporting.
A production line needs more than operators. Assign responsibility for production release, incoming inspection, in-process checks, final release, maintenance, material control, document control, and customer feedback. In a small factory one person may hold several roles, but the decision rights should remain explicit.
Training should be product and station specific. It should cover why a characteristic matters as well as how to perform the step. When people understand that a clean interface, correct component orientation, or protected support core affects product performance, they are better able to recognize abnormal conditions. Confirm competence with observed work and retained evidence rather than relying only on attendance sheets.
Document control protects the line during change. A product update, supplier substitution, mold modification, or revised installation instruction should pass through a defined review before use. Otherwise an apparently minor change can disconnect the released sample from the production version. New manufacturers often gain more from disciplined revision control than from an expensive software purchase; the process should be simple enough to use every day.
Capacity expansion should follow real constraints. If output is limited by changeover, improve product-family grouping or quick-change fixtures. If defects arise at one operation, stabilize that station before adding parallel equipment. If packing errors drive complaints, improve picking verification before investing in faster assembly. A balanced line is more valuable than a collection of fast machines separated by queues.
Keep process capability, supplier performance, scrap causes, customer feedback, and change history visible as the business grows. This makes the decision to bring a component in-house, automate a task, or expand the test area evidence-based. 4E can be a useful partner when a manufacturer needs to connect line planning with a wider factory-construction and product-supply approach.
The right cable accessories production line setup begins by defining what the joint or termination must do on a real cable. From there, the factory can create a coherent flow of approved materials, functional tooling, clear workstations, in-process verification, and controlled release. The most durable launch strategy is rarely the one with the longest equipment list. It is the one that proves a limited product family consistently, learns from pilot builds, and expands only after the process and evidence are ready.
Start with a limited family that shares materials, tooling, cable ranges, and inspection methods. A focused initial range makes it easier to qualify operators, manage stock, and learn the true process risks before adding variants.
No. Semi-automatic stations with good fixtures, controlled tools, and meaningful checks can be an effective starting point. Automation should address a proven need for repeatability, capacity, or safety after the underlying process is stable.
Define the part specification, approved supplier, incoming inspection, storage condition, lot traceability, and release criteria. A purchased part becomes part of the manufacturer’s quality responsibility once it enters the kit.
It may, if the product configurations, materials, tooling, and packing controls are clear. The factory must prevent mix-up and verify the features that distinguish the indoor and outdoor versions.
A pilot build tests the whole system: materials, people, equipment, instructions, inspection, packaging, and records. It exposes gaps that are hard to see when individual machines are evaluated separately.
Add capability when it improves routine control, speeds development, or supports recurring customer needs. Specialist tests can be outsourced initially, but the factory must still control samples, specifications, records, and acceptance decisions.
