Why Steel-Wire Armored Power Cables Are Ideal for Harsh Industrial and Outdoor Environments

You want your power cables to last in hard places. Steel-wire armored power cables protect against damage. These cables can handle many dangers in factories and outside. For example, very hot or cold weather can make regular cables weak. Wet conditions can cause the inside of cables to rust. Chemicals can break the insulation. UV rays can make cables weak and easy to snap.

You can trust these cables to last, stay safe, and save money in tough places.

Key Takeaways

• Steel-wire armored power cables give strong protection from damage in tough places. These cables can handle very hot or cold temperatures. They also resist water, chemicals, and sunlight. This helps them last a long time. Using armored cables can help save money over time. They are strong and do not need to be replaced often. Armored cables work well in factories, outside, and underground. They are best where safety and trust are very important. You should always ask an expert to pick the right cable for your project.

What Are Steel-Wire Armored Power Cables

Structure and Key Components

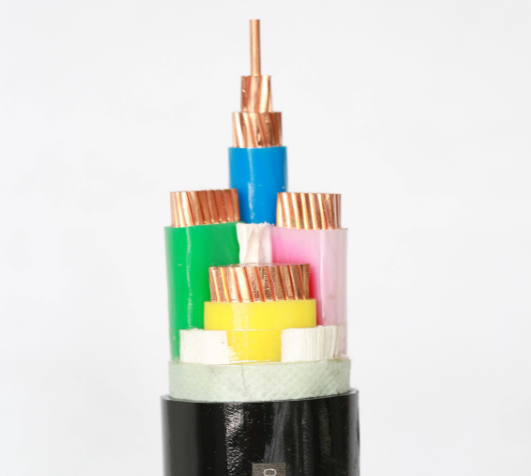

Steel-wire armored power cables are used where strength is important. These cables have many layers. Each layer does something special. The conductor is in the middle. It carries electricity. This part is made from copper or aluminum. The insulation goes around the conductor. It keeps electricity inside the cable. It also keeps people safe. XLPE or PVC is often used for insulation because they can handle heat.

The bedding layer is between the insulation and the armor. It makes a smooth surface. It also stops rubbing that can damage the cable. The armor layer is made of galvanized steel wires. This layer protects the cable from getting hurt. The outer sheath covers all the layers. It keeps out water, chemicals, and UV rays.

Here is a table that shows the main parts and what they do:

How Armoring Provides Protection

You want your cables to last in hard places. The steel-wire armor works like a shield. It spreads out hits and bumps. This keeps the inside parts safe. If you put cables underground or near big machines, the armor stops them from getting crushed.

Tip: Steel-wire armored power cables are good for places with lots of bumps and pressure. The armor keeps the cable safe from sharp things, heavy stuff, and rough use.

Mechanical protection is the main reason people pick these cables for tough places. The armor keeps the insulation and conductor safe. This helps the cable last longer and work well.

Key Benefits of Armored Cable

Mechanical Strength and Durability

You need cables that can do hard work. Armoured cables are strong and protect against crushing and impacts. The steel wires act like armor and keep the inside safe. Heavy machines, falling tools, or rodents cannot easily hurt these cables. Using these cables in construction or busy factories lowers the chance of damage. This helps stop power failures.

Tests show armoured cables with steel wire armor are tough. They resist impacts and being crushed better than non-armored cables. Steel tape armor helps stop crushing. Steel wire armor gives strong pull resistance. Non-armored cables only have an outer sheath for protection. This makes them easier to damage. They are less reliable in harsh places.

You want cables that last a long time. XLPE-insulated armoured cables can last over 30 years. They work well even in tough places. PVC armoured cables usually last about 20 years. This means you do not need to replace cables often. It saves you money and time.

Environmental Resistance

Harsh places bring many problems. Armoured cables can handle high heat, humidity, and chemicals. You can use them in chemical plants, basements, or underground. The metal armor and outer sheath keep out water, acid, and alkali. This helps the cable work in rain, snow, or sunlight.

Flexible armored cables are good for direct burial. They resist soil moisture and pests like rodents. Special materials help these cables work when the weather changes fast. You can trust these cables for power in outdoor, underground, and offshore places.

Here is a table of common standards that show how armoured cables resist the environment:

Safety and Compliance

You want your workplace to be safe. Armoured cables help you follow safety rules. These cables meet strict standards like BS 5467, BS 6724, BS 6622, AS/NZS 5000.1, and IEC/EN 60502-1. These rules make sure the cables are safe for factories and construction sites.

Flexible armored cables also lower electrical interference. The steel armor blocks low-frequency interference. Steel has high magnetic permeability. This means you get better safety and power transmission. Other machines nearby will not cause problems.

Here is a table of safety standards for armoured cables:

Note: Armoured cables give better protection against accidents and electrical faults. You can use them where safety is very important.

Steel-wire armored power cables give you many benefits. They are strong, resist the environment, and are safer. You can trust them for power in the toughest places.

Armoured Cables vs Non-Armored Cables

Durability and Longevity

You want your cables to last a long time. This is important in tough places. Armoured cables have a metal layer around the wires. This metal layer keeps water out. It also stops damage from bumps or being crushed. Non-armored cables do not have this metal shield. They are better for safe, indoor places where nothing can hurt them.

Here are the main ways these cables are different:

• Armoured cables have a strong metal layer for safety.

• Non-armored cables only have an outside cover, so they break easier.

• Armoured cables follow strict safety rules for hard places.

• Non-armored cables work well where there is little danger.

Armoured cables cost more to put in and take care of. The table below shows how much each type costs:

Armoured cables cost more at first. But they can save you money later. They last longer and do not break as much. For example, after 20 years, armoured cables can cost less than non-armored cables. This is because you do not need to replace them as often.

Safety and Application Differences

You need to think about safety when you pick a cable. Armoured cables are safer because the metal layer protects them. It stops cuts, crushing, and even rodents. This makes them great for underground, outdoor, or factory use. Non-armored cables do not have this extra layer. They are best for safe, indoor places.

The table below shows how these cables are not the same:

You should use armoured cables where there is a high chance of damage. These places include construction sites, tunnels, and areas with lots of machines. Armoured cable is also best for places with chemicals or where cables might get crushed. You can feel sure your power will stay on and safe.

Applications of Steel-Wire Armored Power Cables

Industrial and Construction Sites

Armoured cables are used in busy factories and building sites. These places have big machines, moving trucks, and many workers. The cables connect large machines and handle strong shaking. In warehouses, they give power to lights and forklift chargers. People use them as temporary power lines at building sites. They keep working even in the rain or if heavy tools fall on them. In office buildings, these cables bring power from underground to every floor. The armor layer works like a shield. It stops bumps and crushing. This helps prevent power loss and keeps electricity steady.

Tip: Armoured cables stop project delays by blocking damage from forklifts, falling things, and even rodents.

Underground and Outdoor Installations

You need tough cables for work underground and outside. Cables here face dirt pressure, water, and pests. Steel-wire armored power cables are made for burying in the ground. The armor layer protects from crushing, tearing, and animal bites. The outer sheath keeps out water and chemicals. These cables work well in wet places and bad weather. You can trust them to keep power safe and steady in hard places. They also follow strict safety rules, so your setup is safe.

Offshore and Corrosive Environments

Places near the sea and chemical plants are extra hard for cables. Saltwater, strong wind, and chemicals can hurt normal cables. Armoured cables use strong steel wire for the armor layer. This gives them good pull strength and stops damage from hits. The outer sheath is made from weather-proof materials. It blocks water and harmful chemicals. You can use these cables on oil rigs, docks, or by the ocean. They keep power steady, even in the toughest places. You can bury them in the ground or use them where there is acid or alkali.

• Armored cable fights off wet dirt and acid-alkali damage.

• The steel wire armor gives strong pull strength for sea jobs.

• The weather-proof sheath keeps out bad weather.

Steel-wire armored power cables give safe, long-lasting power in places where other cables break. You can trust them for any hard job.

Steel-wire armored power cables keep your power safe in hard places. They last a long time and do not break easily. You spend less money because you do not need to fix or replace them often.

• These cables are strong and protect wires underground and outside.

• They work well when it is wet, near chemicals, or when things shake a lot.

• You can count on them to keep your power safe for many years.

For the best results, ask an expert to help you pick the right cable for your project.

FAQ

What makes steel-wire armored cables different from regular cables?

Steel-wire armored cables have a strong metal layer. This layer protects the wires inside from crushing, water, and sharp objects. You can use them in places where regular cables would break or wear out quickly.

Can you use steel-wire armored cables outdoors?

Yes, you can use these cables outdoors. The armor and outer sheath protect against rain, sunlight, and temperature changes. You get safe and steady power even in tough weather.

Are steel-wire armored cables safe for underground use?

You can safely bury these cables underground. The steel armor stops crushing and keeps out water and pests. You do not need extra protection for most underground jobs.

Do steel-wire armored cables cost more than non-armored cables?

Armored cables usually cost more at first. You save money over time because you do not need to replace or repair them as often. They last longer in harsh places.
